6.11 Adapter Stripper Bars and Feed Deflectors
6.11.1 Removing Stripper Bars
1014035
B
A
A

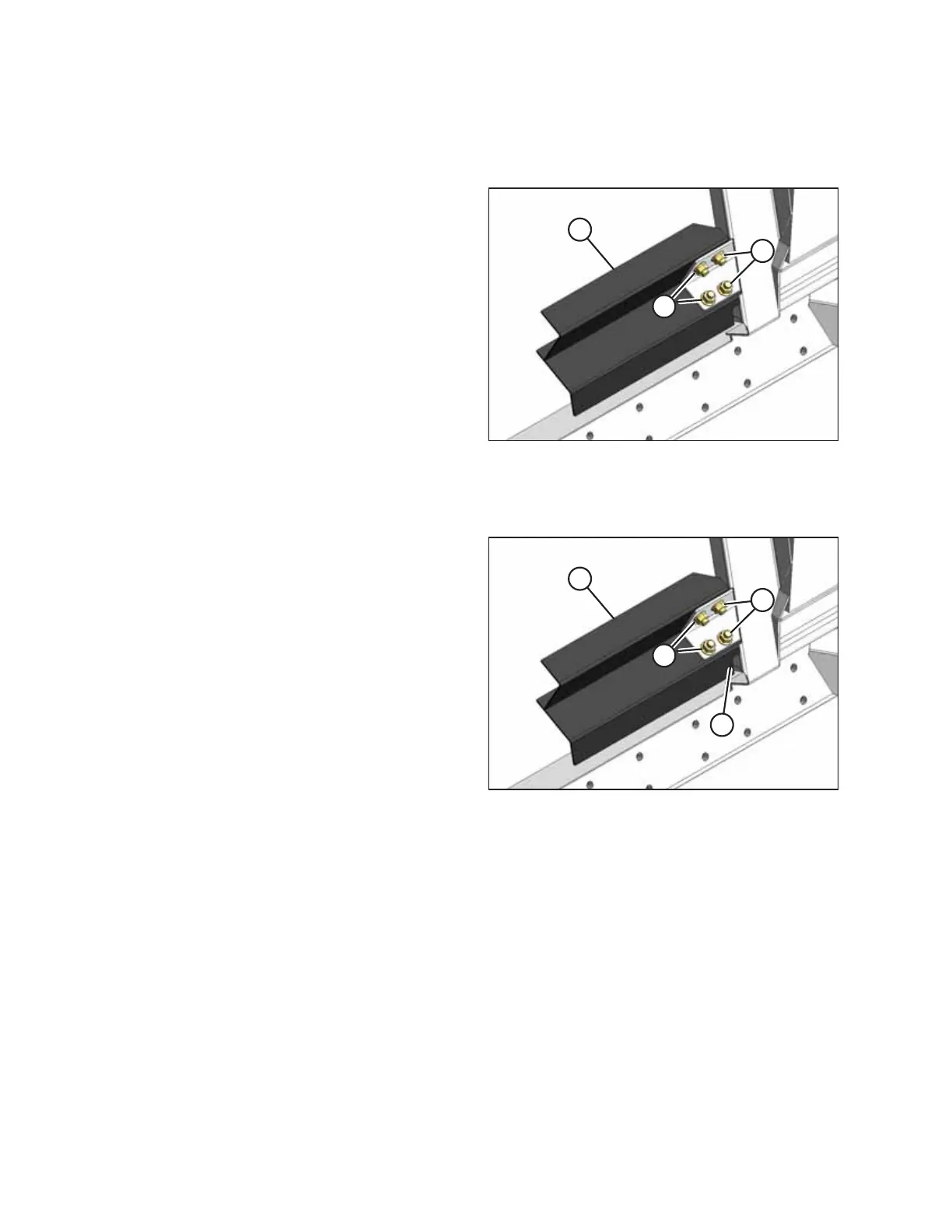

Figure 6.185: Stripper Bar
1. Detach the header from the combine. Refer to 5 Header
Attachment/Detachment, page 289.
2. Remove the four bolts and nuts (A) securing stripper bar (B)
to the adapter frame, and remove the stripper bar.
3. Repeat at the opposite side.
6.11.2 Installing Stripper Bars
1009700
A
B
C
C
Figure 6.186: Stripper Bar
1. Detach the header from the combine. Refer to 5 Header
Attachment/Detachment, page 289.
2. Position stripper bar (A) so that notch (B) is at the corner of
the frame.
3. Secure stripper bar (A) to the adapter with four bolts and
nuts (C). Ensure the nuts are facing the combine.
4. Repeat at the opposite side.
6.11.3 Replacing Feed Deflectors on New Holland CR Combines
1. Detach the header from the combine. Refer to 5 Header Attachment/Detachment, page 289.
