214323 397 Revision B

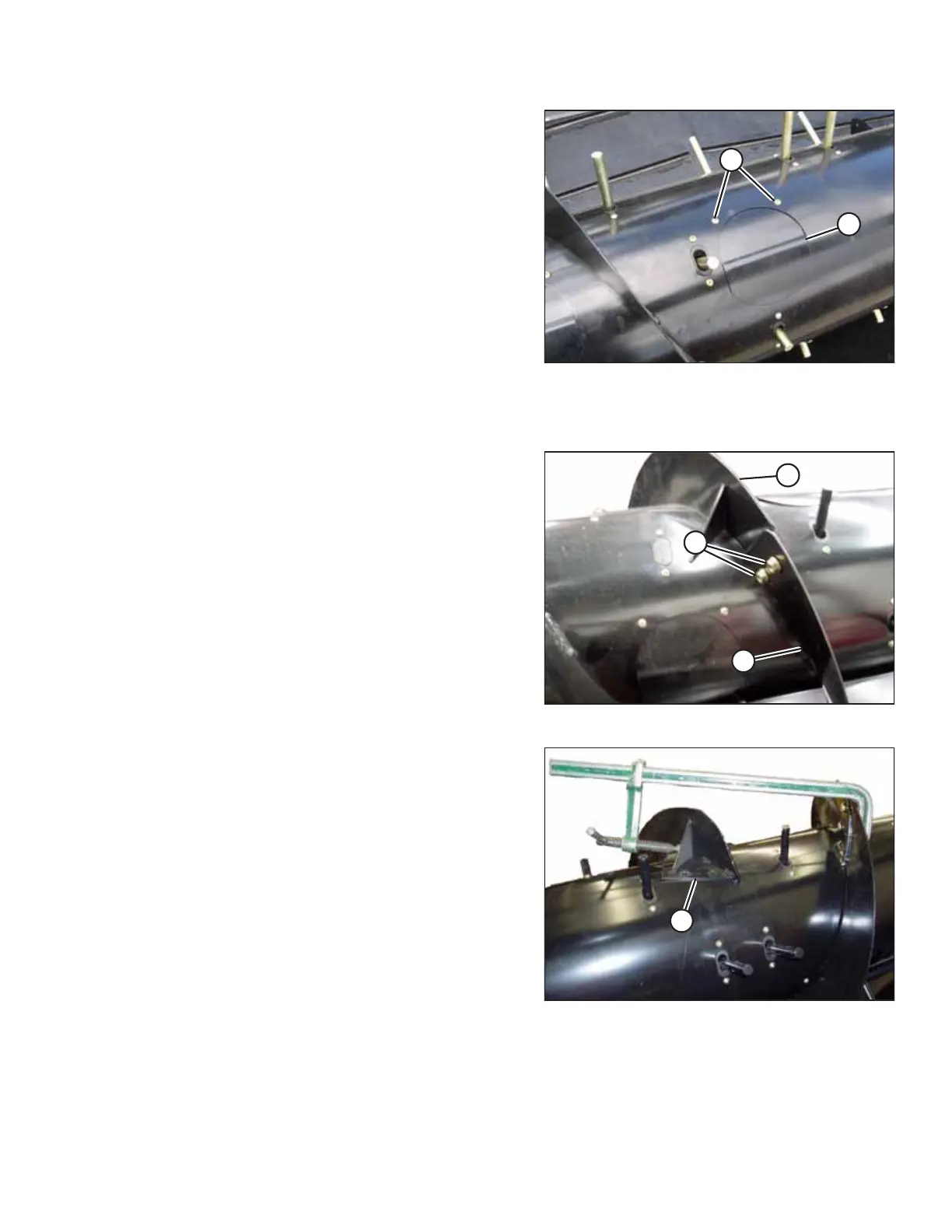

Figure 6.95: Auger
5. Reinstall access cover (B) and secure with screws (A). Coat
screws with Loctite
®
#243 (or equivalent) and torque to
8.5 Nm (75 lbf∙in).
Installing Flighting Extensions
Figure 6.96: Flighting Extension
1. Place flighting extensions (A) on the outboard side of auger
flighting (B). Tighten the hardware finger tight making sure
the carriage bolt heads are on the inboard side (crop side)
and nuts (C) are on the outboard side of the flighting.
Figure 6.97: Flighting Extension
2. Stretch flighting extensions (A) to fit the auger tube. Use
the slotted holes on flighting extension to achieve the best
fit around the auger tube.
MAINTENANCE AND SERVICING
