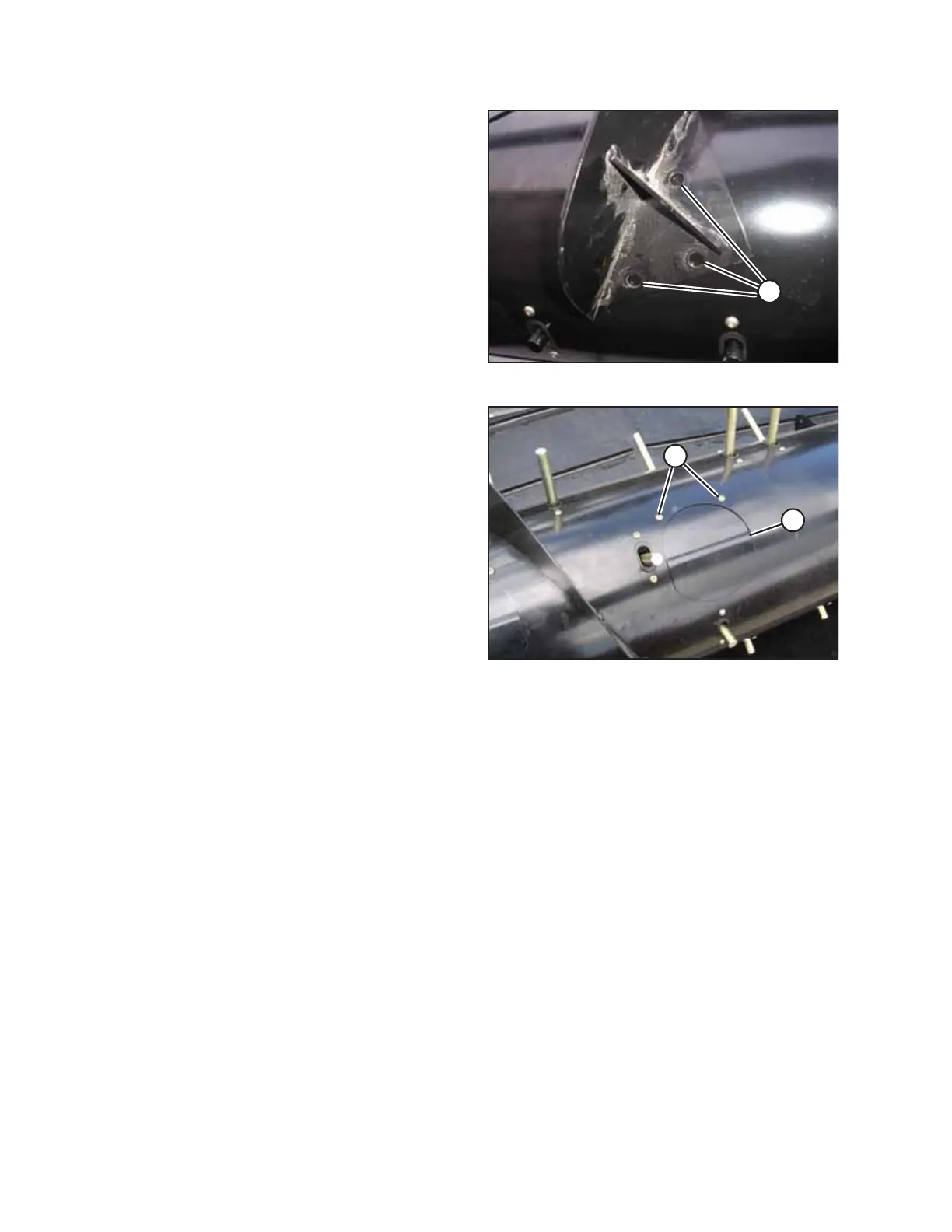

Figure 6.98: Flighting Extension
3. Mark hole locations (A) (three per extension), and drill
76 mm (3/8 in.) holes into the auger tube.
Figure 6.99: Auger
4. Install bolts to secure the flighting extensions in place.
5. Remove screws (A) and remove the nearest access
cover (B).
6. Install nuts from inside the drum, and tighten all hardware.
NOTE:
The flighting extensions will normally fit tight to the auger
tube; however, it is not unusual for the right flighting
extension to overlap the cover panel creating a gap
between the flighting extension and the auger tube. Gaps
over the cover panels or other locations may gather crop
material, but this will generally not affect performance. Use
silicone sealant to fill the gaps if necessary.
7. Reinstall access cover (B) and secure with screws (A). Coat
screws with Loctite
®
#243 (or equivalent) and torque to
8.5 Nm (75 lbf∙in).
MAINTENANCE AND SERVICING
