MacDon FlexDraper FD75 - Installing Adapter Feed Draper Drive Roller

214323 432 Revision B
1003743
B
A
C

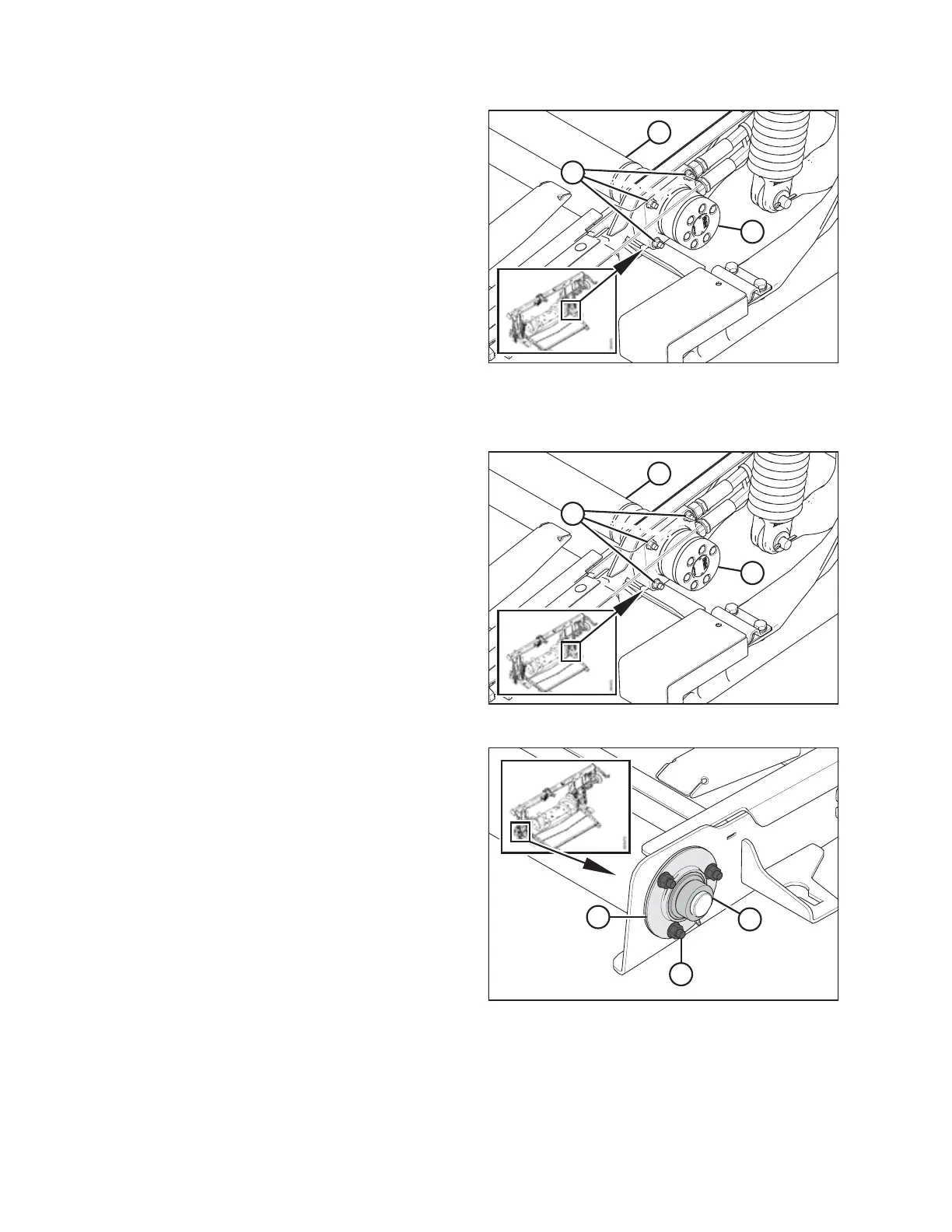

Figure 6.163: Hydraulic Motor
11. Remove four bolts (A) securing hydraulic motor (B) to the
frame. Slide the hydraulic motor away from drive roller (C).
12. Remove drive roller (C).
Installing Adapter Feed Draper Drive Roller
1003743
B
A
C
Figure 6.164: Motor
1. Apply grease to the spline.
2. Position drive roller (C) in the float module frame.
3. Slide hydraulic motor (B) into drive roller (C). Secure the
motor to the feed deck with four bolts (A).
1002992
A
B
C
Figure 6.165: Bearing
4. Install bearing flanges (C) and the bearing.
5. Install three bolts and nuts (B) to secure the bearing and
flanges (C) to the feed deck.
6. Lock bearing collar (A) and tighten the set screw.
7. Install the feed deck draper. For instructions, refer to 6.10.1
Replacing Adapter Feed Draper, page 428.
8. Tension the feed draper. For instructions, refer to 6.10.2
Checking and Adjusting Feed Draper Tension, page 429.
9. Attach the header to the adapter. For instructions, refer to
5.7.2 Attaching Header to Adapter and Combine, page 335.
MAINTENANCE AND SERVICING
