214323 433 Revision B
Replacing Adapter Feed Draper Drive Roller Bearing
Removing Adapter Feed Draper Drive Roller Bearing
DANGER
To prevent bodily injury or death from the unexpected start-up or fall of a raised machine, always stop the engine and
remove the key before leaving the operator’s seat, and always engage the safety props before going under the
machine for any reason.
1. If attached to the combine, detach the header from the adapter. For instructions, refer to 5.7.1 Detaching Header from
Adapter and Combine, page 330.
2. Raise the feeder house to its full height.
3. Stop the engine, and remove the key from the ignition.
4. Engage the combine safety props. For instructions, refer to the combine operator’s manual.

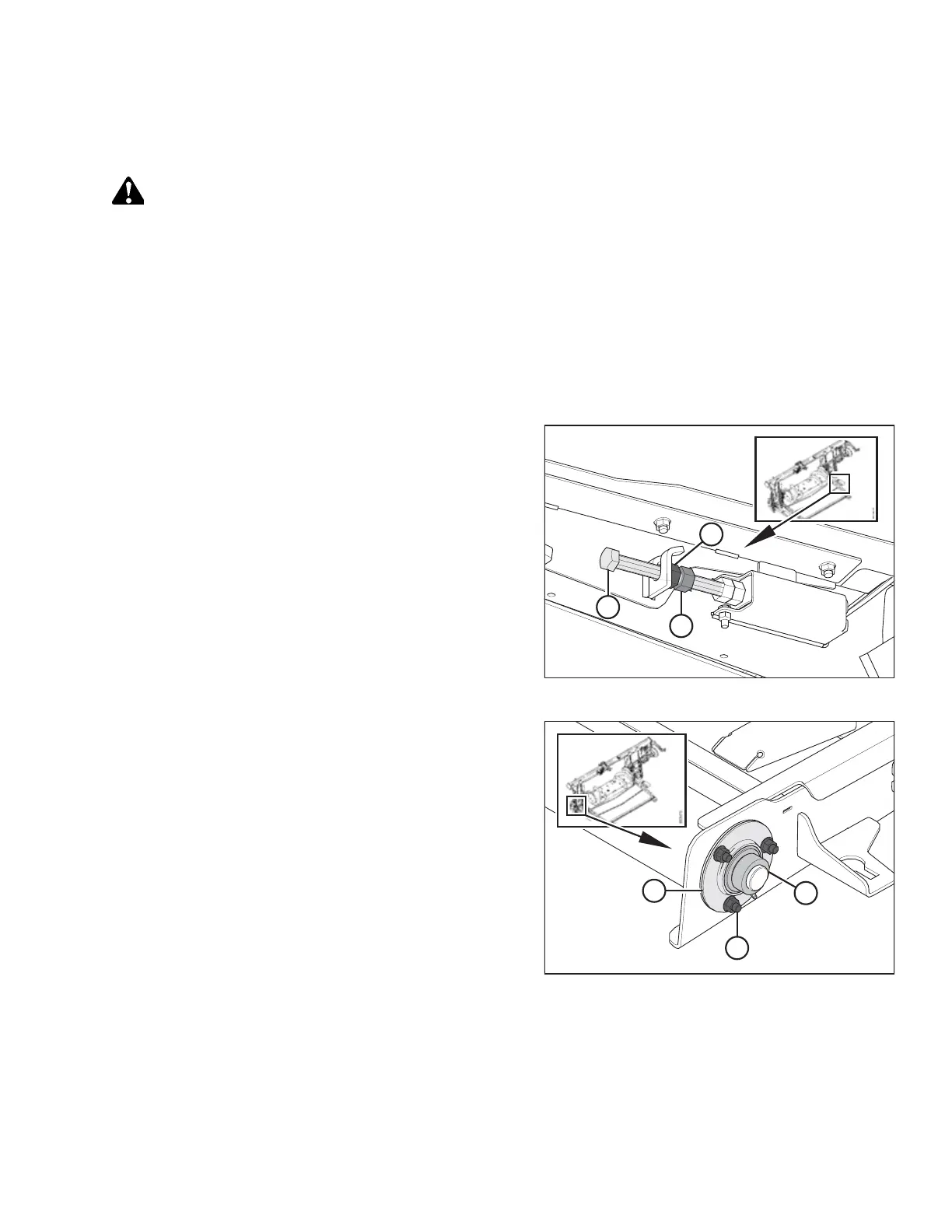

Figure 6.166: Tensioner
5. Loosen jam nut (A) and hold nut (B) with a wrench while
turning bolt (C) counterclockwise to release the draper
tension. Repeat at the opposite side.
Figure 6.167: Bearing
6. Loosen the set screw and unlock bearing lock collar (A).
7. Remove three nuts and bolts (B).
8. Remove bearing flanges (C) and the bearing.
MAINTENANCE AND SERVICING
