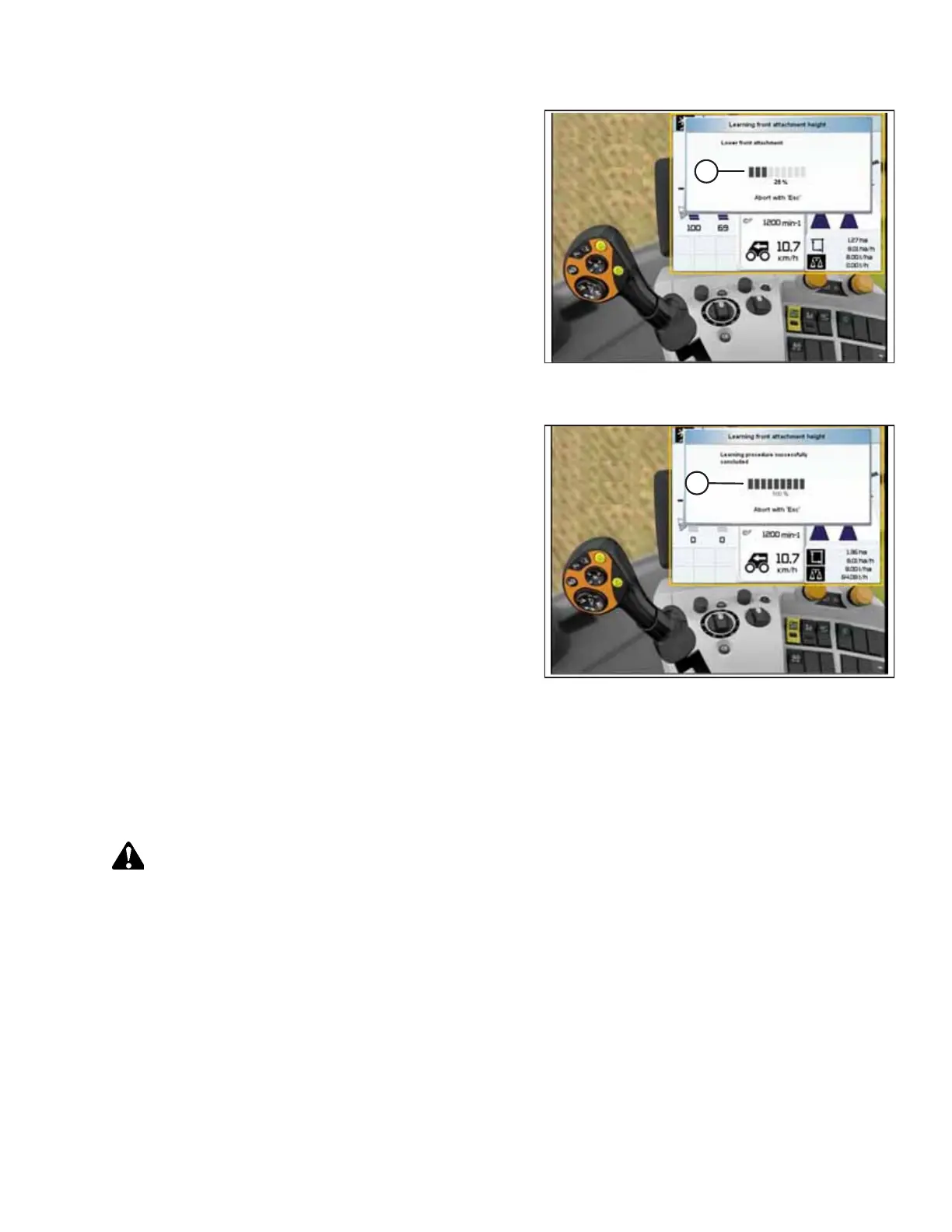

Figure 4.110: CLAAS Combine Display, Console, and
Joystick
11. Fully raise the feeder house. Progress bar (A) advances
to 25%.
12. Fully lower the feeder house until the header stops moving.
The progress bar advances to 50%.
13. Fully raise the feeder house a second time. The progress
bar advances to 75%.
14. Fully lower the feeder house until the header stops moving.
The progress bar advances to 100%.
1003691
A
Figure 4.111: CLAAS Combine Display, Console, and
Joystick
15. Once the calibration procedure is complete, progress
bar (A) displays 100%.
NOTE:
At any time during calibration, if the voltage is not within
the range of 0.5–4.5 volts, the combine display will indicate
that the learning procedure has not concluded.
NOTE:
If the header float is set to too light a setting, an error
message appears. If an error message appears, back the
float setting off by three full-turns of the adjuster bolts.
This will adjust the float setting to approximately 45–55 kg
(100–125 lb.).
4.10.2 Setting Cutting Height – CLAAS 600 and 700 Series
Up to two height settings can be programmed into the auto header height control (AHHC) system on CLAAS 600 and 700
Series combines.
DANGER
Check to be sure all bystanders have cleared the area.
NOTE:
Changes may have been made to the combine controls or the display since this document was published. Refer to the
combine operator’s manual for updated information.
