MacDon FlexDraper FD75 - Setting Cutting Height Manually - CLAAS 500 Series

214323 182 Revision B
1003688
A
B

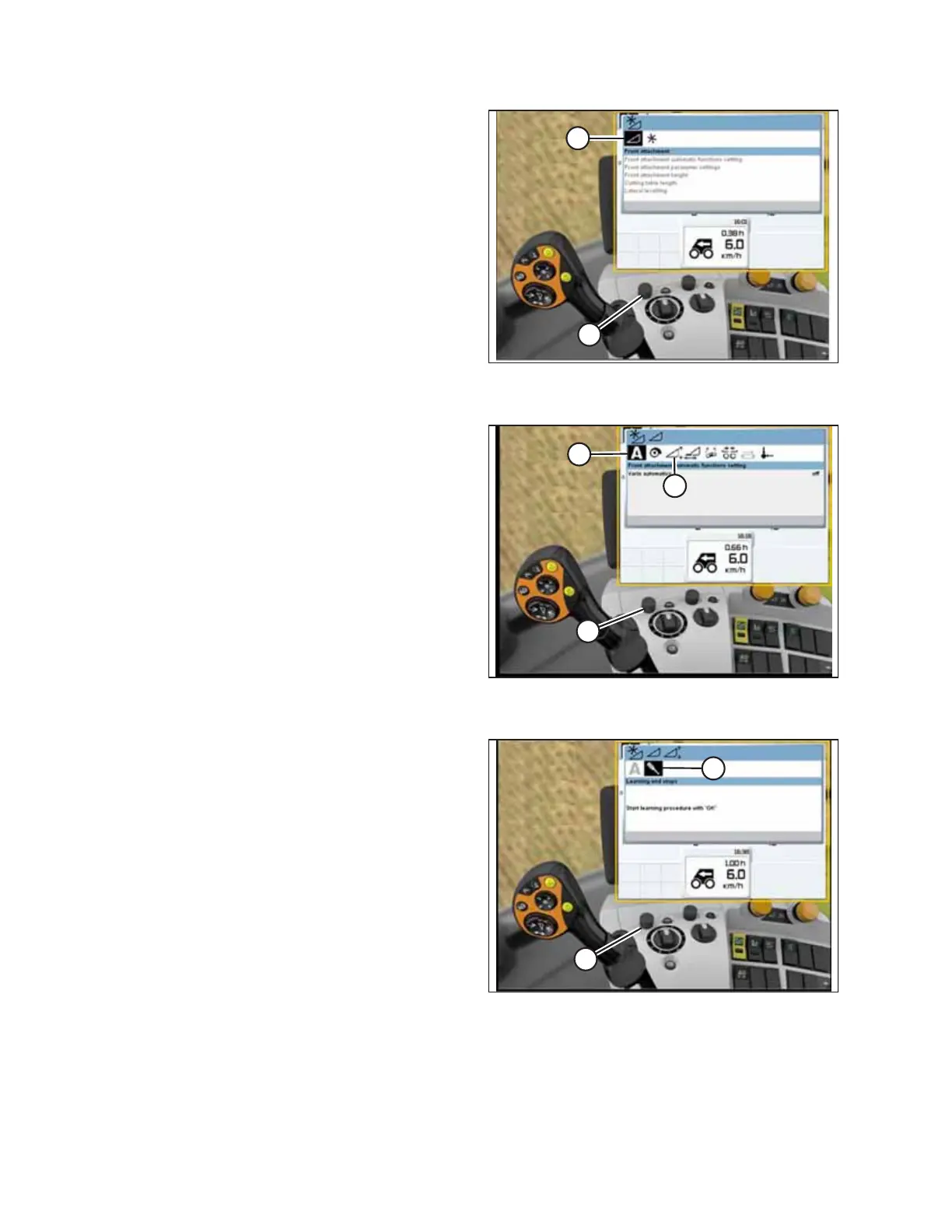

Figure 4.107: CLAAS Combine Display, Console, and
Joystick
5. Use control knob (A) to highlight the icon that resembles a
header with up and down arrows (not shown) and press
control knob (A) to select it. Highlighted HEADER icon (B)
appears on the screen.
1021655
A
B
C
Figure 4.108: CLAAS Combine Display, Console, and
Joystick
6. With icon A (A) highlighted, use control knob (B) to
highlight the icon that resembles a header (C) with the up
and down arrows, and press control knob (B) to select it.
1003689
A
B
Figure 4.109: CLAAS Combine Display, Console, and
Joystick
7. After pressing the control knob, icon A and screwdriver
icon (B) will appear on the screen (as shown).
8. Use control knob (A) to highlight screwdriver icon (B).
9. Engage the combine separator and the feeder house.
10. Press control knob (A). A progress bar appears.
AUTO HEADER HEIGHT CONTROL
