MacDon FlexDraper FD75 - Moving Rear Wheels into Field Position

214323 119 Revision B
1005658
A
B

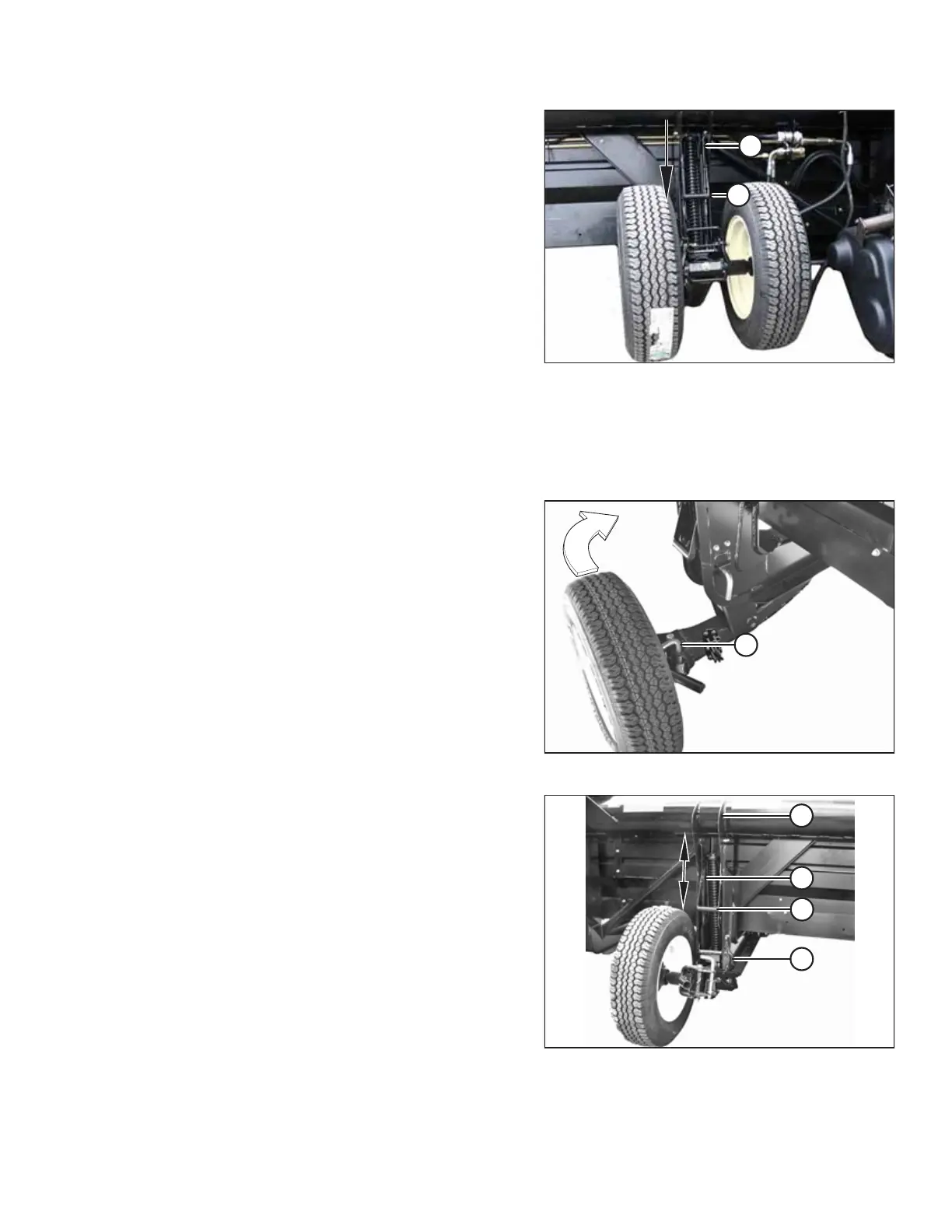

Figure 3.152: Front Wheels – Left
9. Lift the wheel assembly to the desired height and slide
linkage (A) into the appropriate slot in the vertical support.
10. Push handle (B) down to lock it.
Moving Rear Wheels into Field Position
The rear (right) wheels are located farthest from the towing vehicle. To prepare for operation in the field, the rear wheel
assembly must be rotated to face the cutterbar and lifted to the desired height.
1001739
A
Figure 3.153: Rear Wheel – Right Side
1. Pull up pin (A) on the left rear wheel, swivel the wheel
clockwise, and release the pin to lock the wheel.
1001740
A
C
D
B
Figure 3.154: Rear Wheel – Right Side
2. Remove pin (A) and store at location (B).
3. Pull handle (C) upward to release the linkage.
4. Lift the wheel to the desired height, and engage the
support channel into slot (D) in the vertical support.
5. Push handle (C) down to lock the linkage.
OPERATION
