MacDon FlexDraper FD75 - Reel Drive; Replacing Reel Drive Cover; Removing Reel Drive Cover

214323 488 Revision B
6.14 Reel Drive
All 7.6 m (25 ft.) and smaller headers have single reels; 9.1–10.7 m (30–35 ft.) headers are available in single-reel and
double-reel versions; all headers larger than 10.7 m (35 ft.) are only available in double-reel configurations. Single reels are
driven from the right arm and double reels are driven from the center arm.
6.14.1 Replacing Reel Drive Cover
The reel drive cover protects the reel drive components from dirt and debris.
Removing Reel Drive Cover
The reel drive cover protects the reel drive components from dirt and debris.
DANGER
To prevent bodily injury or death from the unexpected start-up of the machine, always stop the engine and remove the
key from the ignition before leaving the operator’s seat for any reason.
1. Shut down the engine, and remove the key from the ignition.
Double-Reel Drive
1012795
A
B
C

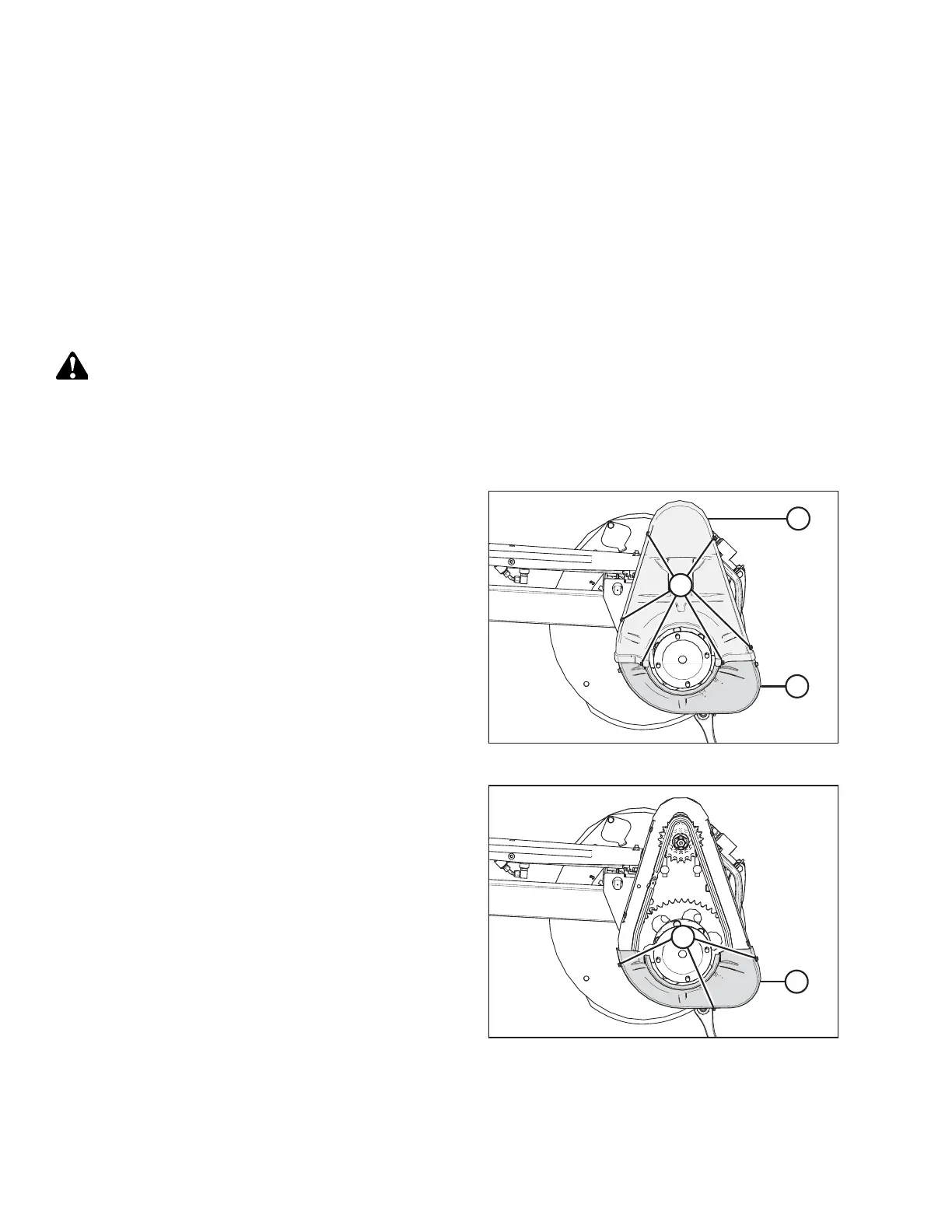

Figure 6.286: Drive Cover – Double Reel
2. Remove six bolts (A) securing upper cover (B) to the reel
drive and lower cover (C).
1012796
A
B
Figure 6.287: Drive Cover – Double Reel
3. If necessary, remove three bolts (A) and remove lower
cover (B).
