214323 36 Revision B
Installing Endshield
If an endshield has been removed, it will need to be reinstalled before the header can be safely operated.

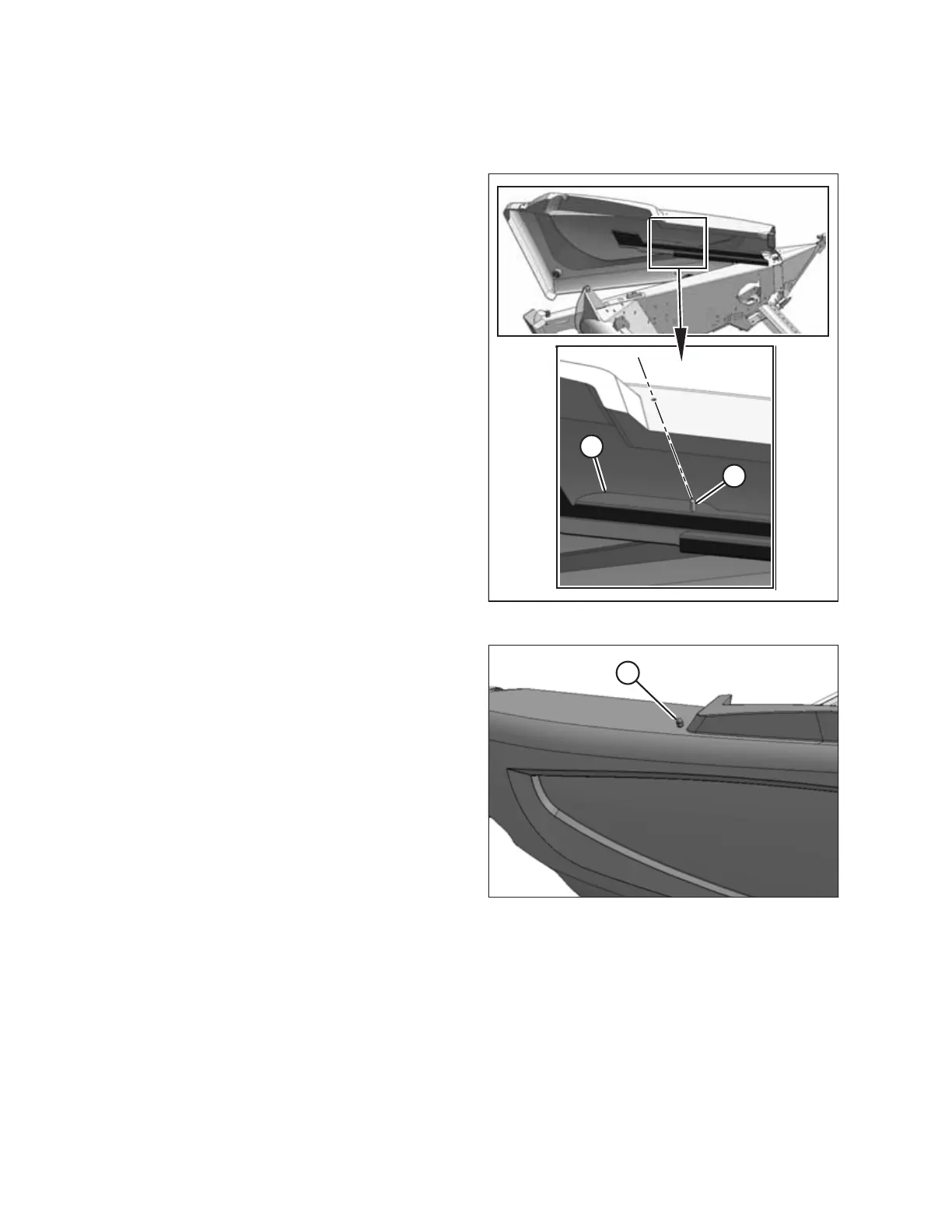

Figure 3.14: Left Endshield
1. Place the endshield onto support (A), and align the hole in
the endshield with stud (B) on the support.
Figure 3.15: Left Endshield
2. Secure the endshield to the support with acorn nut (A).
3. Close the endshield. For instructions, refer to Closing
Endshield, page 34.
NOTE:
Polyethylene endshields may expand or contract when
subjected to large temperature changes. The top pin and
the lower catch bracket positions can be adjusted to
compensate for dimensional changes. For instructions, refer
to Adjusting Endshield, page 37.
OPERATION
