214323 360 Revision B
Lubricating the Header
Greasing points are marked on machine by decals showing a grease gun and grease interval in hours of operation. Master
grease point location decals are provided on header and adapter back frame.
DANGER
To prevent bodily injury or death from the unexpected start-up of the machine, always stop the engine and remove the
key from the ignition before leaving the operator’s seat for any reason.

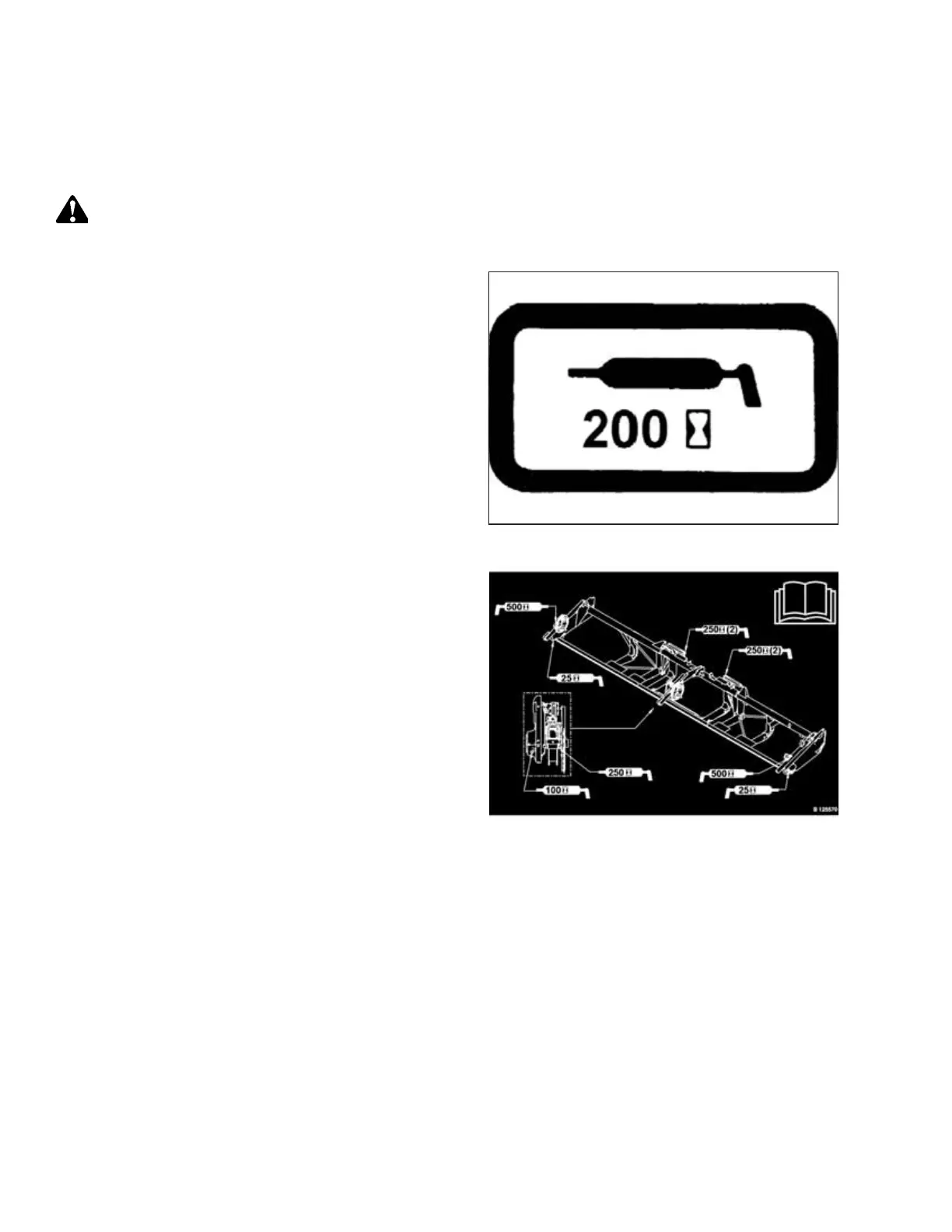

Figure 6.15: Greasing Interval Decal
Figure 6.16: FD75 Master Grease Point Decal
Refer to the inside back cover for recommended lubricants.
Log hours of operation and use the Maintenance Record
provided to keep a record of scheduled maintenance. Refer to
6.3.1 Maintenance Schedule/Record, page 345.
MAINTENANCE AND SERVICING
