7.5.3 Draper Deflector – Narrow
1004867

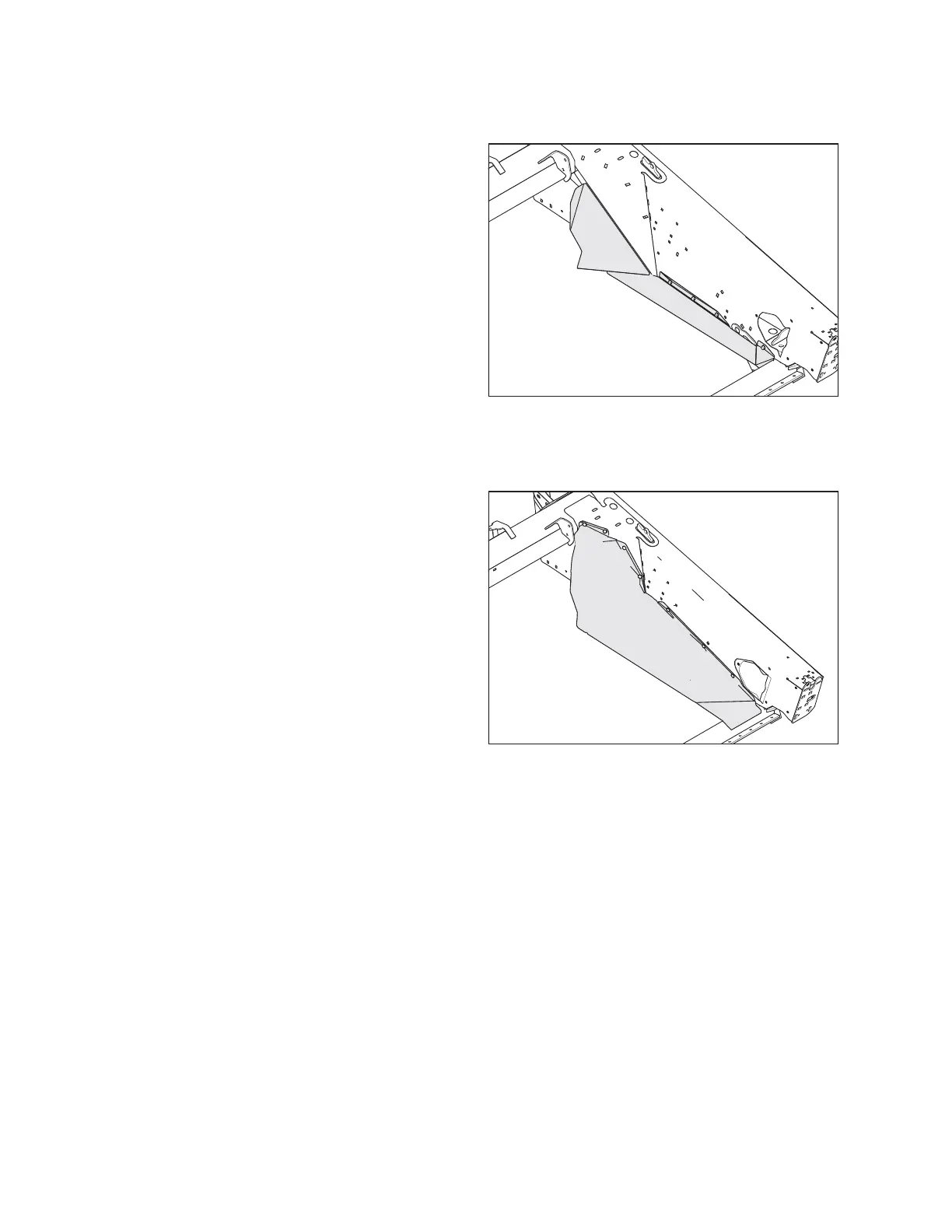

Figure 7.16: Draper Deflector (Narrow)
Narrow metal draper deflectors attach to the inboard side of
the endsheets to prevent material from falling through the gap
between the endsheet and the draper while minimizing reel
carryover in bushy crops.
Refer to your parts catalog for the necessary parts.
7.5.4 Draper Deflector – Wide
1004865
Figure 7.17: Draper Deflector (Wide)
Wide metal draper deflectors attach to the inboard side of the
endsheets to prevent material from falling through the gap
between the endsheet and the draper.
Refer to your parts catalog for the necessary parts.
