214323 373 Revision B
IMPORTANT:
If the combine output shaft splines match the adapter input shaft splines, ensure the driveline is installed with the longer
guard at the adapter gearbox end.
IMPORTANT:
Ensure the driveline length corresponds with the length specifications for your specific equipment. Refer to 2.2
Specifications, page 23.

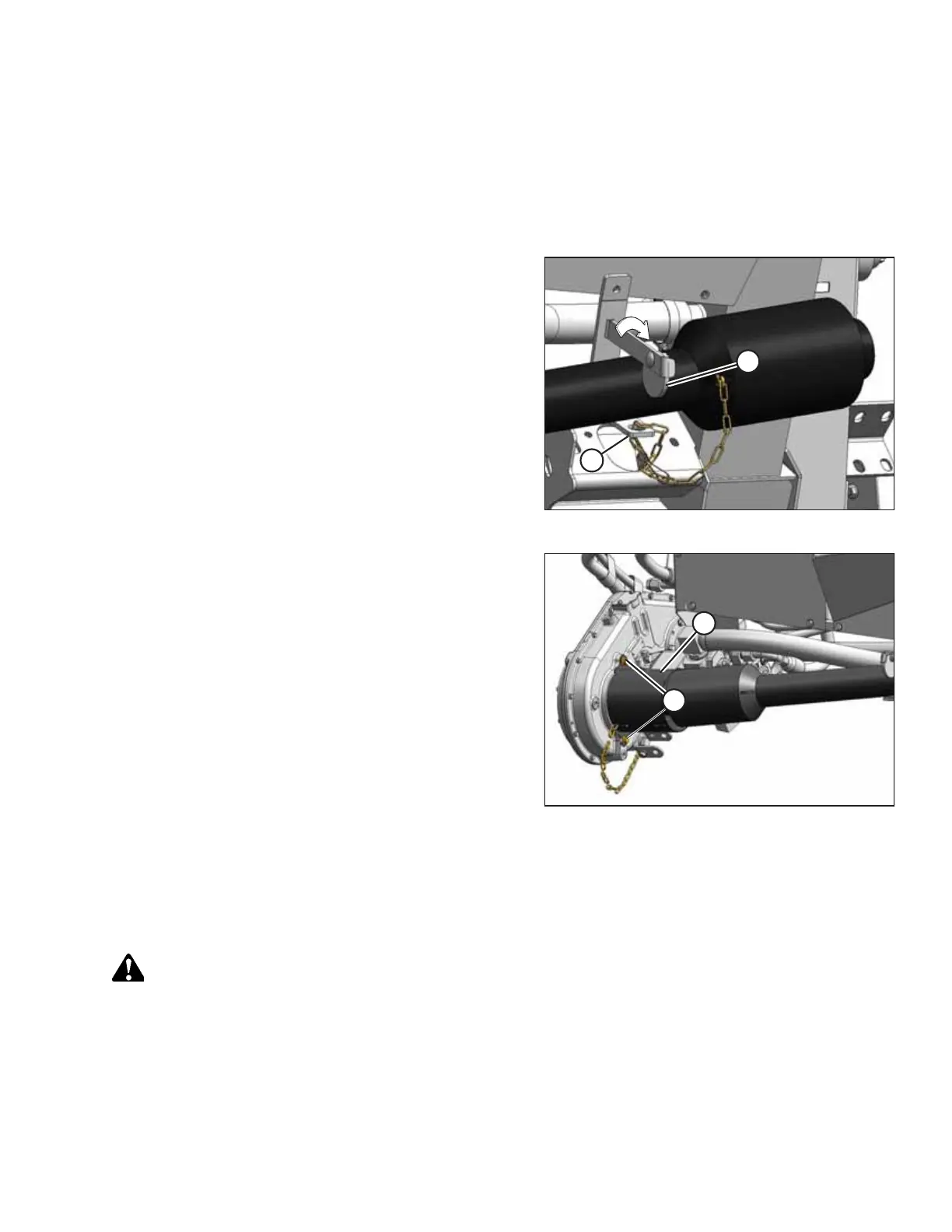

Figure 6.41: Combine End of Driveline
1. Slide the driveline into hook (A) so disc (B) drops and
secures the driveline.
Figure 6.42: Adapter End of Driveline
2. Slide shield (B) over the driveline.
3. Position the driveline quick disconnect onto the adapter
gearbox shaft, pull back the collar, and slide onto the shaft
until the yoke locks onto the shaft. Release the collar.
4. Position shield (B) on the gearbox and secure with nuts (A).
5. Connect the opposite end to the combine if necessary.
6.6.3 Removing Driveline Guard
The main driveline guard must remain attached to the driveline during operation, but it can be removed for maintenance
purposes.
DANGER
To prevent bodily injury or death from the unexpected start-up of the machine, always stop the engine and remove the
key from the ignition before leaving the operator’s seat for any reason.
NOTE:
The driveline does NOT need to be removed from the adapter in order to remove the driveline guard.
MAINTENANCE AND SERVICING
