214323 374 Revision B

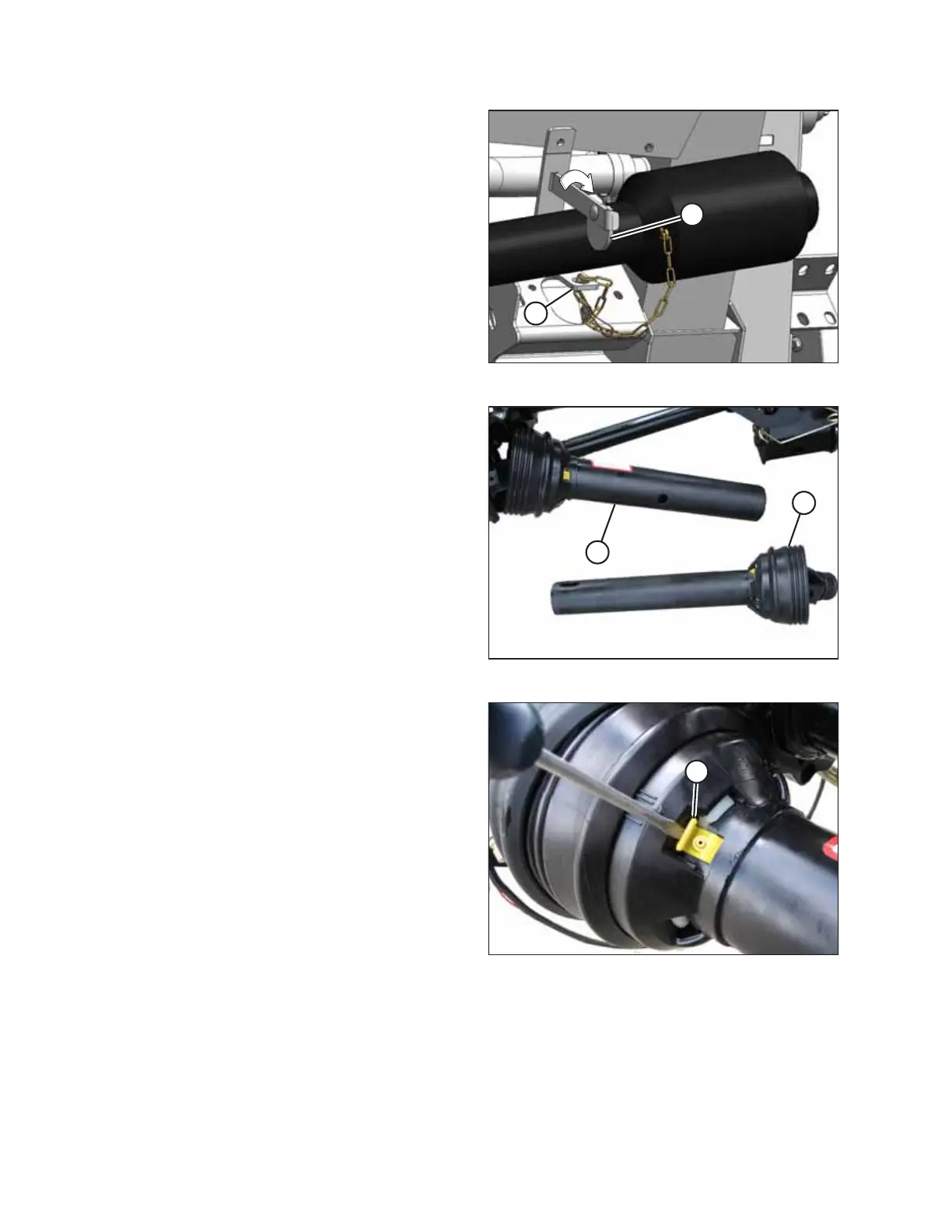

Figure 6.43: Combine End of Driveline
1. Shut down the combine, and remove the key from the
ignition.
2. If the driveline is in the storage position, rotate disc (B) on
adapter driveline storage hook (A), and remove the
driveline from the hook. If the driveline is attached to the
combine, remove the driveline from the combine by pulling
the quick disconnect collar to release the driveline yoke at
the combine shaft. For instructions, refer to 5 Header
Attachment/Detachment, page 289.
Figure 6.44: Separated Driveline
3. Lift the combine end of driveline (A) from the hook, and
extend the driveline until it separates. Hold the adapter end
of driveline (B) to prevent it from dropping and hitting the
ground.
Figure 6.45: Driveline Guard
4. Use a slotted screwdriver to release grease zerk/lock (A).
MAINTENANCE AND SERVICING
