MacDon FlexDraper FD75 - Setting up Reel Speed - New Holland CR Series

214323 279 Revision B
1016053
A
B

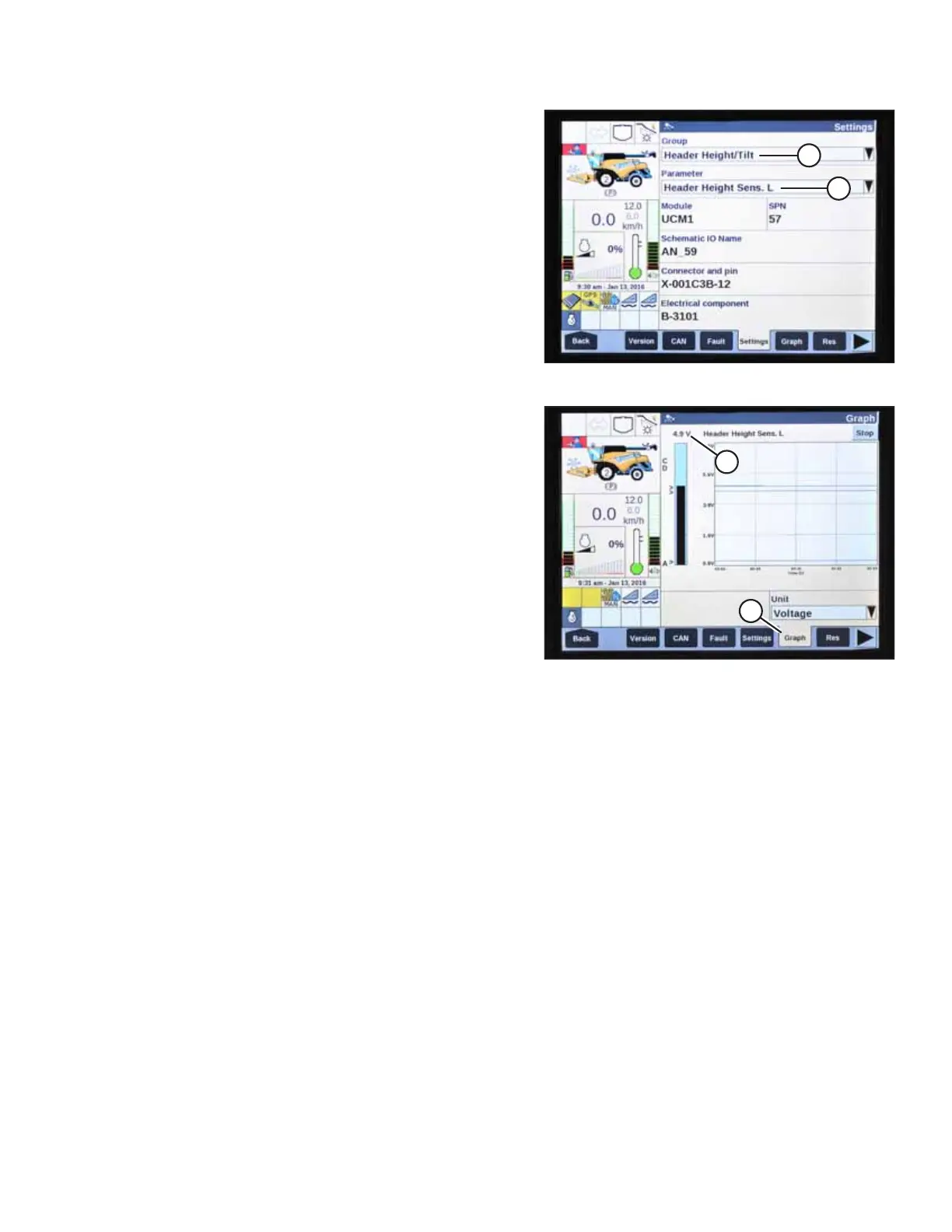

Figure 4.308: New Holland Combine Display
7. Select HEADER HEIGHT/TILT (A) from the GROUP drop-
down menu.
8. Select HEADER HEIGHT SENS. L (B) from the PARAMETER
drop-down menu.
1016055
A
B
Figure 4.309: New Holland Combine Display
9. Select GRAPH (A). Height sensor out voltage (B) is displayed
at the top of the page.
10. Raise and lower the header to see the full range of voltage
readings.
11. Adjust the voltage limits (refer to 4.4.2 Adjusting Voltage
Limits, page 137) if the sensor voltage is not within the low
and high limits or if the range between the low and high
limits is insufficient (refer to Table 4.1, page 134).
4.20.3 Setting up Reel Speed – New Holland CR Series
The reel diameter and reel displacement settings will need to be entered into the combine’s computer before the reel can
be operated.
NOTE:
Changes may have been made to the combine controls or the display since this document was published. Refer to the
combine operator’s manual for the most up-to-date information.
NOTE:
This section applies only to 2015 and later CR models (6.80, 6.90, 7.90, 8.90, 9.90, and 10.90).
1. Shut down the engine.
2. Turn the key to the run position.
3. Make sure the combine display software is updated to these versions or later:
• Model year 2015–2018: UCM v38.10.0.0
• Model year 2019: UCM v1.4.0.0
AUTO HEADER HEIGHT CONTROL
