4.18 John Deere S7 Series Combines
To make your header’s auto header height control (AHHC) system compatible with John Deere S7 Series combines, you
must set your combine’s header configuration options for the particular model of header, configure the reel speed settings,
set up the AHHC controls, and calibrate the AHHC system to ensure that it is working correctly.
4.18.1 Setting up Header – John Deere S7 Series
Set these initial configuration options on your combine when setting up the auto header height control (AHHC) system.
NOTE:
Changes may have been made to the combine controls or the display since this document was published. Refer to the
combine operator’s manual for the most up-to-date information.
1022757
A

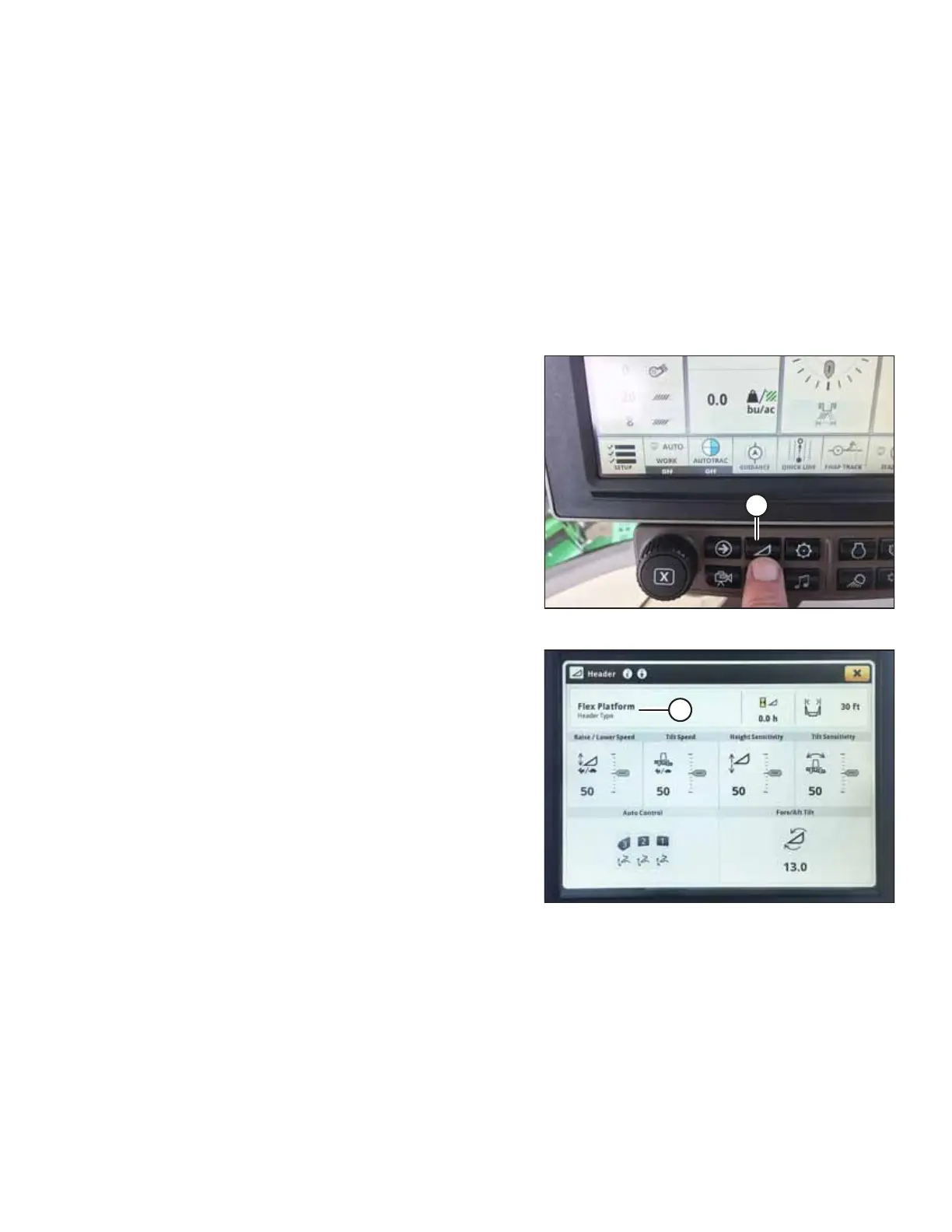

Figure 4.248: John Deere S7 Display
1. Press header button (A) on the panel below the display. The
HEADER page opens.
1022759
A
Figure 4.249: John Deere S7 Display – Header Page
2. Select HEADER TYPE field (A). The HEADER DETAILS dialog
box opens.
AUTO HEADER HEIGHT CONTROL
