MacDon FlexDraper FD75 - Reel; Multi-Crop Rapid Reel Conversion Kit; Lodged Crop Reel Finger Kit; PR15 Tine Tube Reel Conversion Kit

214323 490 Revision B
1012799
B
C
A

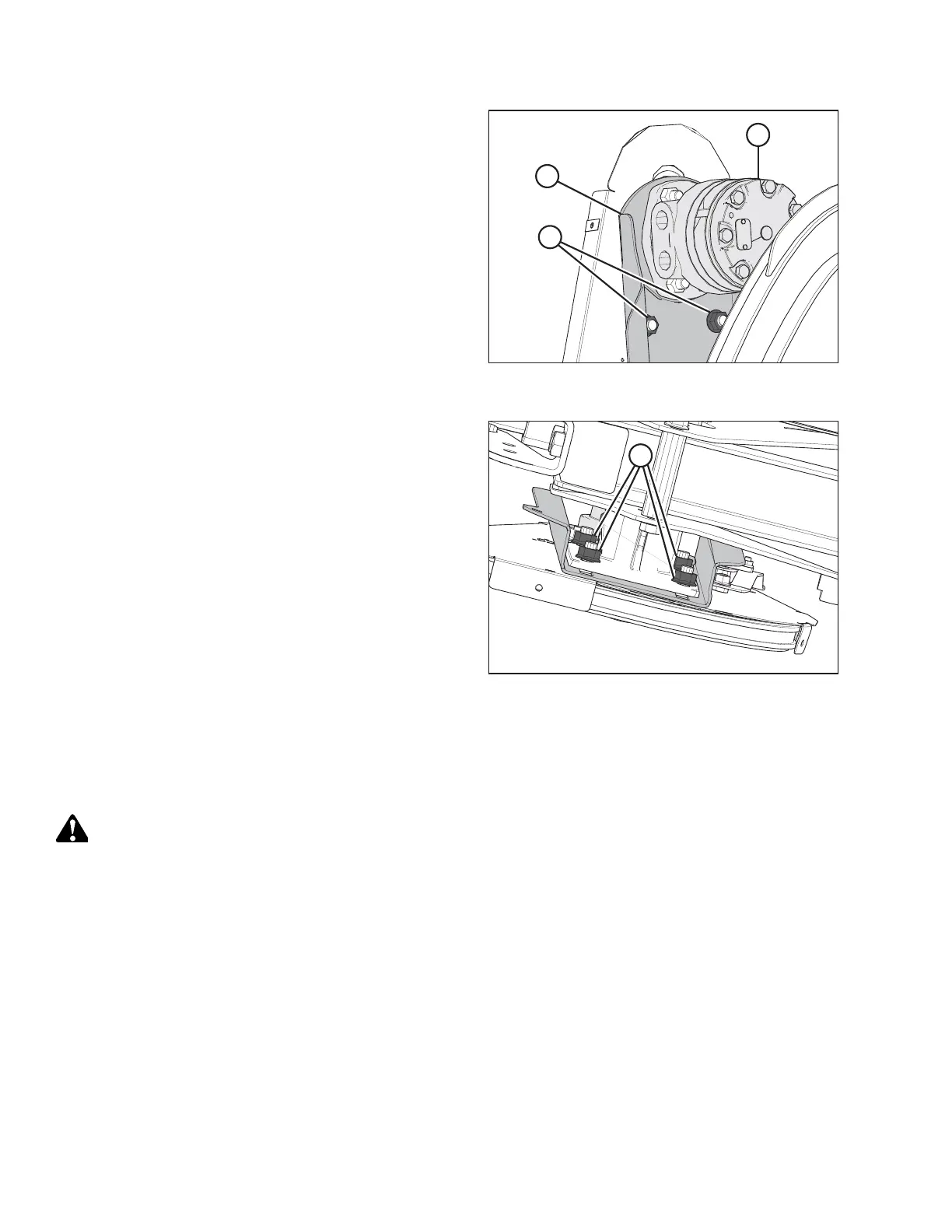

Figure 6.290: Single-Reel Drive Shown – Double-Reel
Drive Similar
1012801
A
Figure 6.291: Single-Reel Drive – Viewed from
Underside of Reel
3. Loosen six nuts (A). Slide motor (B) and motor mount (C)
down toward the reel shaft.
Tightening Reel Drive Chain
A correctly tensioned drive chain ensures optimum power transfer while minimizing component wear.
DANGER
To prevent bodily injury or death from the unexpected start-up or fall of a raised machine, always stop the engine and
remove the key from the ignition before making adjustments to the machine. NEVER climb onto or go underneath an
unsupported header.
1. Shut down the engine, and remove the key from the ignition.
MAINTENANCE AND SERVICING
