214323 35 Revision B

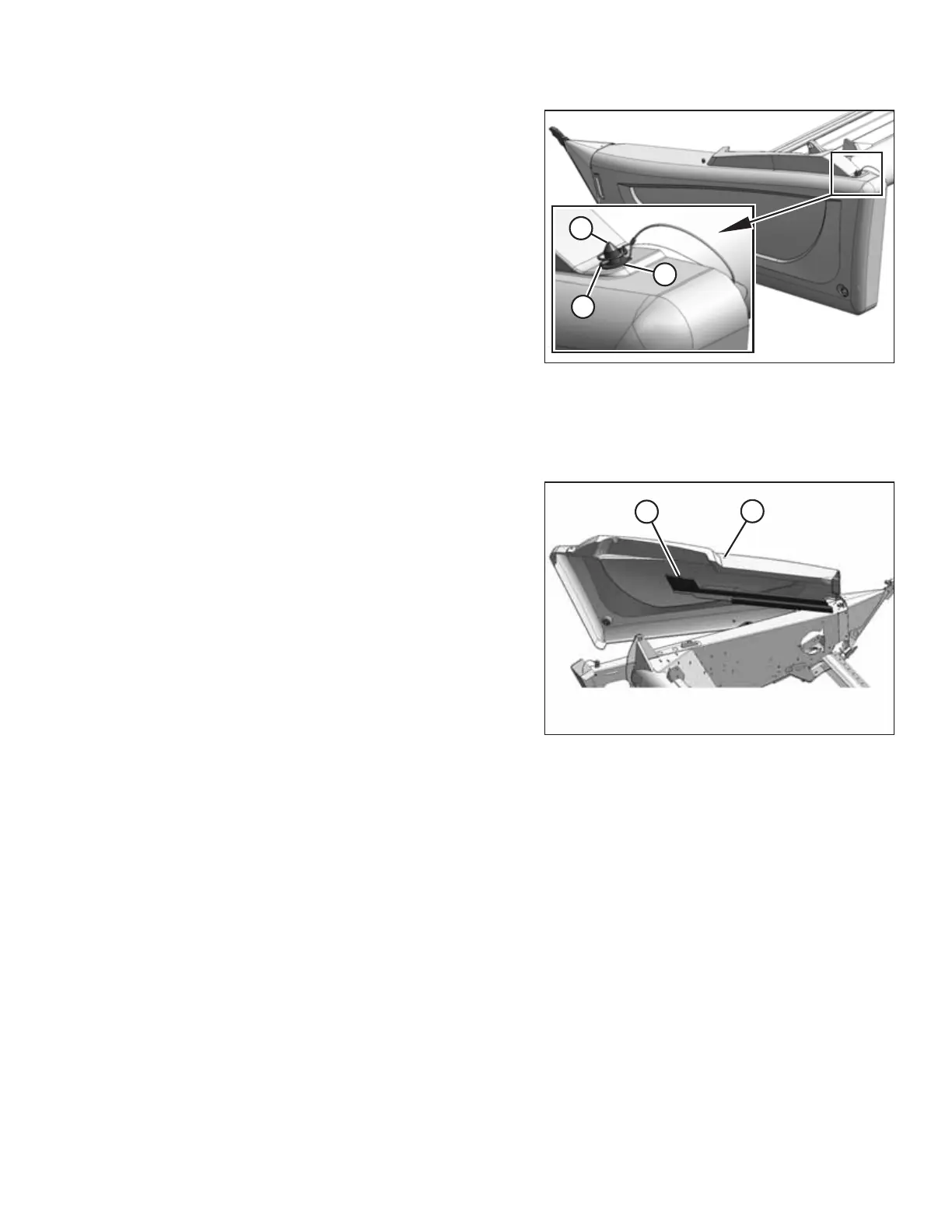

Figure 3.12: Left Endshield Pin
5. Replace tool (B) and lynch pin (A) on top pin (C).
Removing Endshield
It may be necessary to remove the endshield to perform certain servicing tasks.
Figure 3.13: Left Endshield
1. Open the endshield. For instructions, refer to Opening
Endshield, page 33.
2. Remove acorn nut (A) securing the endshield to
support (B).
3. Lift the endshield off support (B).
OPERATION
