MacDon FlexDraper FD75 - Replacing Adapter Feed Draper Idler Roller Bearing

214323 435 Revision B
1014024
A
B

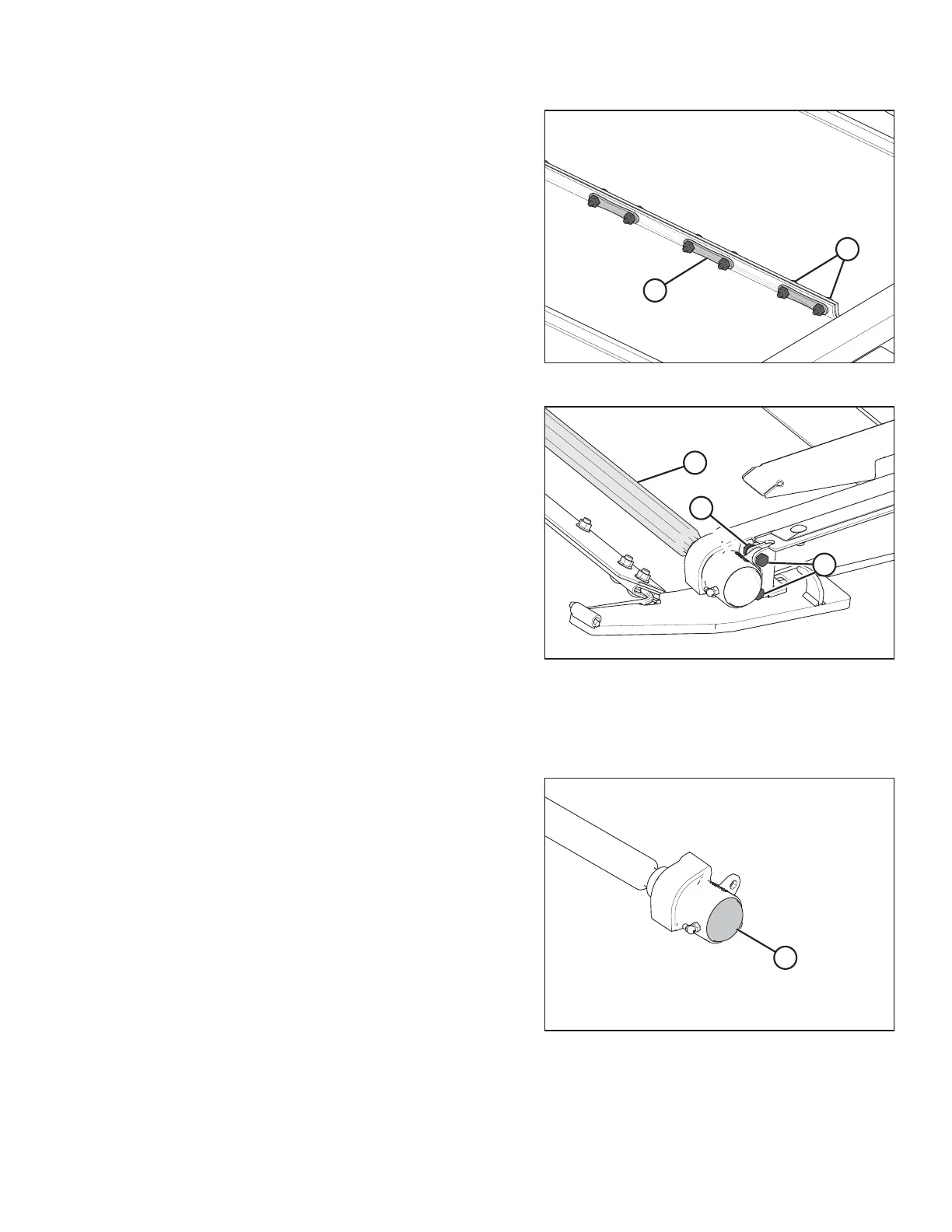

Figure 6.170: Draper Connector
4. Remove screws (A) and nuts, and remove draper connector
straps (B).
5. Open the feed draper.
1003003
A
B
C
Figure 6.171: Idler Roller
6. Remove two bolts (A) and nuts (C) from both ends of the
idler roller.
7. Remove idler roller assembly (B).
Replacing Adapter Feed Draper Idler Roller Bearing
Follow the provided procedure to properly replace the idler roller bearing.
1002994
A
Figure 6.172: Idler Roller
1. Remove dust cap (A) from the end of the idler roller.
MAINTENANCE AND SERVICING
