214323 436 Revision B

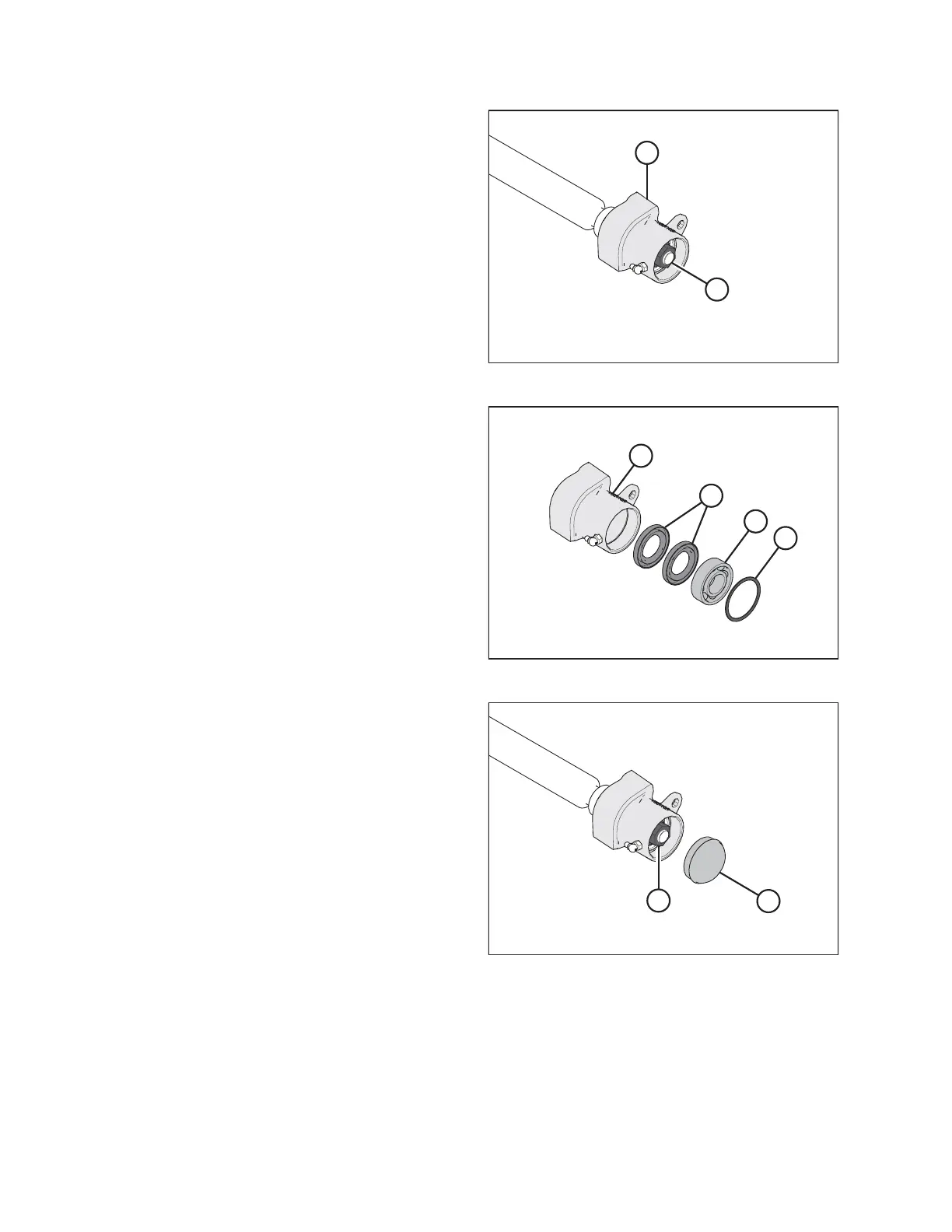

Figure 6.173: Idler Roller
2. Remove nut (A).
3. Use a hammer to tap bearing assembly (B) until it slides off
the shaft.
Figure 6.174: Bearing Assembly
4. Secure housing (D) and remove internal retaining ring (A),
bearing (B), and two seals (C).
5. Install seals (C) into housing (D).
NOTE:
Ensure the flat side of each seal is facing inboard.
6. Brush the shaft with oil, and carefully rotate housing (D)
with seals (C) onto the shaft by hand to prevent damaging
the seals.
7. Install bearing (B).
8. Install retaining ring (A).
Figure 6.175: Idler Roller
9. Secure the bearing assembly to the shaft with nut (A), and
torque the nut to 81– 95 Nm (60–70 lbf·ft).
10. Install dust cap (B).
11. Pump grease into the bearing assembly.
MAINTENANCE AND SERVICING
