214323 106 Revision B
Installing Crop Divider Rods

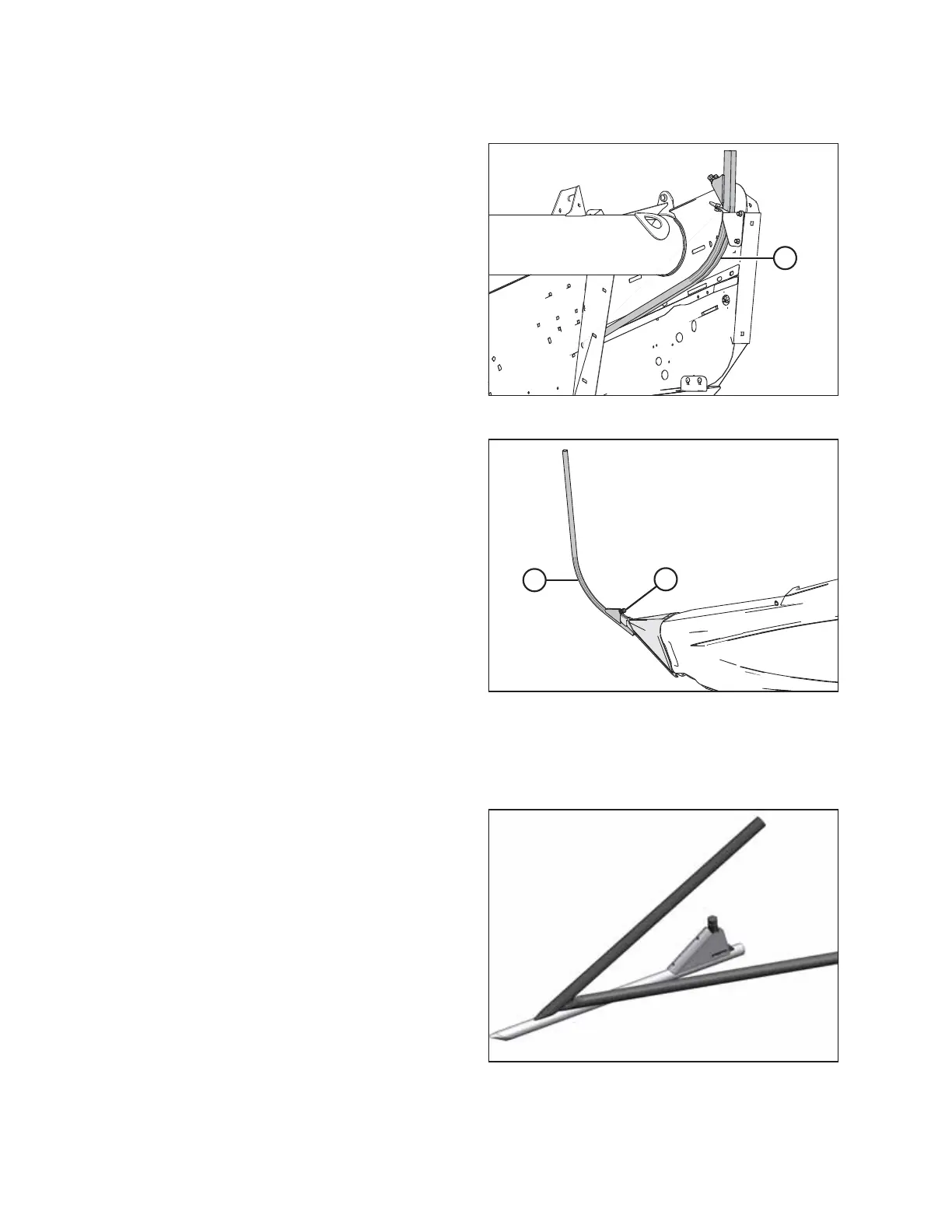

Figure 3.134: Right Endsheet
1. Remove crop divider rods (A) from storage location on
inboard of right endsheet.
Figure 3.135: Divider Rod on Crop Divider
2. Position crop divider rod (B) on tip of crop divider as shown
and tighten bolt (A).
3. Repeat procedure at opposite end of header.
Rice Divider Rods
Rice divider rods attach to the left and right crop dividers.
Figure 3.136: Divider Rod for Rice
Optional rice divider rods provide improved performance in tall
and tangled rice crops. For instructions, refer to 7.5.7 Rice
Divider Rods, page 518.
The installation and removal procedures are the same as for
standard crop divider rods.
OPERATION
