MacDon FlexDraper FD75 - CLAAS Combines; Attaching Header to CLAAS Combine

214323 313 Revision B
5.5 CLAAS Combines
5.5.1 Attaching Header to CLAAS Combine
DANGER
To prevent bodily injury or death from the unexpected start-up of the machine, always stop the engine and remove the
key from the ignition before leaving the operator’s seat for any reason.
1001462
A
B

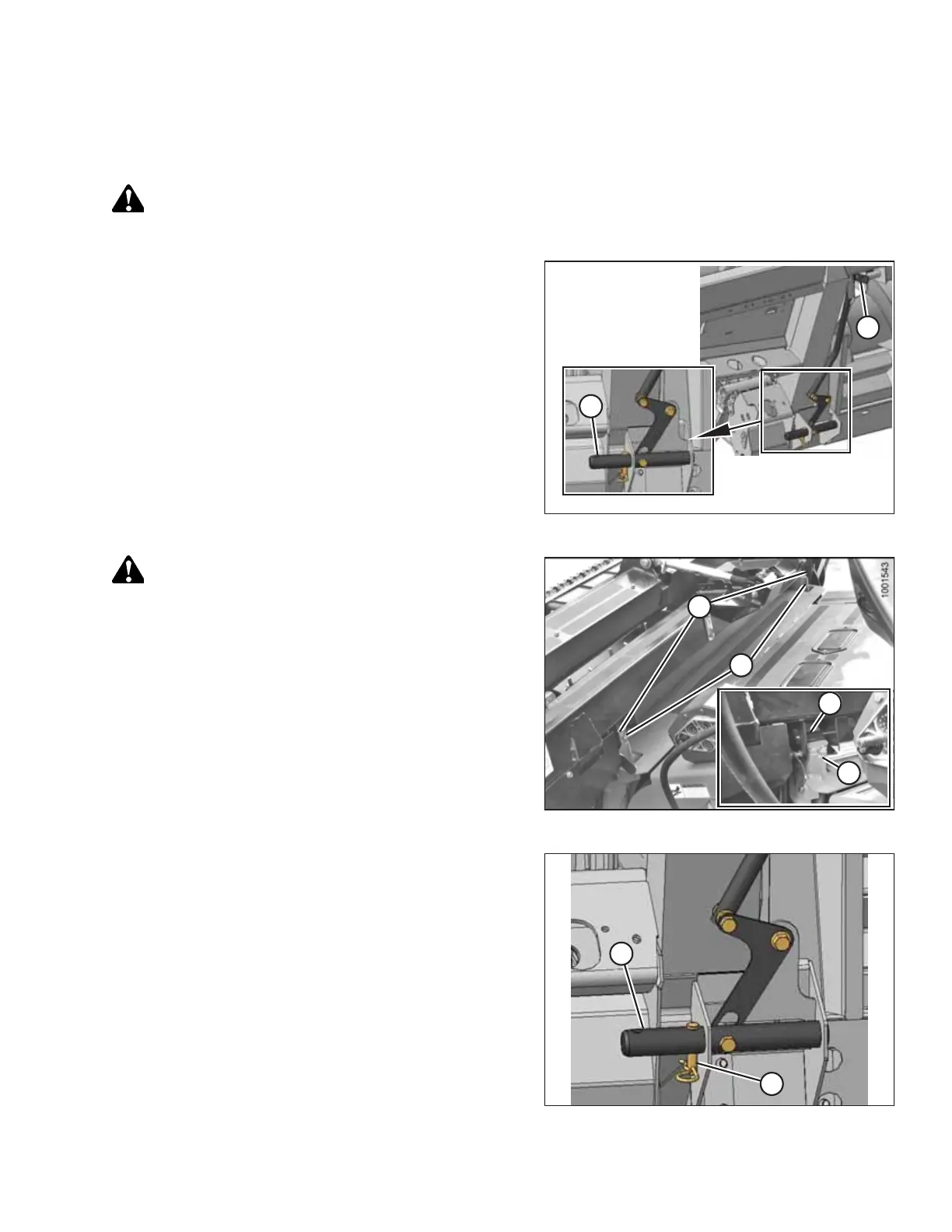

Figure 5.55: Pins Retracted
1. Move handle (A) on the adapter into the raised position,
and ensure pins (B) at the bottom corners of the adapter
are retracted.
1001543
B
A
B
A
Figure 5.56: Header on Combine
DANGER
Never start or move the machine until you are sure all
bystanders have cleared the area.
2. Start the engine and slowly drive the combine up to the
header until feeder house saddle (A) is directly under
adapter top cross member (B).
3. Raise the feeder house slightly to lift the header, ensuring
the feeder saddle is properly engaged in the adapter frame.
4. Shut down the engine, and remove the key from the
ignition.
1001463
A
B
Figure 5.57: Adapter Pin
5. Remove locking pin (B) from adapter pin (A).
HEADER ATTACHMENT/DETACHMENT
