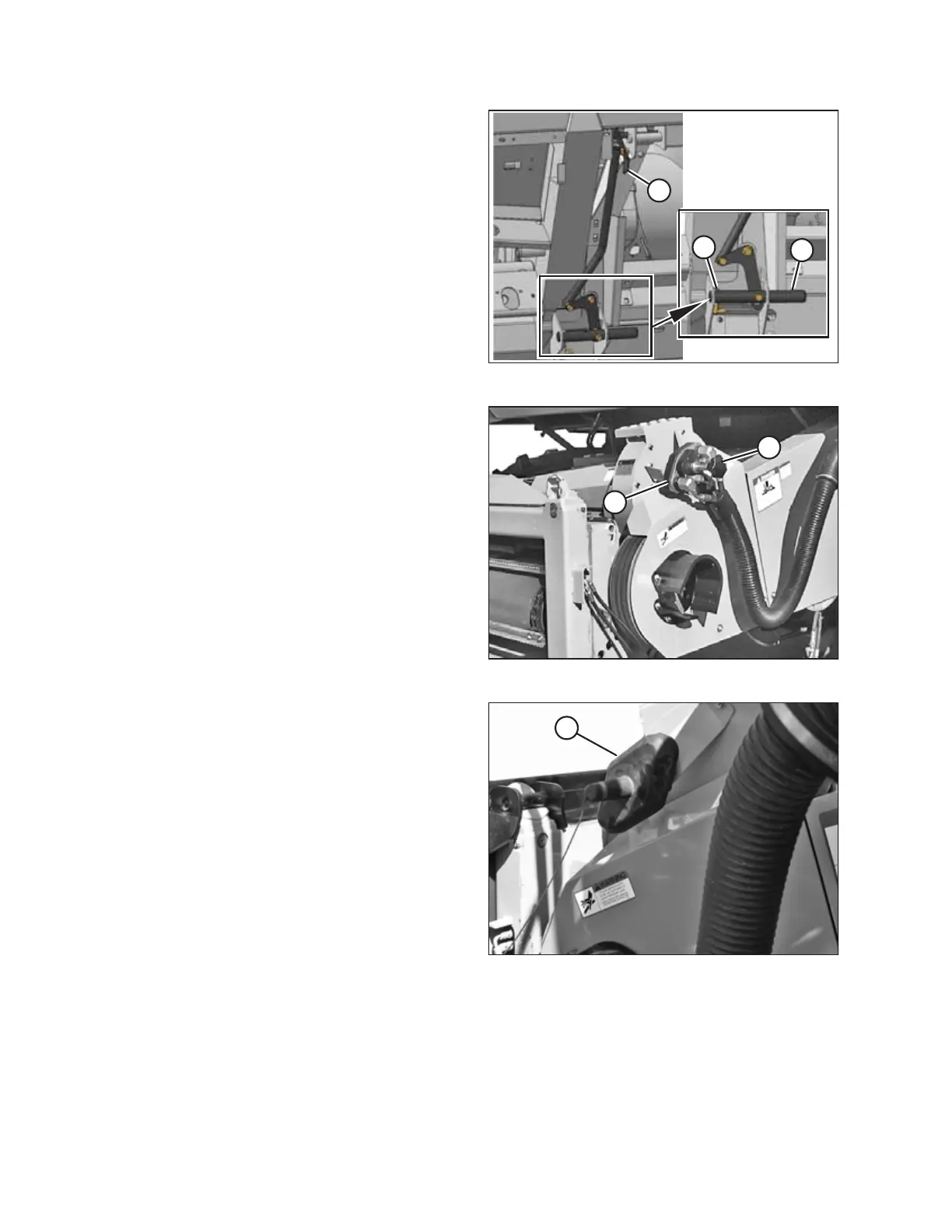

Figure 5.58: Engaging Pins
6. Lower handle (A) to engage adapter pin (B) into the feeder
house. Reinsert locking pin (C) and secure the adapter pin.
7. Shut down the engine, and remove the key from the
ignition.
1001140
A
B
Figure 5.59: Combine Coupler
8. Unscrew knob (A) on combine coupler (B) to release the
coupler from the combine receptacle.
9. Clean the coupler.
1001139
A
Figure 5.60: Receptacle Cover
10. Place CA25 receptacle cover (A) onto the combine
receptacle.
