214323 315 Revision B

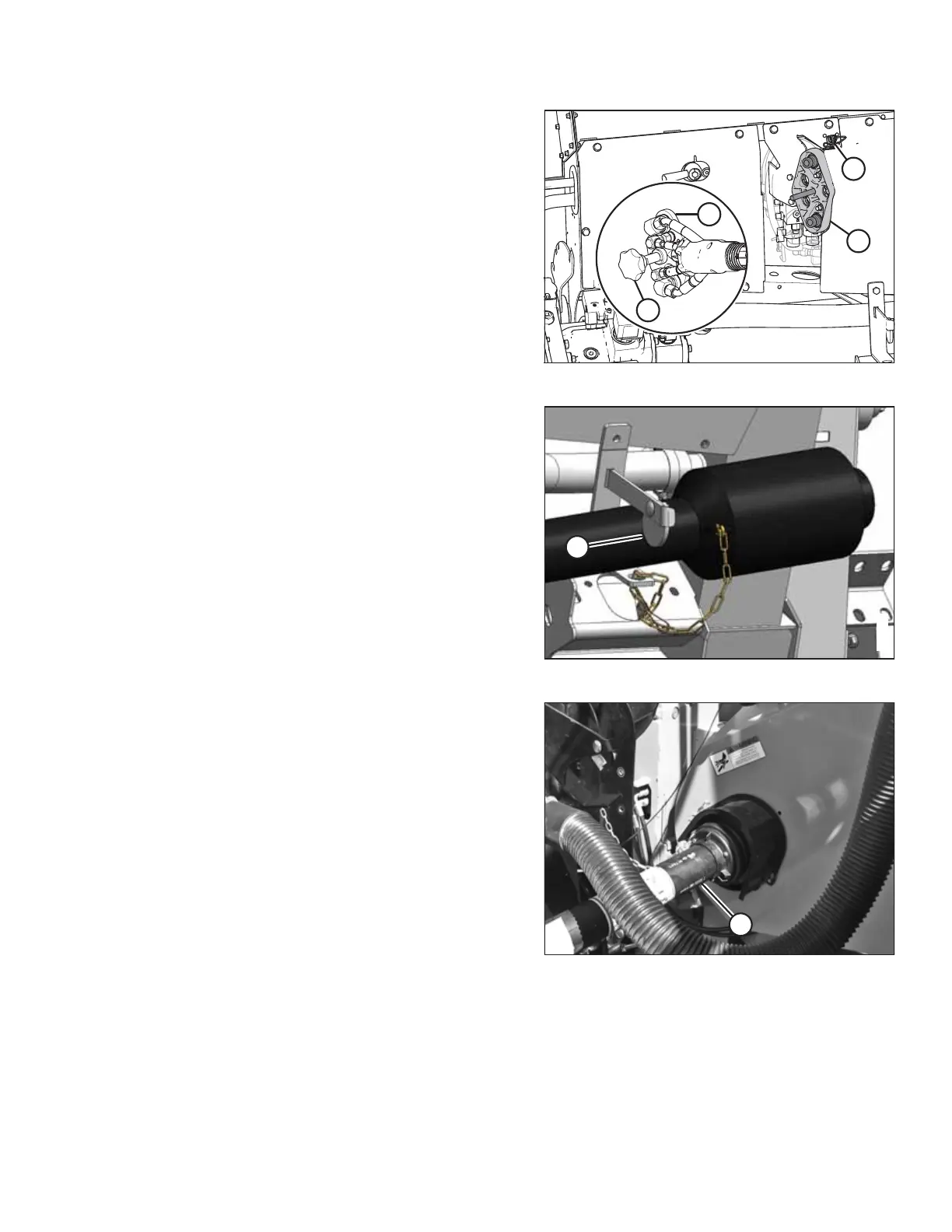

Figure 5.61: Coupler
11. Clean the mating surface of coupler (A), and position the
coupler into receptacle (B).
12. Turn knob (C) to secure the coupler to the receptacle.
13. Connect the combine harness to reel fore-aft/header tilt
selector receptacle (D).
Figure 5.62: Driveline
14. Rotate disc (A) on the adapter driveline storage hook, and
remove the driveline from the hook.
Figure 5.63: Driveline and Output Shaft
15. Attach driveline (A) to the combine output shaft.
HEADER ATTACHMENT/DETACHMENT
