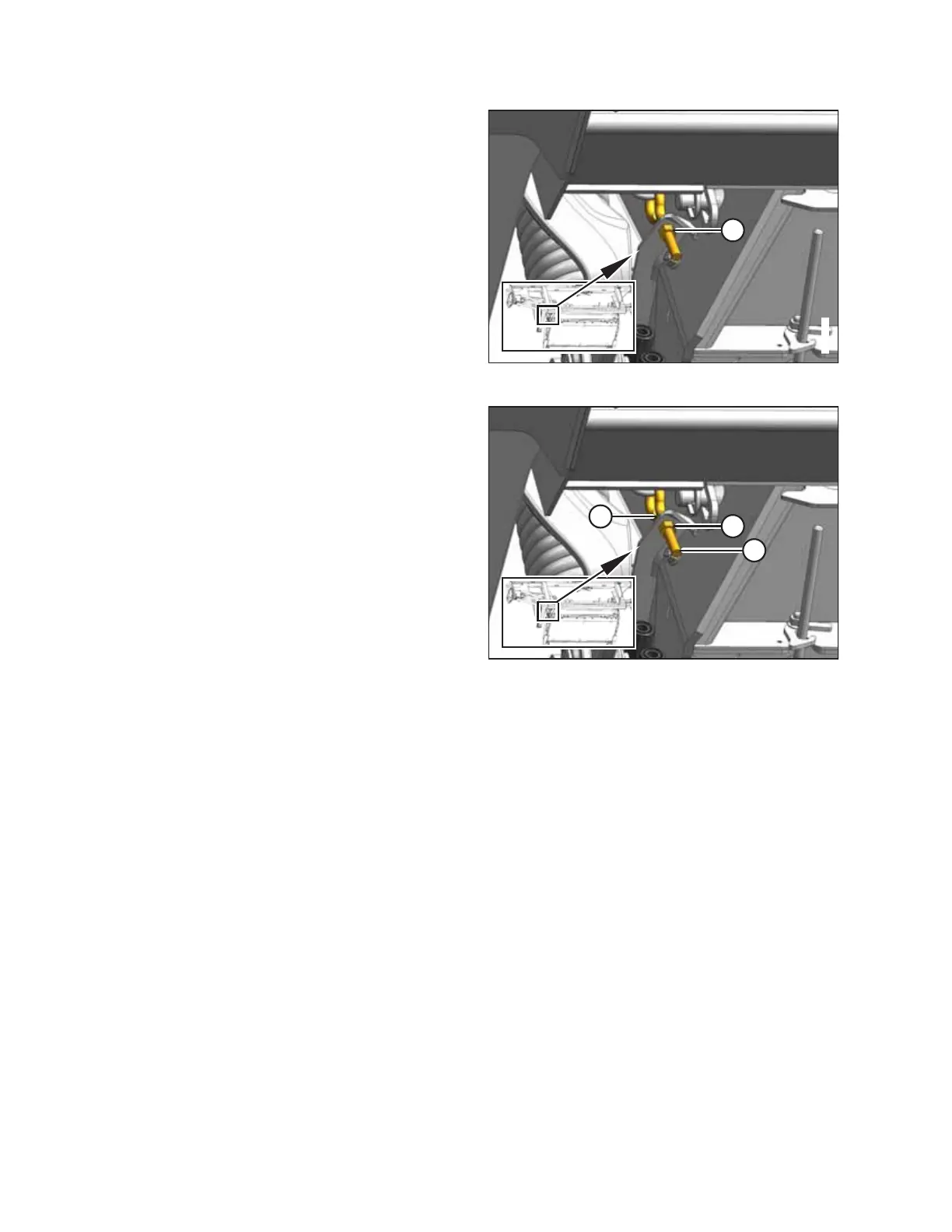

Figure 3.23: Spring Tensioner
4. At the left back corner of the header, check the thread
length protruding past nut (A). The length should be
15 mm (0.60 in.). If the protruding thread length is not
correct, proceed to Step 5, page 50.
Figure 3.24: Spring Tensioner
5. Loosen upper jam nut (A) on the spring tensioner.
6. Turn lower nut (B) until thread (C)
protrudes 15 mm (0.60 in.).
7. Tighten jam nut (A).
8. Repeat Step 4, page 50 to Step 7, page 50 on the
opposite side.
3.6.4 Reel Settings
The adjustable reel settings and positions can optimize header performance in various crops.
Refer to for applicability of each finger pattern and reel position.
