MacDon FlexDraper FD75 - Calibrating Header - Gleaner S9 Series

214323 210 Revision B
1018433
A

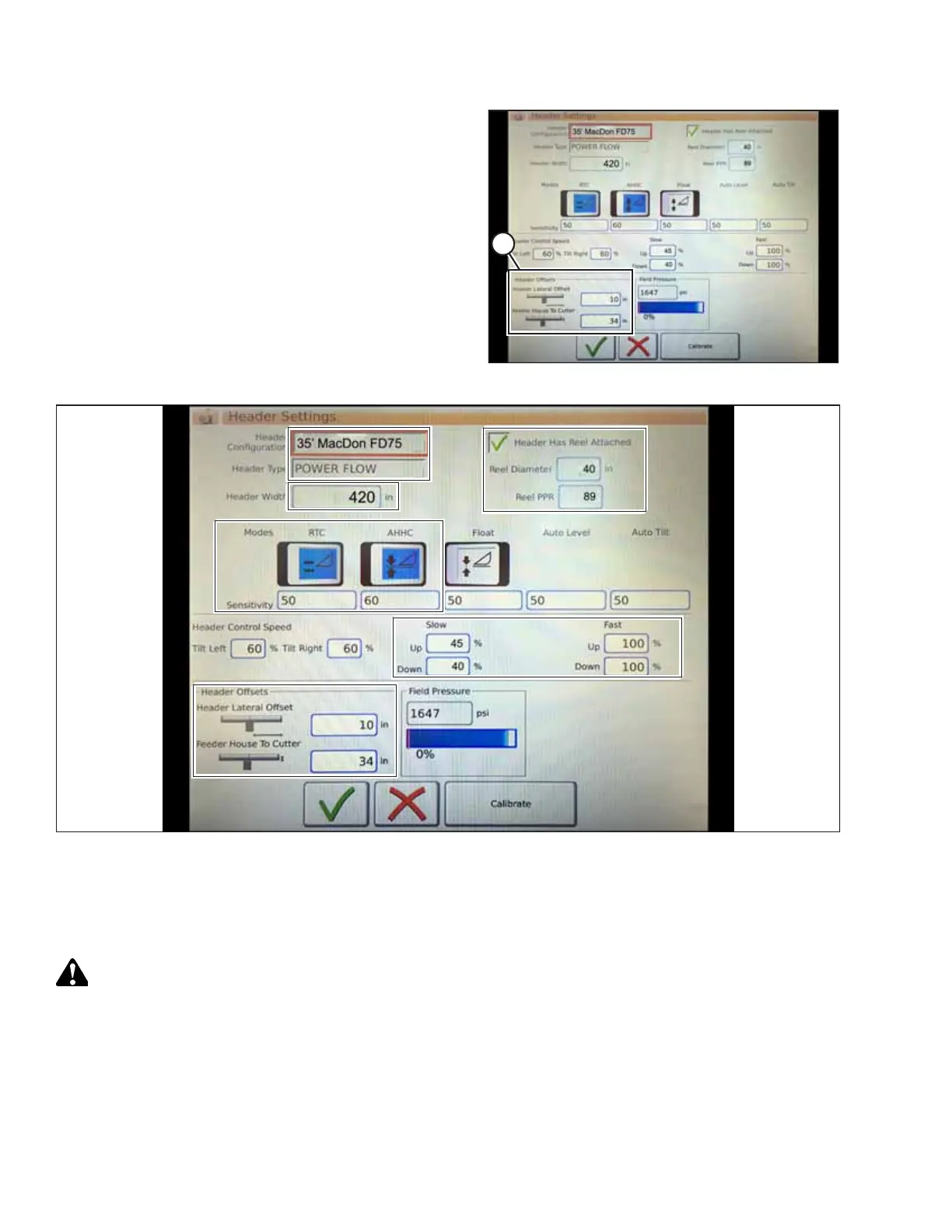

Figure 4.158: Header Offset Settings
4. Header offsets (A): Offset distances are important for yield
mapping. There are two dimensions that can be adjusted
on the HEADER SETTINGS page:
• Header lateral offset: this is the distance between the
centerline of the header and the centerline of the
machine. This should be set at 0 for a MacDon header.
• Feeder house to cutter: this is the distance from the
machine interface to the cutterbar. This should be set to
68 for a MacDon header.
1018472
Figure 4.159: Header Settings Inputs for MacDon Headers
4.13.4 Calibrating Header – Gleaner
®
S9 Series
The auto header height control (AHHC) sensor output must be calibrated for Gleaner
®
S9 Series combines, or the AHHC
feature will not work properly.
DANGER
Never start or move the machine until you are sure all bystanders have cleared the area.
NOTE:
Changes may have been made to the combine controls or the display since this document was published. Refer to the
combine operator’s manual for updated information.
AUTO HEADER HEIGHT CONTROL
