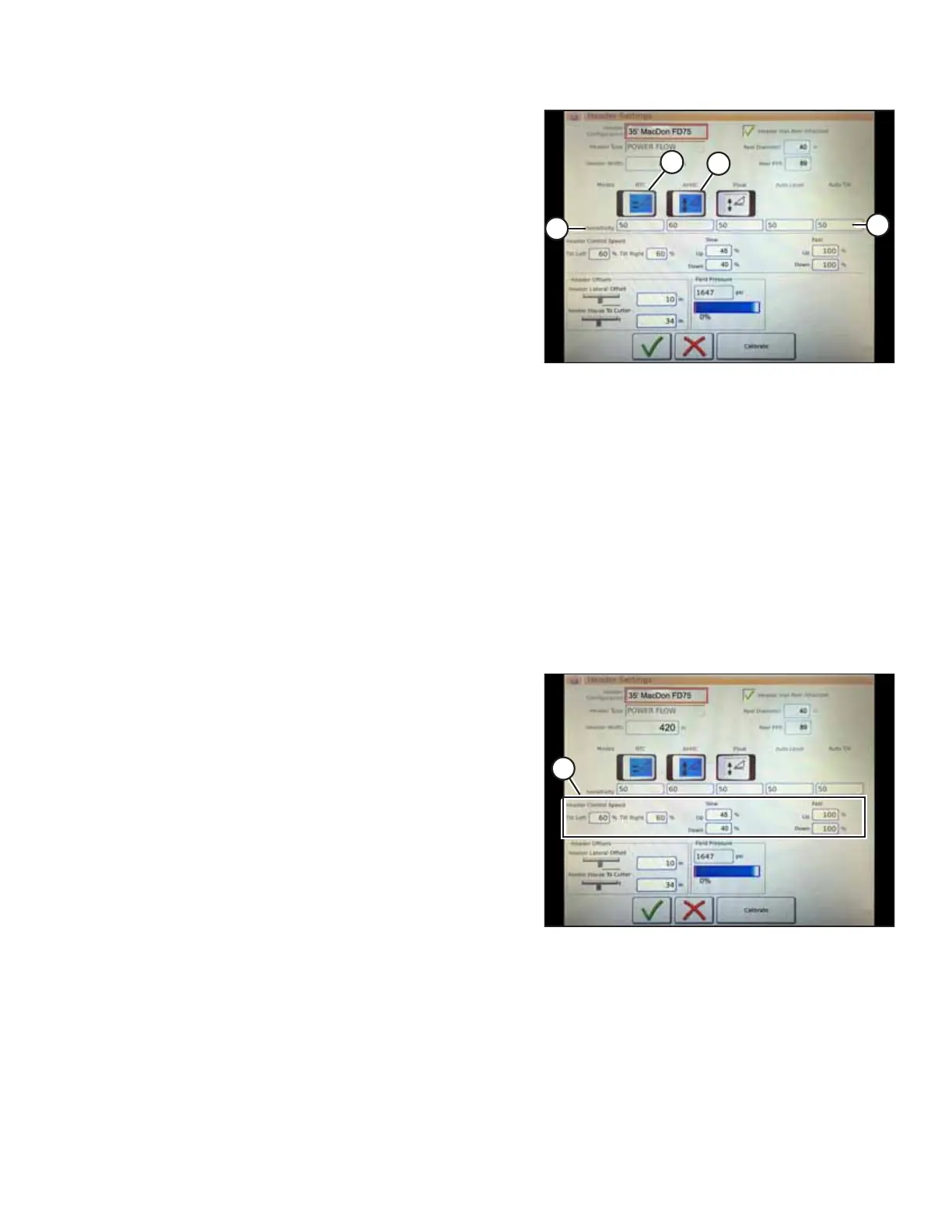

Figure 4.156: Automatic Controls and Sensitivity
Settings
1. Automatic control functions: there are toggle (OFF/ON)
switches on the HEADER SETTINGS page for automatic
height control functions. For MacDon headers, ensure that
the following functions are enabled:
• RTC (return to cut) (A)
• AHHC (B)
All other switches should be disabled (that is, not
highlighted).
2. Sensitivity setting (C) controls how responsive a control
(RTC or AHHC) is to a given change in sensor feedback. The
setting fields are located directly below the toggle switches.
To enter a new sensitivity setting, touch the setting field
below the specific toggle switch, and enter a new value
using the on-screen keyboard.
• If the combine does not change feeder house position
quickly enough when in Auto Mode, increase the
sensitivity.
• If the combine hunts for a position in Auto Mode,
decrease the sensitivity.
NOTE:
The recommended sensitivity settings for MacDon
headers are:
• 50 for RTC (A)
• 60 for AHHC (B)
Figure 4.157: Header Speed Control Settings
3. Header speed: the header tilt and raise/lower speed can be
adjusted in HEADER CONTROL SPEED area (A) of the
HEADER SETTINGS page.
• The tilt left and right function is a lateral tilt of the
combine faceplate.
• The header raise/lower function uses a two-detent
button: the first detent is a slow raise/lower rate; the
second detent is a fast raise/lower rate.
NOTE:
The recommended header control speed settings for
MacDon headers are:
• Slow: 45 up and 40 down
• Fast: 100 up and 100 down
AUTO HEADER HEIGHT CONTROL
