MacDon FlexDraper FD75 - Changing Oil in Hydraulic Reservoir

214323 368 Revision B
1001384
A

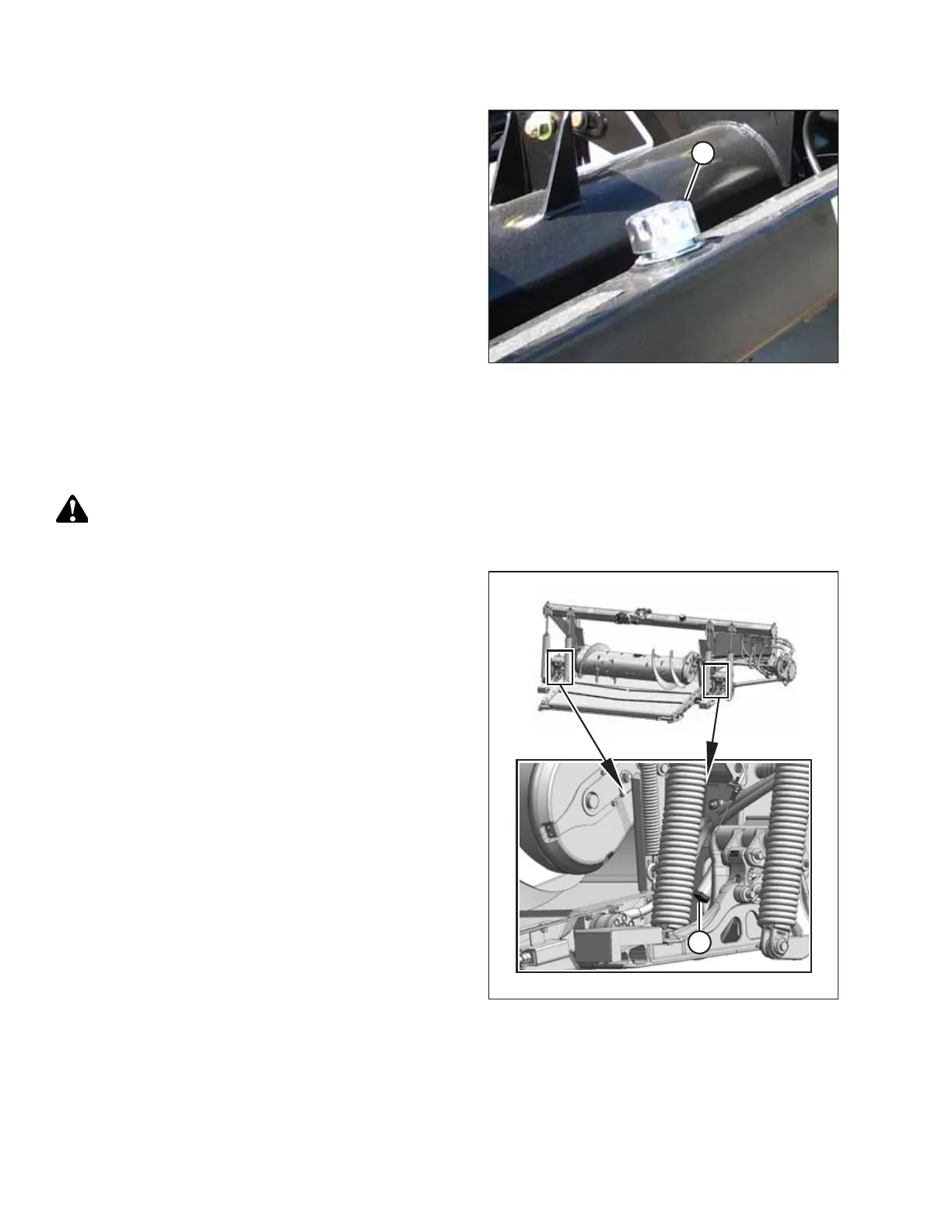

Figure 6.30: Oil Reservoir Filler Cap
1. Shut down the combine, and remove the key from the
ignition.
2. Clean any dirt or debris from filler cap (A).
3. Loosen and remove the filler cap (A) by turning it
counterclockwise.
4. Add warm oil (approximately 21°C [70°F]) and fill to the
required level. Refer to the inside back cover for
specifications.
IMPORTANT:
Warm oil will flow through the screen better than cold oil.
Do NOT remove the screen.
5. Reinstall filler cap (A).
6.4.3 Changing Oil in Hydraulic Reservoir
Change the hydraulic oil in the reservoir every 1000 hours or 3 years (whichever comes first).
DANGER
To prevent bodily injury or death from the unexpected start-up of the machine, always stop the engine and remove the
key from the ignition before leaving the operator’s seat for any reason.
1013989
A
Figure 6.31: Reservoir Drain
1. Detach the header from the adapter. For instructions, refer
to 5 Header Attachment/Detachment, page 289.
2. Raise the feeder house and engage the lift cylinder
safety props.
3. Place a suitably sized container (at least 30 liters
[8 US gallons]) under each of two oil drain plugs (A) located
at the base on each side of the frame.
4. Remove oil drain plugs (A) with a 1-1/2 in. hex socket and
allow the oil to drain.
5. Replace oil drain plugs (A) when reservoir is empty.
6. Change the oil filter, if necessary. For instructions, refer to
6.4.4 Changing Oil Filter, page 369.
7. Add approximately 60 liters (16 US gallons) of oil to the
reservoir. For instructions, refer to 6.4.2 Adding Oil to
Hydraulic Reservoir, page 367.
MAINTENANCE AND SERVICING
