MacDon FlexDraper FD75 - Auger; Adjusting Auger to Pan Clearance

214323 379 Revision B
6.7 Auger
The Combine Adapter auger feeds the cut crop from the draper decks into the combine feeder house.
6.7.1 Adjusting Auger to Pan Clearance
DANGER
To prevent bodily injury or death from the unexpected start-up of the machine, always stop the engine and remove the
key from the ignition before leaving the operator’s seat for any reason.
IMPORTANT:
Maintain an appropriate distance between auger and auger pan. Too little clearance may cause tines or flighting to contact
and damage feed draper or pan when operating header at certain angles. Look for evidence of contact when greasing
adapter.
1. Extend center-link to steepest header angle (setting D), and position header 150–254 mm (6–10 in.) off the ground.
2. Shut down the engine, and remove the key from the ignition.
3. Lock header wings. Refer to Locking/Unlocking Header Wings, page 66.
NOTE:
This applies only to the FlexDraper
®
Header.
1001416
A
B

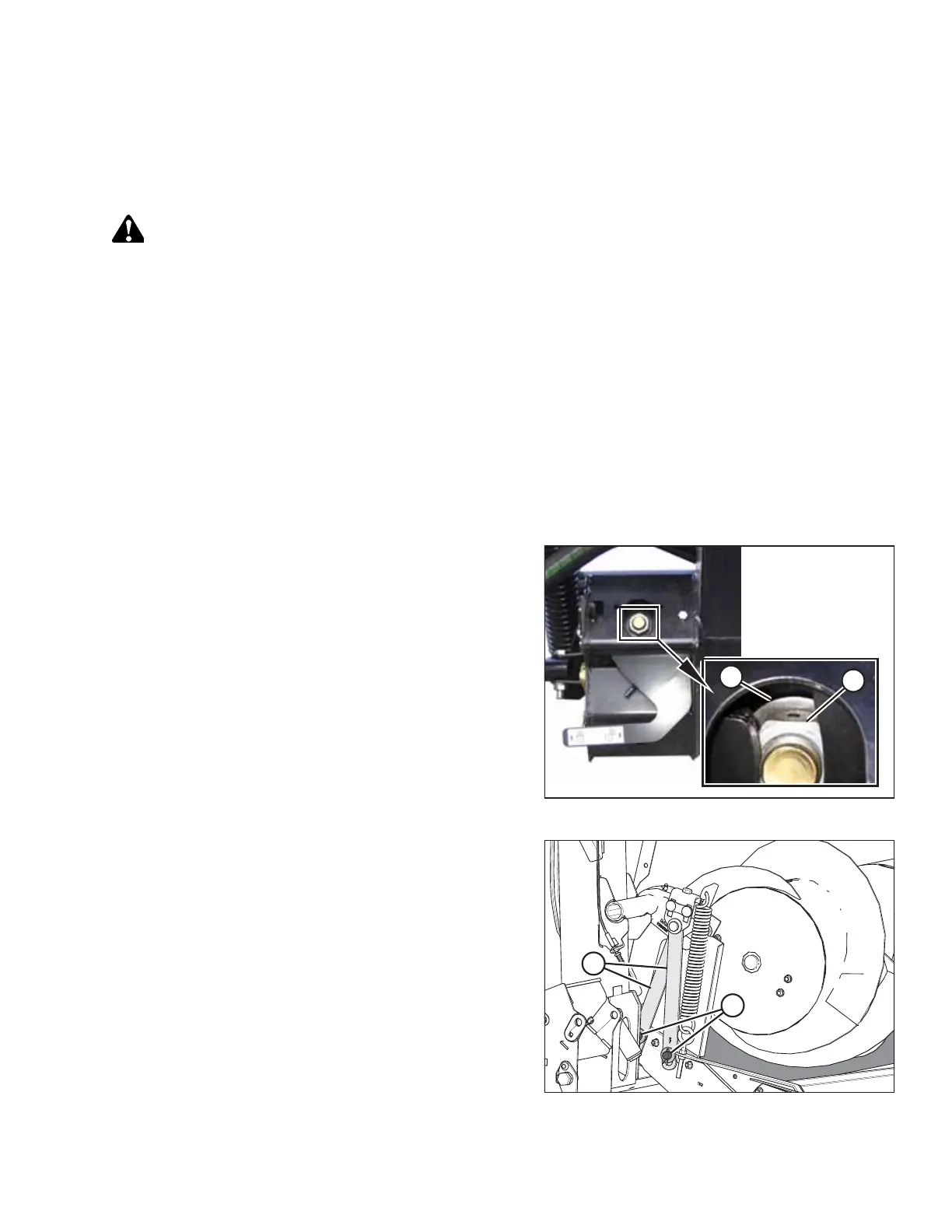

Figure 6.54: Float Lock
4. Ensure the float lock linkage is on down stops (washer [A]
and nut [B] cannot be moved) at both locations.
1009652
B
A
Figure 6.55: Linkage Bars
5. Ensure lower end of linkage bars (A) are against studs (B) at
both ends of the auger.
MAINTENANCE AND SERVICING
