214323 514 Revision B
7.4.3 Stabilizer / Slow Speed Transport Wheels
Stabilizer/slow speed transport wheels help to stabilize the header in field conditions that would otherwise cause the
header to bounce, resulting in uneven cutting heights.

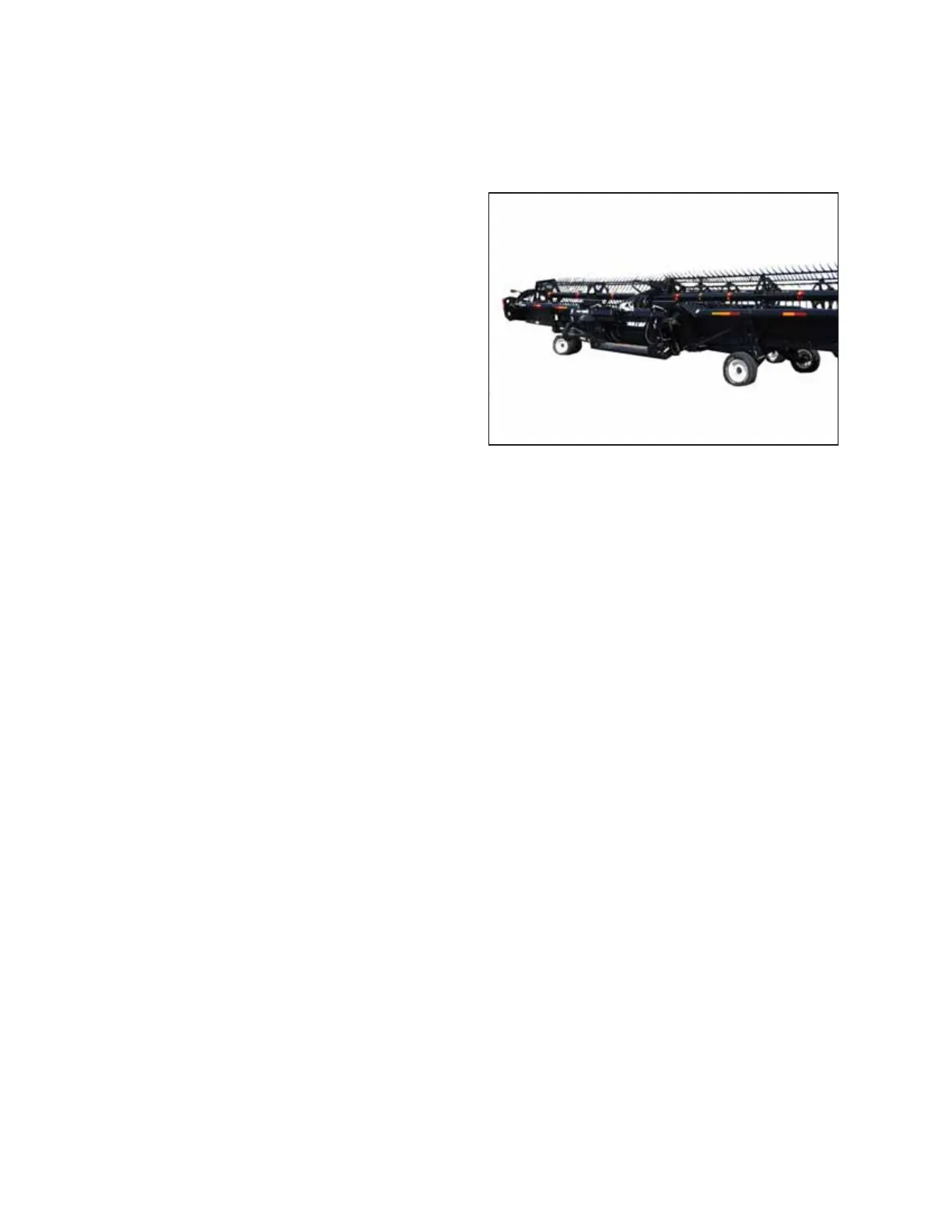

Figure 7.13: Stabilizer/Transport Wheels
This system is similar to the Stabilizer Wheel option. For more
information about that option, refer to 7.4.2 Stabilizer Wheels,
page 513.
Stabilizer/slow speed transport wheels are used to convert the
header into transport mode for slow-speed towing behind a
properly configured combine (or agricultural tractor). A tow
pole and installation instructions are included in the kit.
This option is available for use with
9.1, 10.7, 12.2, and 13.7 m (30, 35, 40, and 45 ft.) headers.
MD #C1997
OPTIONS AND ATTACHMENTS
