MacDon FlexDraper FD75 - Installing Driveline Guard

214323 375 Revision B

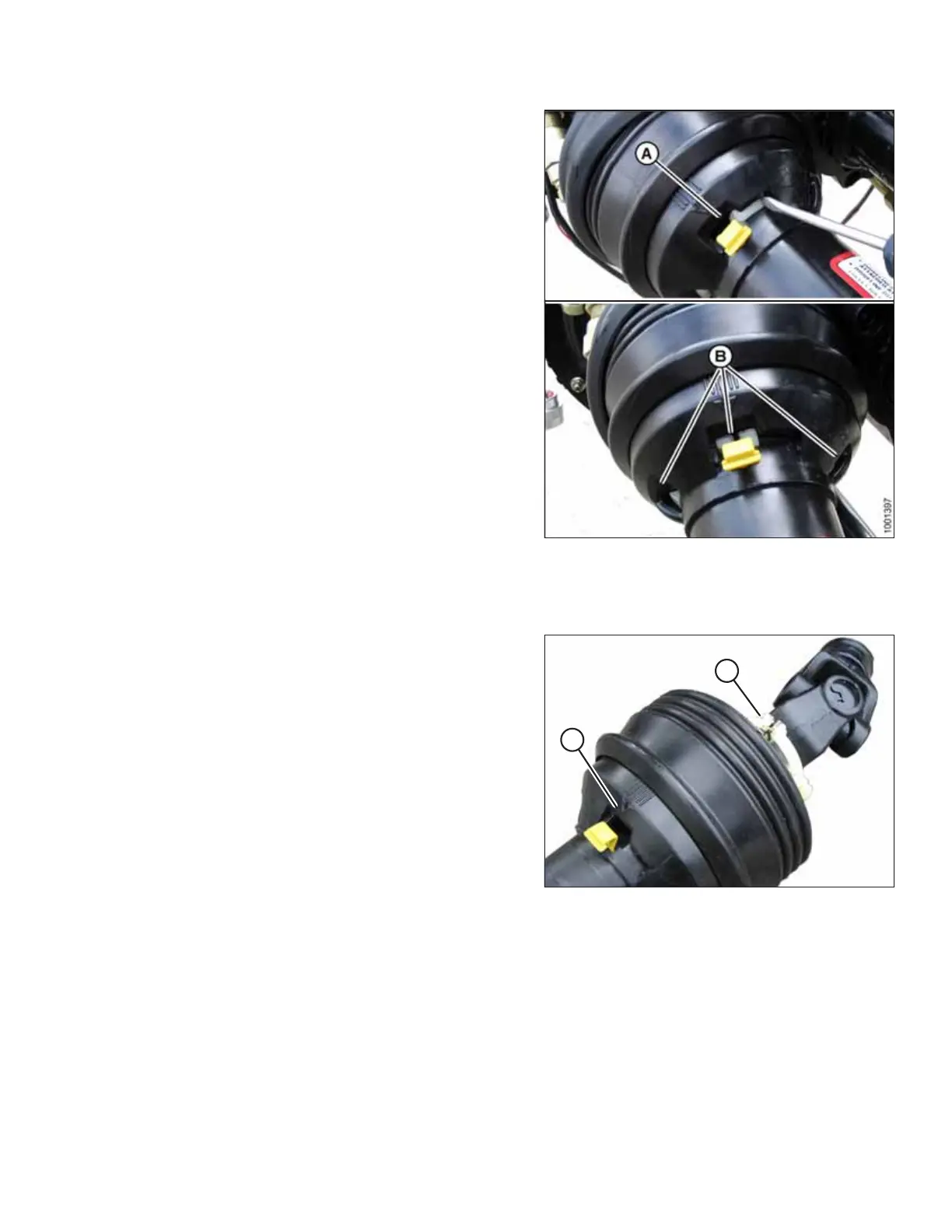

Figure 6.46: Driveline Guard
5. Rotate driveline guard locking ring (A) counterclockwise
using a screwdriver until lugs (B) line up with the slots in
the guard.
6. Pull the guard off the driveline.
6.6.4 Installing Driveline Guard
1001398
A
B
Figure 6.47: Driveline Guard
1. Slide the guard onto the driveline, and line up the slotted
lug on locking ring (A) with arrow (B) on the guard.
