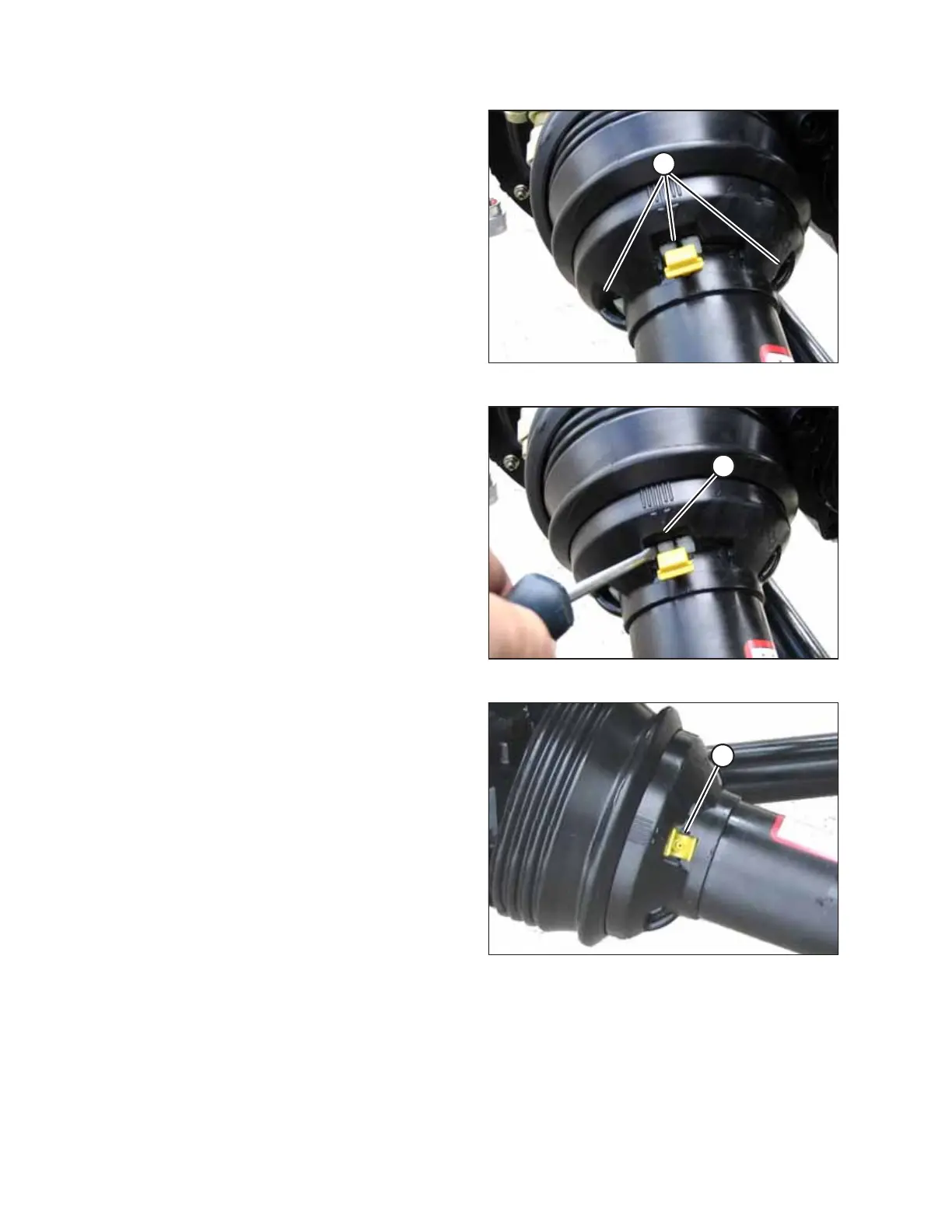

Figure 6.48: Driveline Guard
2. Push the guard onto the ring until the locking ring is visible
in slots (A).
1001401
A
Figure 6.49: Driveline Guard
3. Use a slotted screwdriver to rotate ring (A) clockwise and
lock ring in guard.
1001403
A
Figure 6.50: Driveline Guard
4. Push grease zerk (A) back into the guard.
