MacDon FlexDraper FD75 - Installing Knife Drive Box

214323 403 Revision B
1017936
A
B
C
D
E

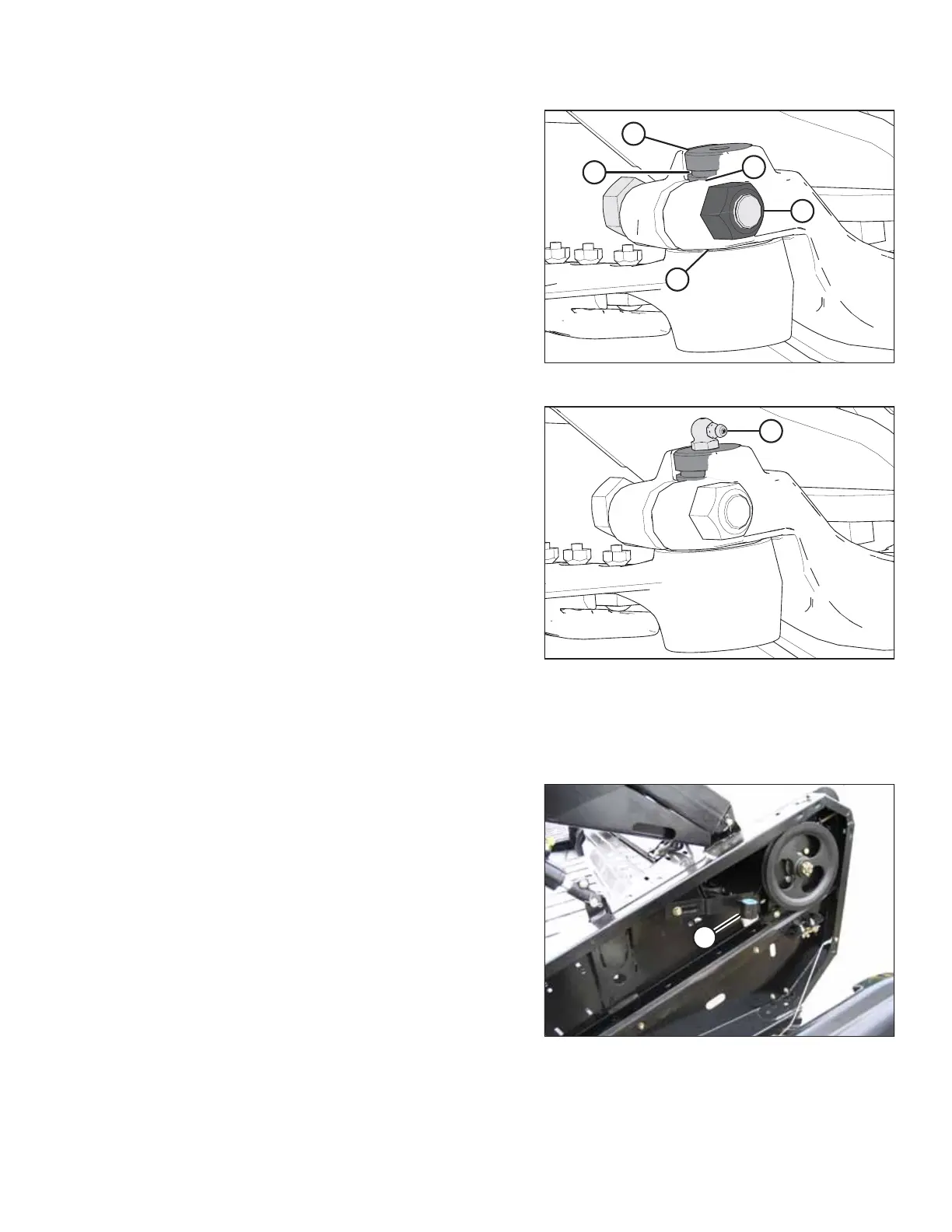

Figure 6.106: Knifehead
6. Install knifehead pin (A) through the output arm and into
the knifehead. Tap knifehead pin (A) down, and make sure
the pin is seated at the bottom of the knifehead.
7. Set groove (B) in the knifehead pin 1.5 mm (1/16 in.) above
output arm (C). Secure it with 5/8 in. x 3 in. hex head bolt
and nut (D), and torque the hardware to
217 Nm (160 lbf ft).
8. Using a feeler gauge, check that the gap at location (E) is
0.25 mm (0.01 in.).
1002943
A
Figure 6.107: Knifehead
9. Install grease fitting (A) into the knifehead pin, and turn the
grease fitting for easy access.
IMPORTANT:
Grease the knifehead just enough to start a slight
downward movement. Overgreasing will lead to knife
misalignment which causes the guards to overheat and the
drive systems to overload.
6.8.6 Spare Knife
A spare knife can be stored in the header frame tube at the left end of the header.
1013792
A
Figure 6.108: Spare Knife
Ensure spare knife (A) is secured in place.
MAINTENANCE AND SERVICING
