214323 66 Revision B
Locking/Unlocking Header Float
Two header float locks (one on each side of the adapter) lock and unlock the header float system.
IMPORTANT:
The float locks must be engaged when the header is being transported with the adapter attached so there is no relative
movement between the adapter and the header. The float locks also must be locked when detaching from the combine to
enable the feeder house to release the adapter.

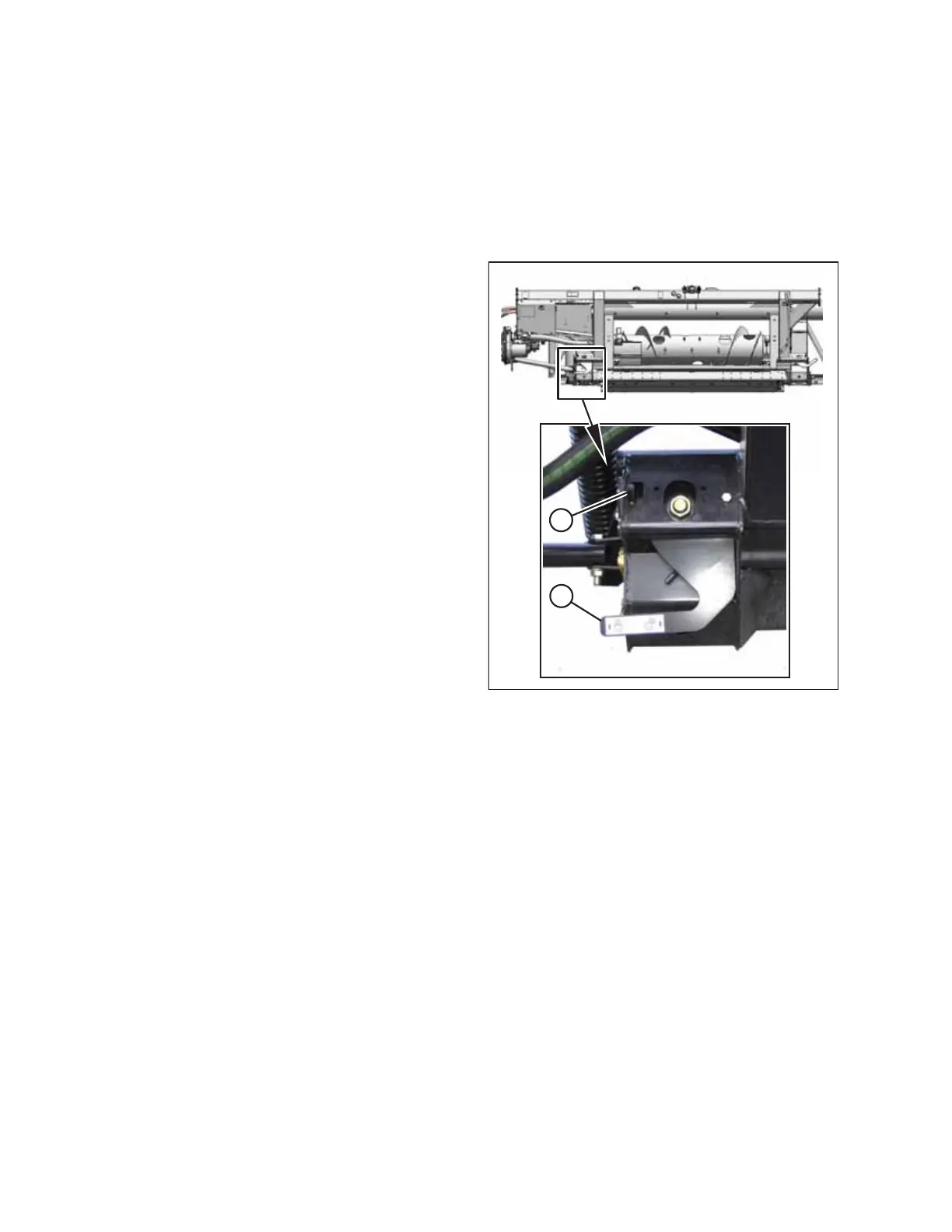

Figure 3.47: Float Lock
1. Disengage each float lock (unlock) by moving latch (A)
downwards and moving lever (B) down to its lowest
position. In this position, the header is unlocked and can
float with respect to the adapter.
2. Engage each float lock (lock) by moving lever (B) upwards
to its highest position. In this position, the header cannot
move with respect to the adapter.
Locking/Unlocking Header Wings
The FD75 FlexDraper
®
Header is designed to operate with the cutterbar on the ground. The three header sections move
independently to follow the ground contours. In this mode, each wing is unlocked and is free to move up and down.
The FD75 FlexDraper
®
Header can also be operated as a rigid header with the cutterbar straight. A typical application is in
cereals when cutting above the ground. In this mode, the wing is locked.
Operating in Flex Mode
The three sections move independently to follow the ground contours.
Unlock the wings as follows:
OPERATION
