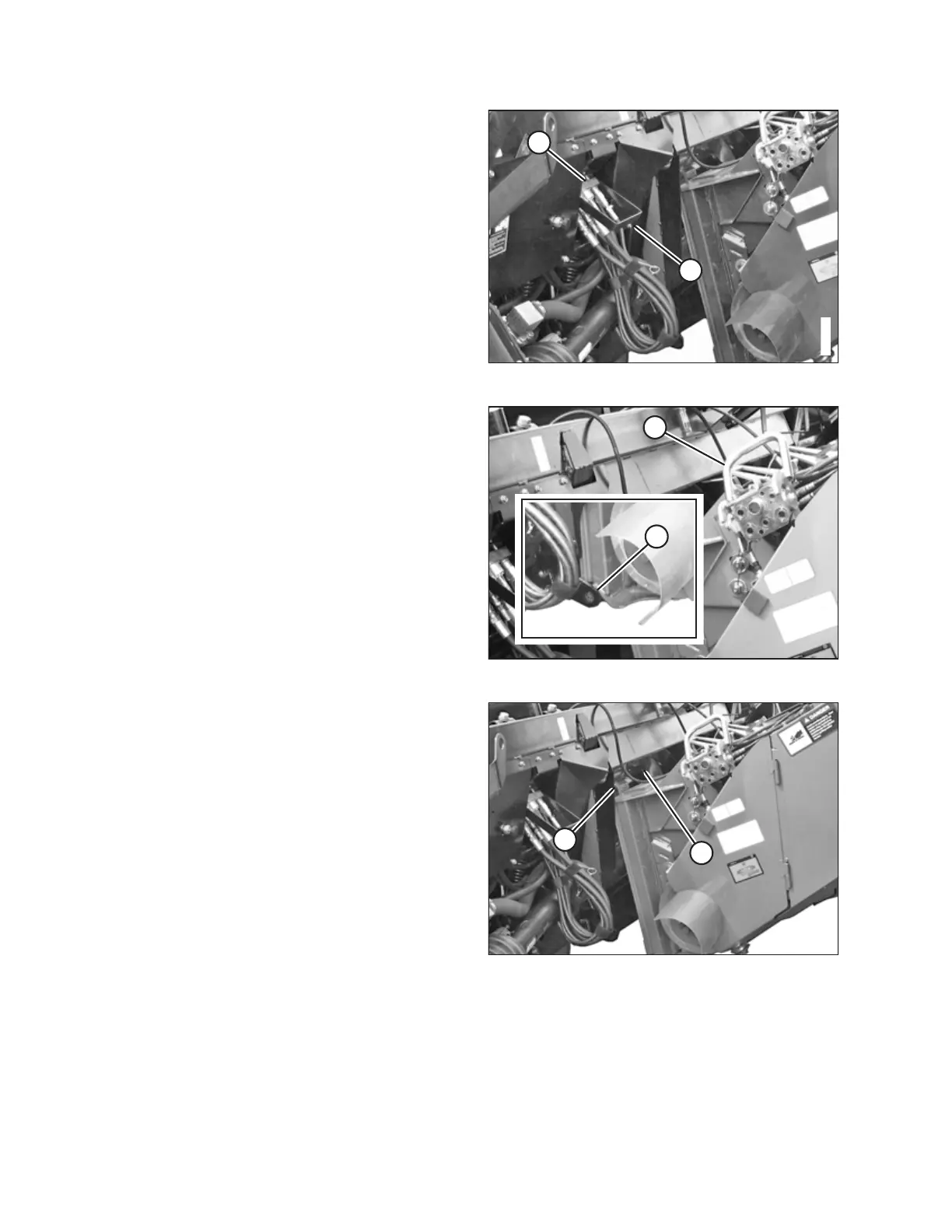

Figure 5.52: Multicoupler Storage
10. Position multicoupler (A) on the adapter receptacle and
lower handle (B) to lock the multicoupler.
Figure 5.53: Feeder House Locks
11. Push handle (A) on the combine towards the feeder house
to disengage feeder house pin (B) from the adapter.
Figure 5.54: Header/Feeder House
12. Lower the feeder house until saddle (A) disengages and
clears adapter support (B).
13. Back the combine away slowly from the adapter.
HEADER ATTACHMENT/DETACHMENT
