MacDon FlexDraper FD75 - Page 329

214323 311 Revision B
B
A
1001420

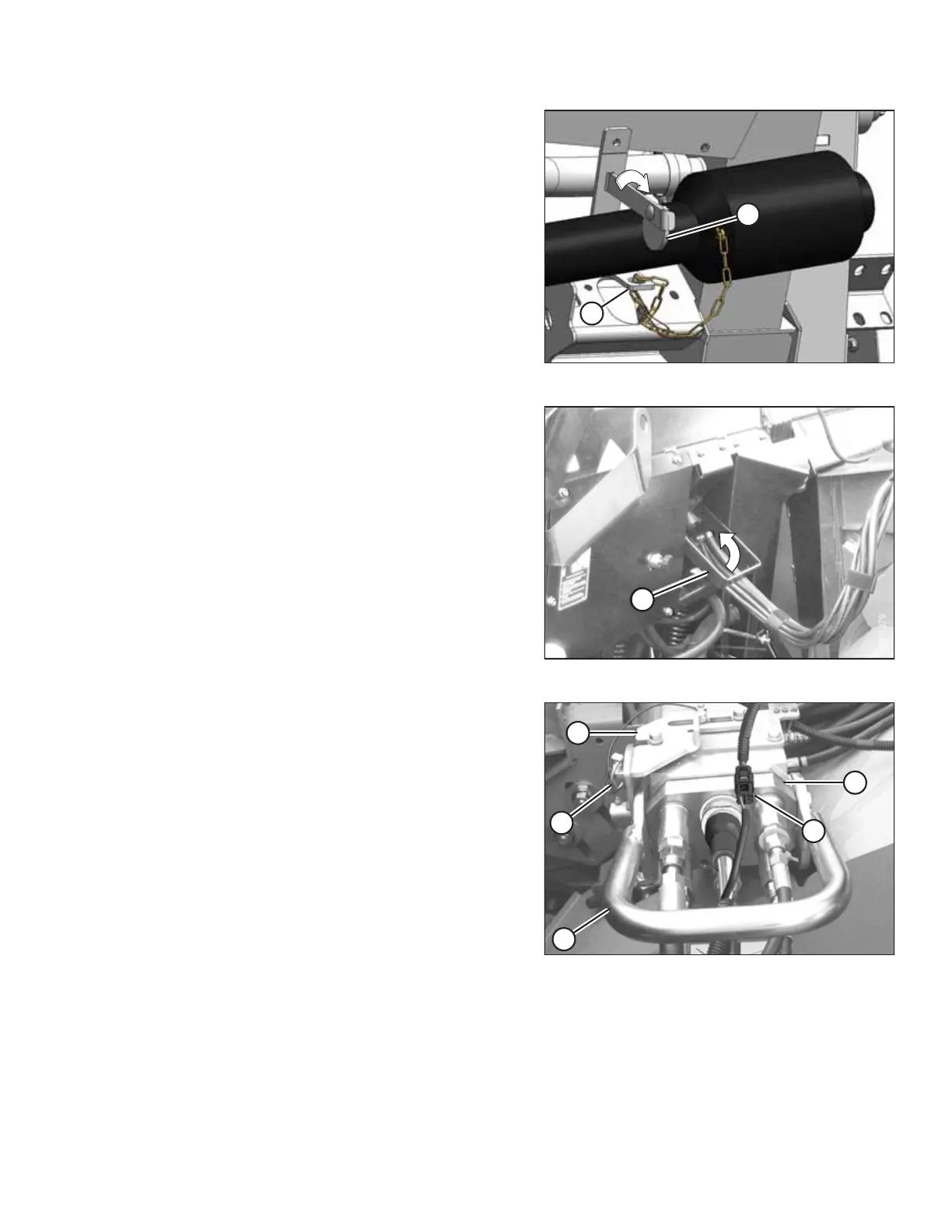

Figure 5.49: Driveline
5. Slide driveline into the hook (A) until disc (B) drops.
1001379
A
Figure 5.50: Multicoupler Storage
6. Lift handle (A) on the adapter.
1001135
E
B
C
D
A
Figure 5.51: Multicoupler
7. Disconnect harness (A) from the combine connector.
8. Remove lynch pin (B) and slide lock (C) to release
handle (D).
9. Lift handle (D) to the vertical position to release
multicoupler (E) from the combine.
