214323 491 Revision B
1012813
A

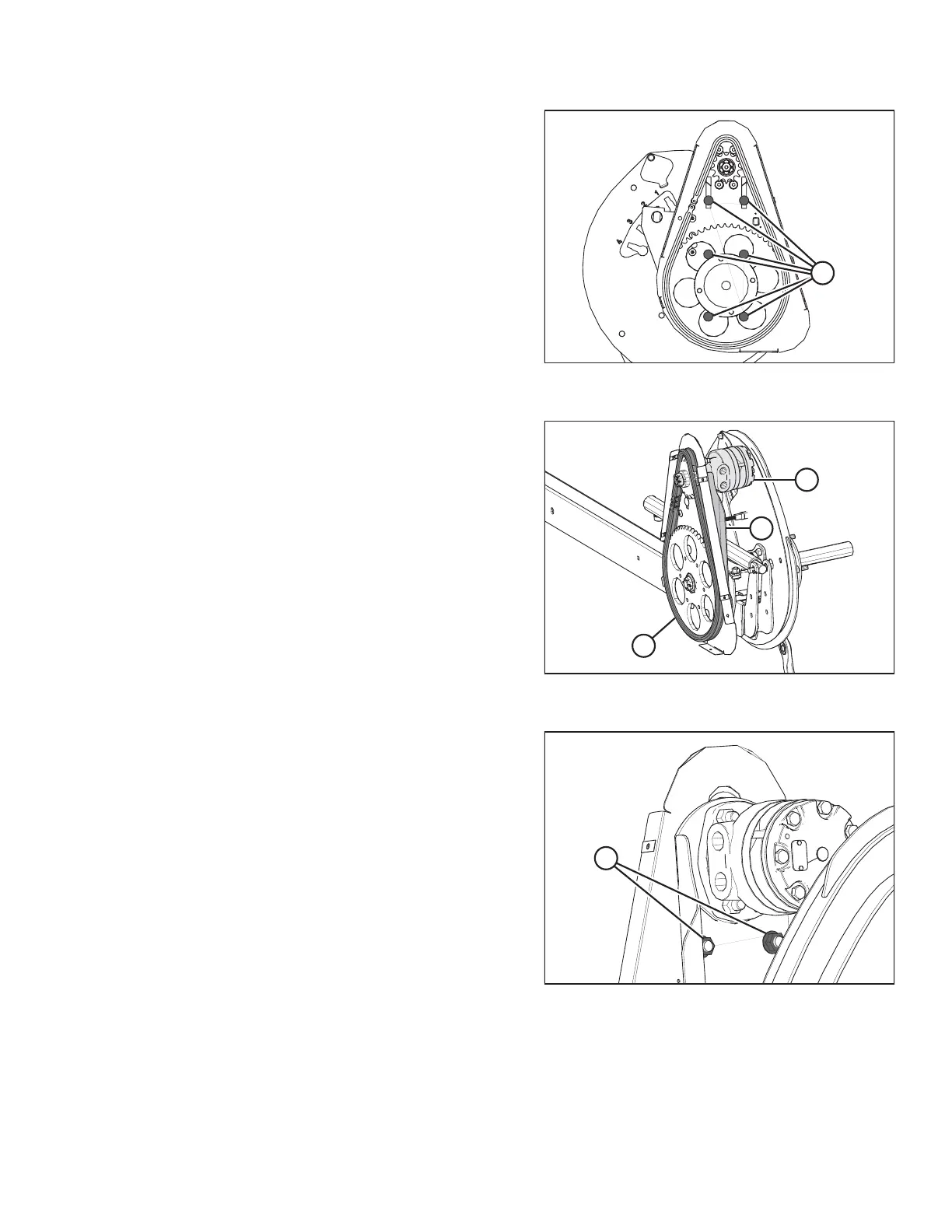

Figure 6.292: Single-Reel Drive Shown – Double Reel
Similar
2. Ensure six bolts (A) securing the motor mount to the chain
case are loose.
1012814
A
B
C
Figure 6.293: Single-Reel Drive Shown – Double Reel
Similar
3. Slide motor (A) and motor mount (B) upward until chain (C)
is tight.
1012815
A
Figure 6.294: Single-Reel Drive Shown – Double Reel
Similar
4. Ensure there is 3 mm (0.12 in.) of slack at the chain
midspan. Adjust it if necessary.
5. Torque nuts (A) to 73 Nm (54 lbf∙ft).
6. Install the drive cover. For instructions, refer to Installing
Reel Drive Cover, page 489.
MAINTENANCE AND SERVICING
