214323 118 Revision B

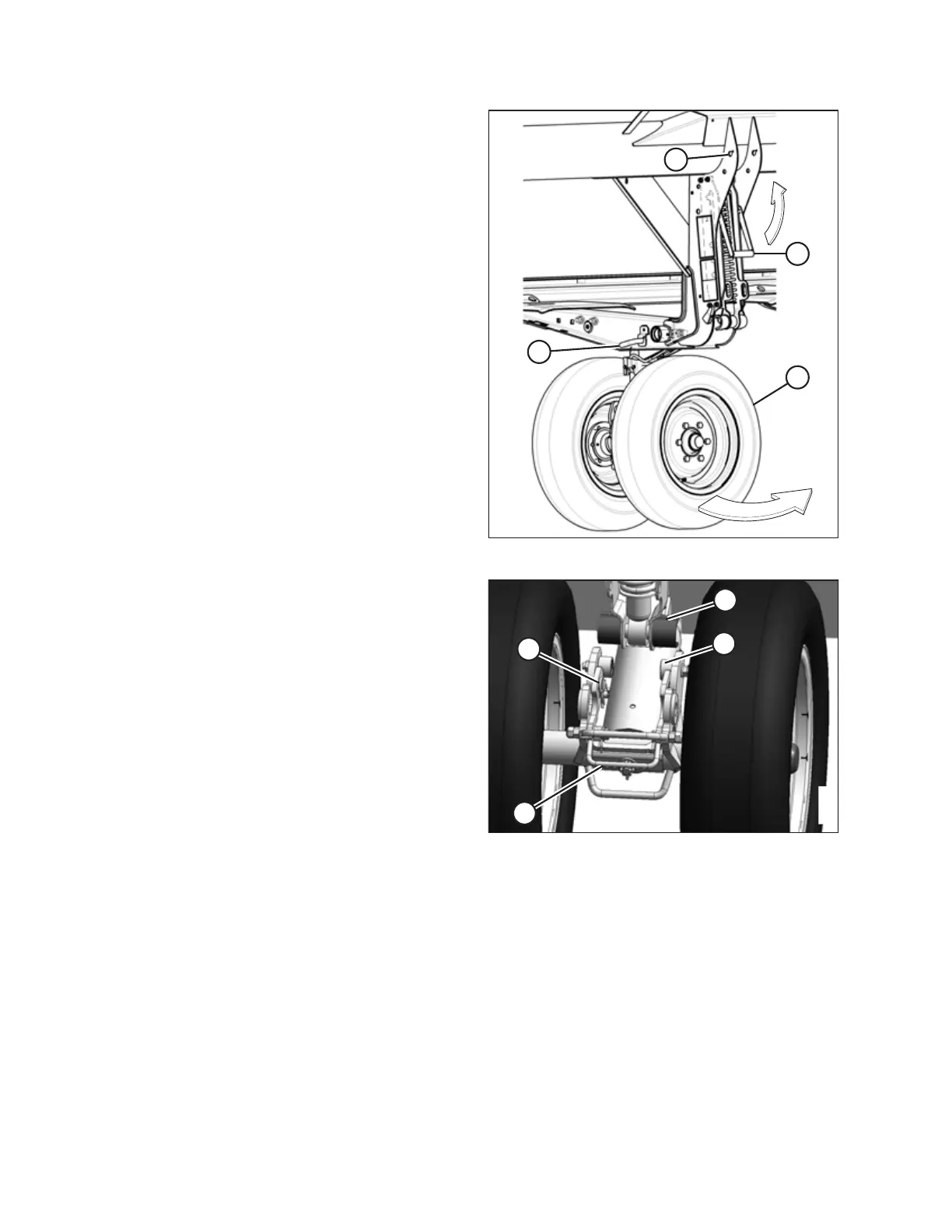

Figure 3.150: Front Wheels – Left
4. Swivel front wheel assembly (A) so the wheels are aligned
with the lower frame.
5. Remove pin (B) and pull the wheel assembly toward the
rear of the header. Store the pin in hole (C) at the top of
the leg.
6. Pull handle (D) upward to release and lower the linkage
into the vertical support.
Figure 3.151: Front Wheels – Left
7. Align lift hook (A) with lug (B) and lift the wheel assembly
to engage the pin in the lift hook. Ensure latch (C) is
engaged.
8. Install clevis pin (D) and secure to the center of the axle
with the hairpin.
OPERATION
