214323 431 Revision B
4. Engage the combine safety props. For instructions, refer to the combine operator’s manual.

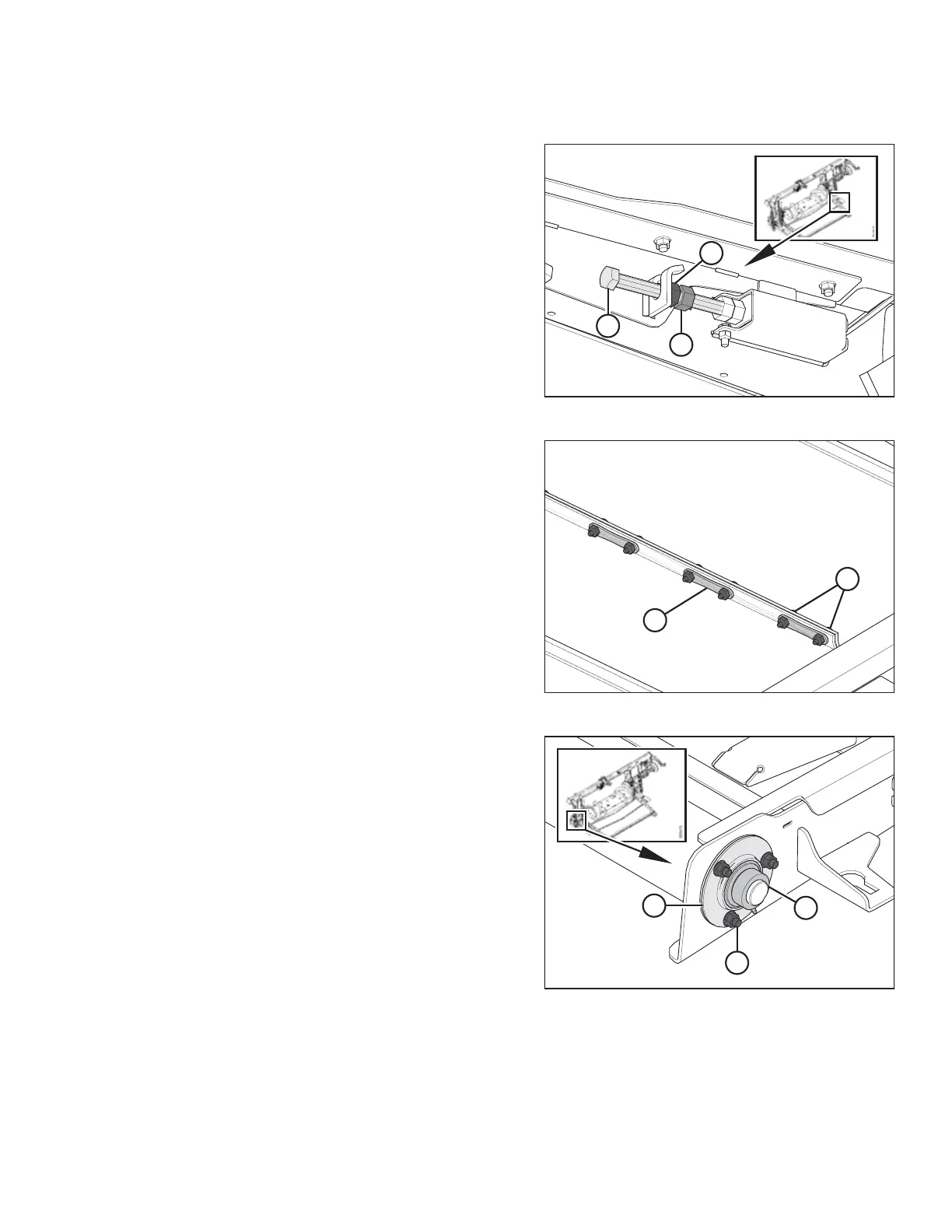

Figure 6.160: Tensioner
5. Loosen jam nut (A) and hold nut (B) with a wrench while
turning bolt (C) counterclockwise to release the draper
tension. Repeat at the opposite side.
Figure 6.161: Draper Connector
6. Remove screws (A) and nuts, and remove draper connector
straps (B).
7. Open the feed draper.
Figure 6.162: Bearing
8. Loosen the set screw and unlock bearing lock collar (A).
9. Remove three nuts and bolts (B).
10. Remove bearing flanges (C) and the bearing.
MAINTENANCE AND SERVICING
