214323 486 Revision B
1005467
A
B

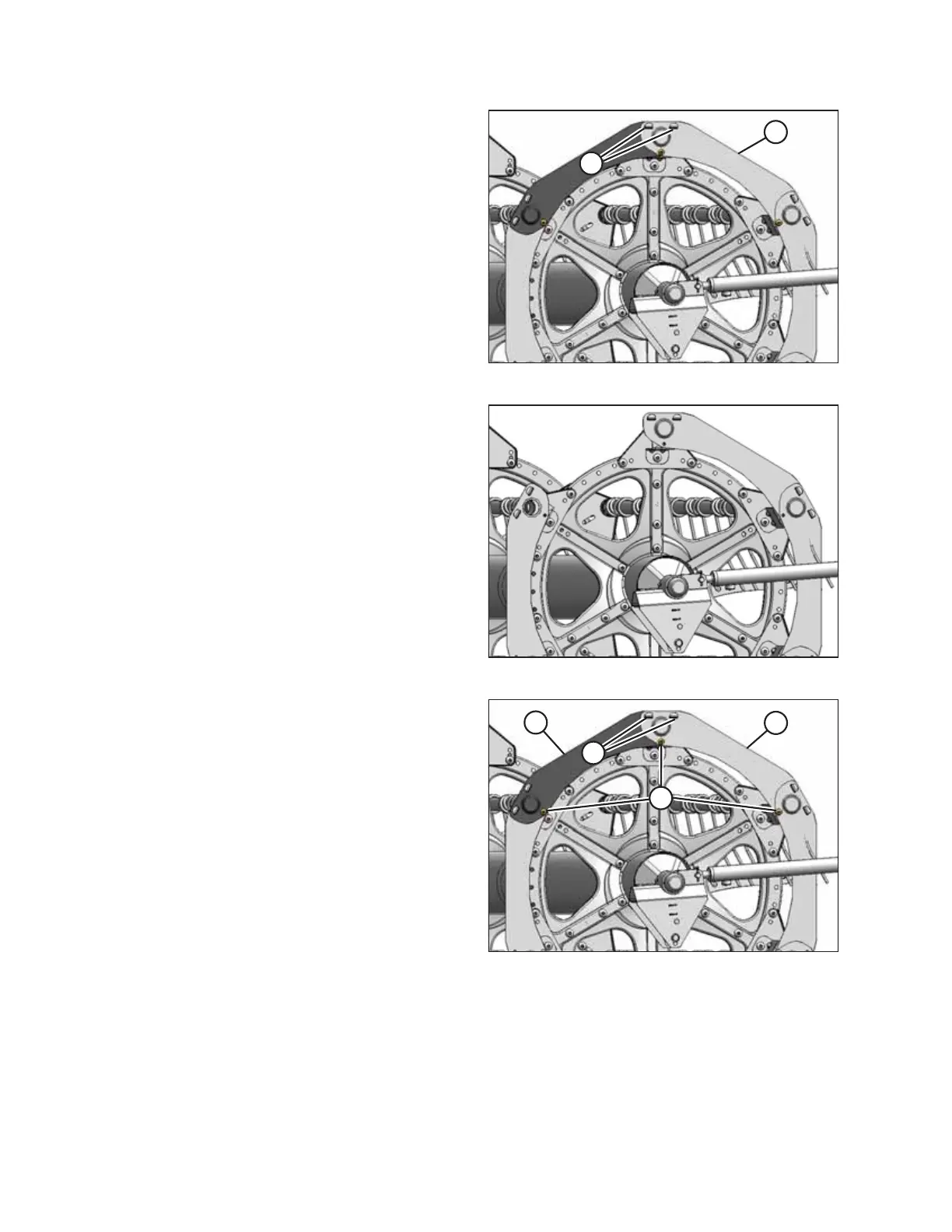

Figure 6.281: Reel Endshields
5. Lift the end of reel endshield (A) off support (B).
1005468
Figure 6.282: Reel Endshields
6. Remove the reel endshield from the supports.
1009537
A
C
D
B
Figure 6.283: Reel Endshields
7. Remove reel endshield (A) from support (B).
8. Install new reel endshield (C) onto support (B).
9. Reattach reel endshield (A) onto support (B), ensuring it is
installed on top of reel endshield (C).
10. Reinstall bolts (D).
11. Tighten all hardware.
MAINTENANCE AND SERVICING
