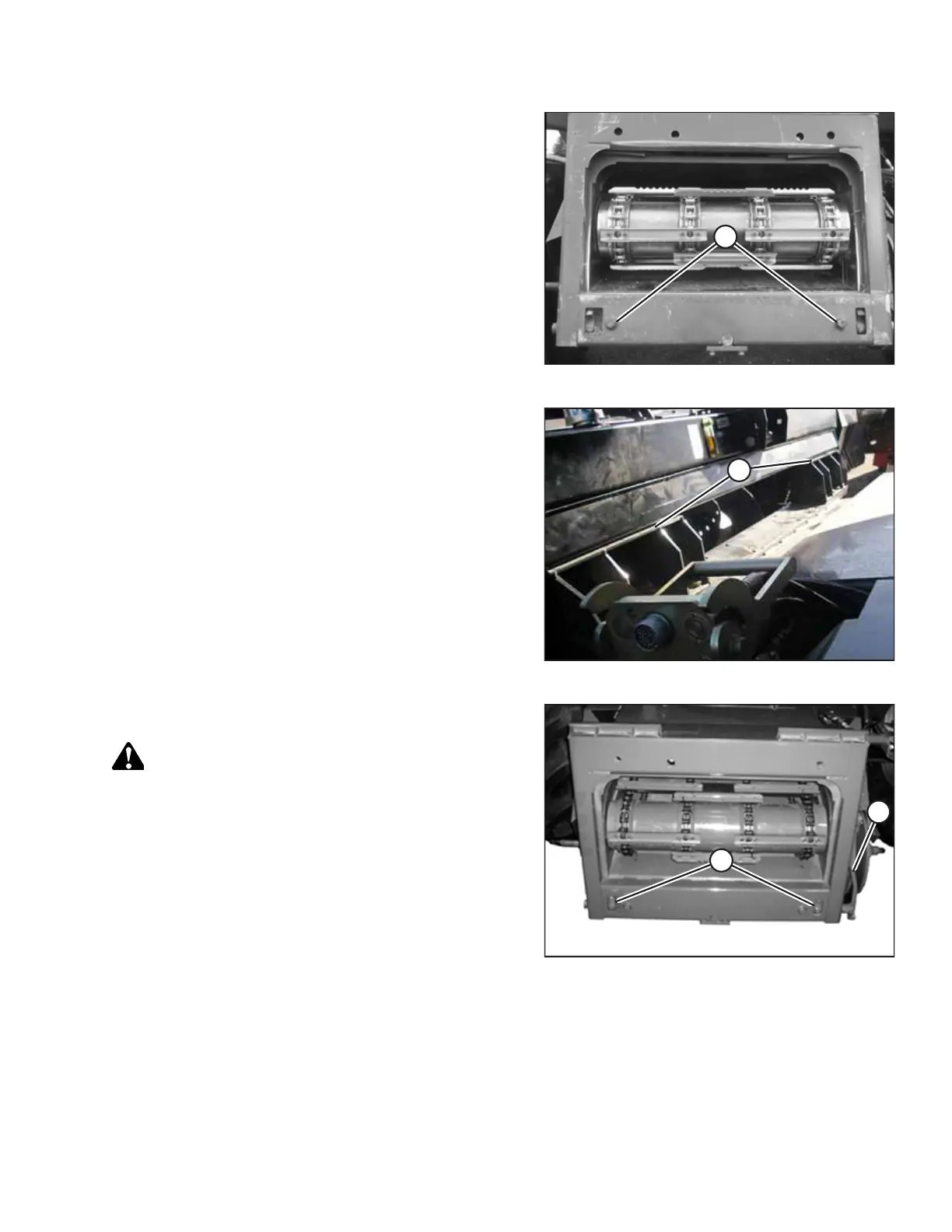

Figure 5.22: Alignment Pins on Feeder House
NOTE:
The feeder house may not be exactly as shown.
1001491
A
Figure 5.23: Feeder House and Adapter
4. Raise the feeder house slightly to lift the header, ensuring
feeder house saddle (A) is engaged in the adapter frame.
5. Shut down the engine, and remove the key from the
ignition.
1001486
B
A
Figure 5.24: Combine Feeder House
6. Use lock handle (B) to engage lugs (A) with the adapter.
DANGER
Never start or move the machine until you are sure all
bystanders have cleared the area.
7. Start the engine, and lower the header.
8. Shut down the engine, and remove the key from the
ignition.
