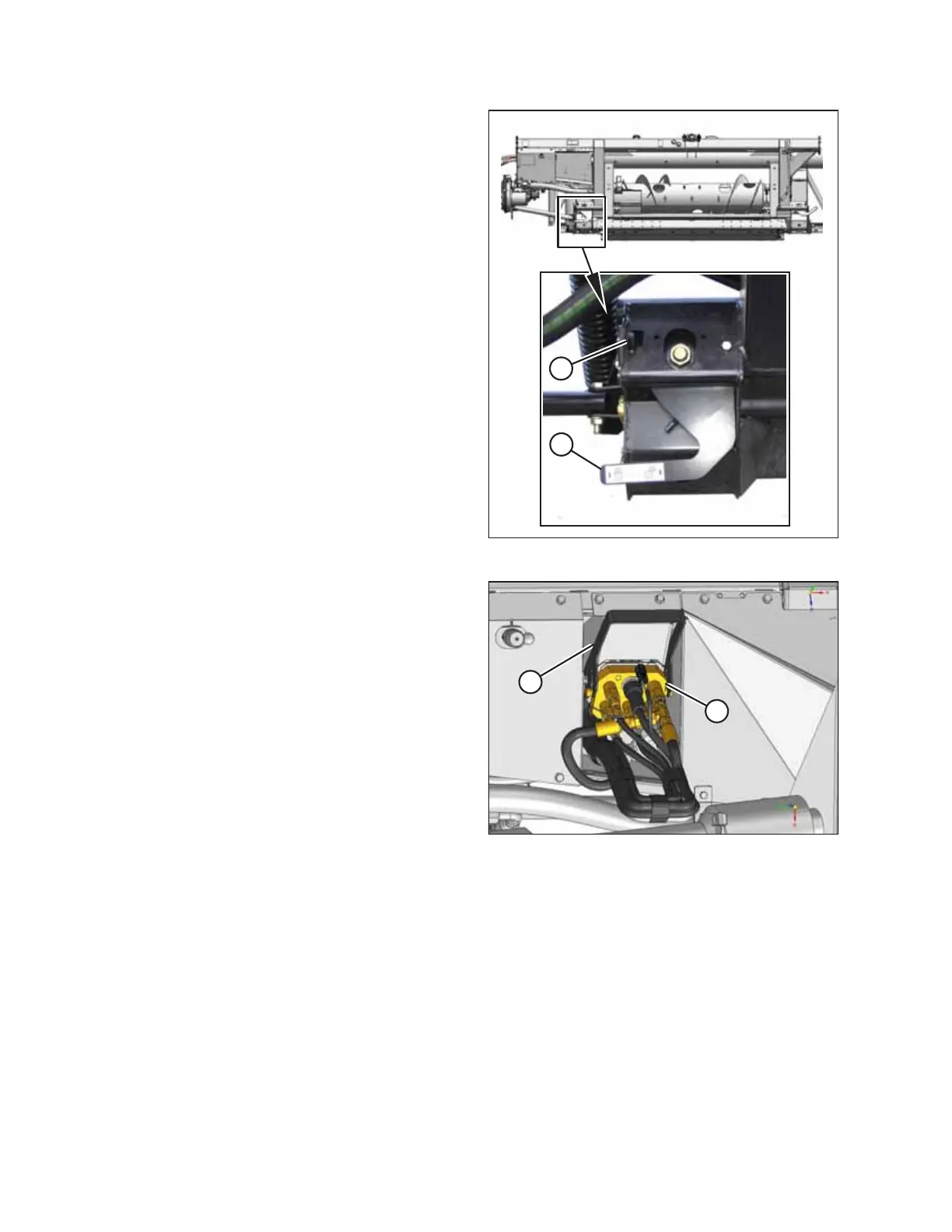

Figure 5.25: Float Lock in UNLOCK Position
9. Disengage each adapter float lock by moving latch (A) away
from the adapter and moving both header float lock
levers (B) down (UNLOCK position).
1001479
B
A
Figure 5.26: Adapter Multicoupler
10. Raise handle (A) to release multicoupler (B) from the
adapter.
