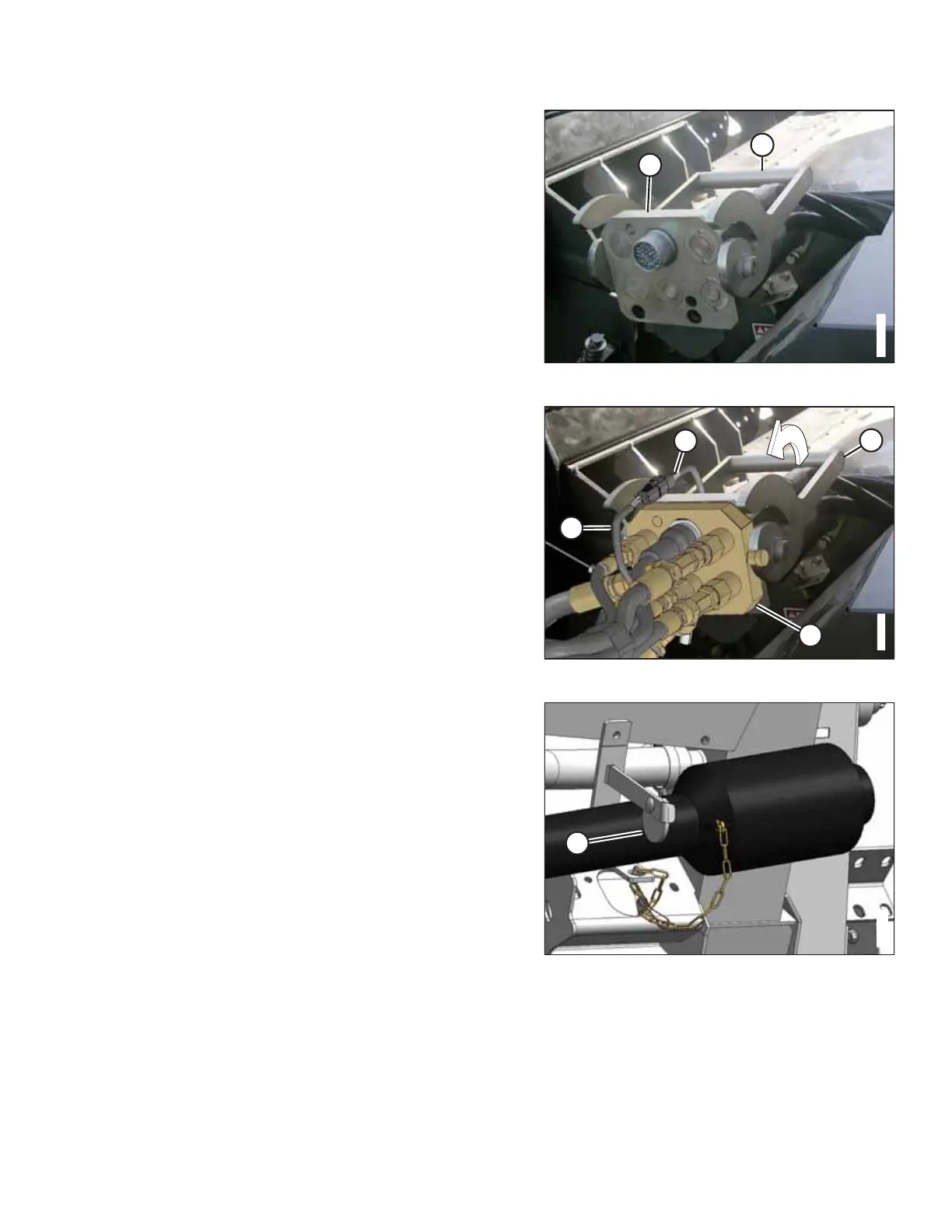

Figure 5.27: Combine Receptacle
11. Push handle (A) on the combine to the fully open position.
12. Clean the mating surfaces of multicoupler (B) and the
receptacle.
Figure 5.28: Multicoupler
13. Position multicoupler (A) onto the combine receptacle, and
pull handle (B) to engage the multicoupler into the
receptacle.
14. Connect reel fore-aft/header tilt selector harness (C) to
combine harness (D).
Figure 5.29: Driveline
15. Rotate disc (A) on the adapter driveline storage hook, and
remove the driveline from the hook.
HEADER ATTACHMENT/DETACHMENT
