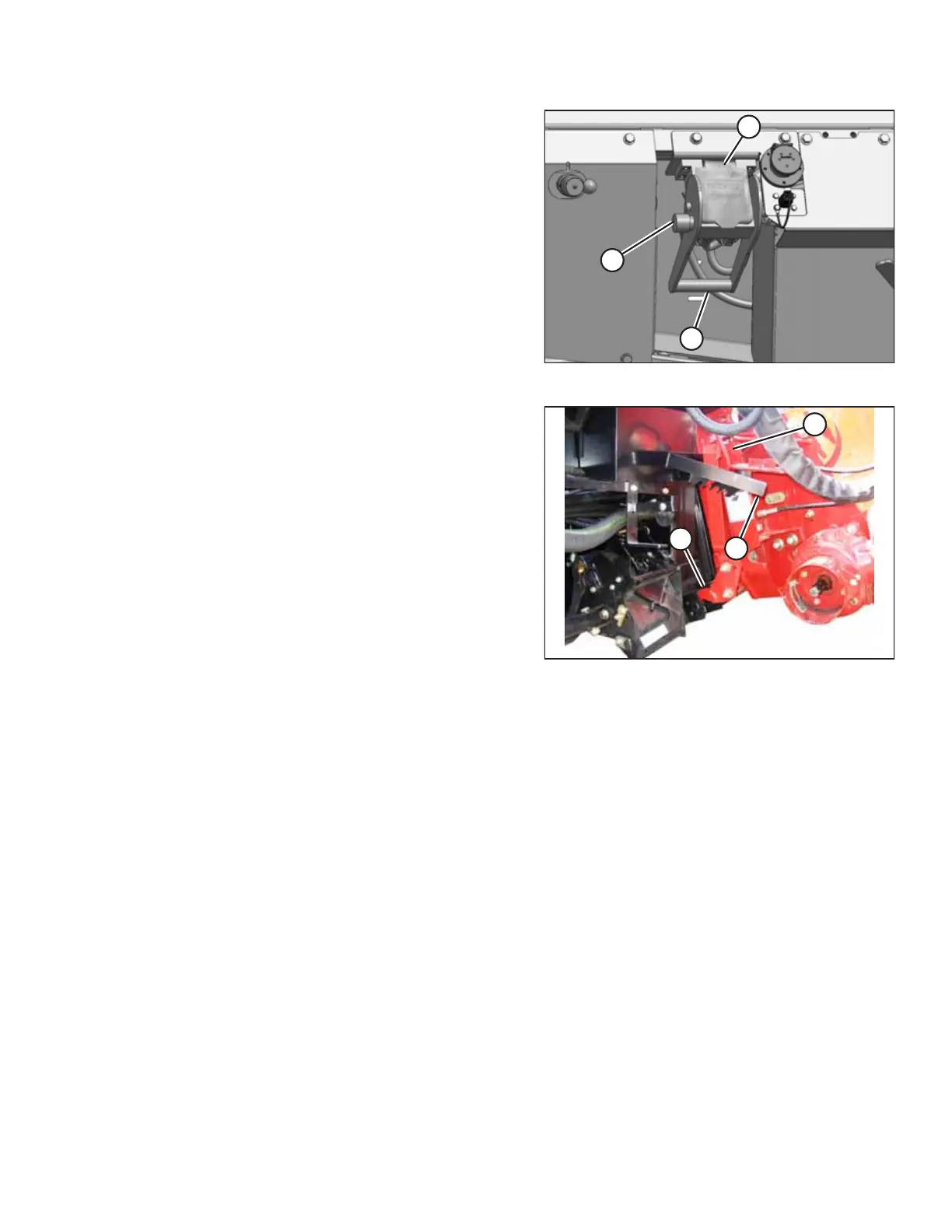

Figure 5.18: Adapter Receptacle
10. Push handle (A) on the adapter receptacle to the closed
position until lock button (B) snaps out. Close cover (C).
Figure 5.19: Feeder House Locks
11. Lift lever (A) and pull and lower handle (B) to disengage
feeder house/adapter lock (C).
12. Lower the feeder house from the combine cab until it
disengages the adapter support.
13. Back the combine away slowly from the adapter.
