MacDon FlexDraper FD75 - Page 314

214323 296 Revision B
1002507
B
A

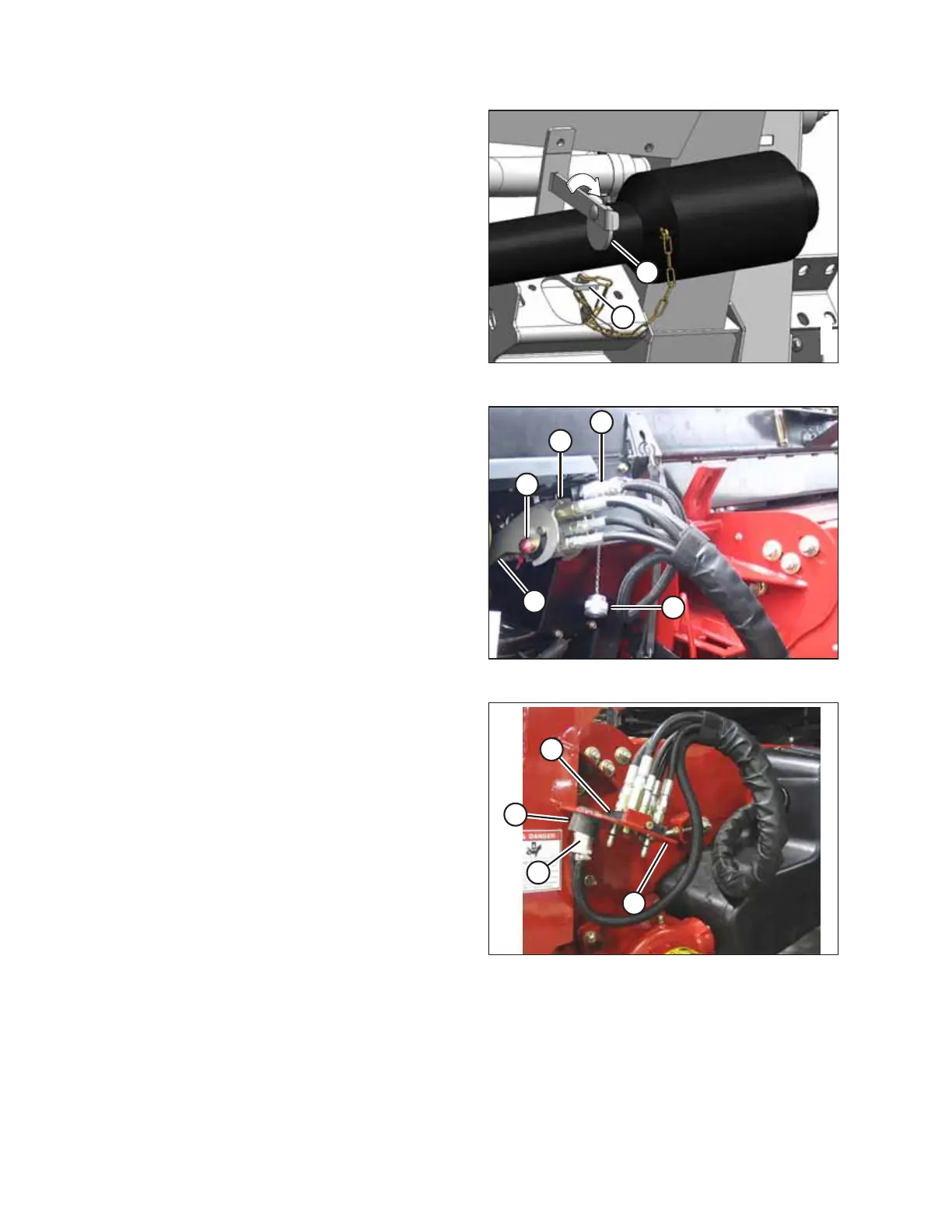

Figure 5.15: Driveline
5. Slide the driveline into hook (A) until disc (B) drops.
1009373
A
B
C
D
E
Figure 5.16: Multicoupler
6. Remove electrical connector (A) and replace cover (B).
7. Push in lock button (C) and pull handle (D) to release
multicoupler (E).
1002533
A
B
C
D
Figure 5.17: Multicoupler Storage
8. Place multicoupler (A) onto storage plate (B) on the
combine.
9. Place electrical connector (C) in storage cup (D).
HEADER ATTACHMENT/DETACHMENT
