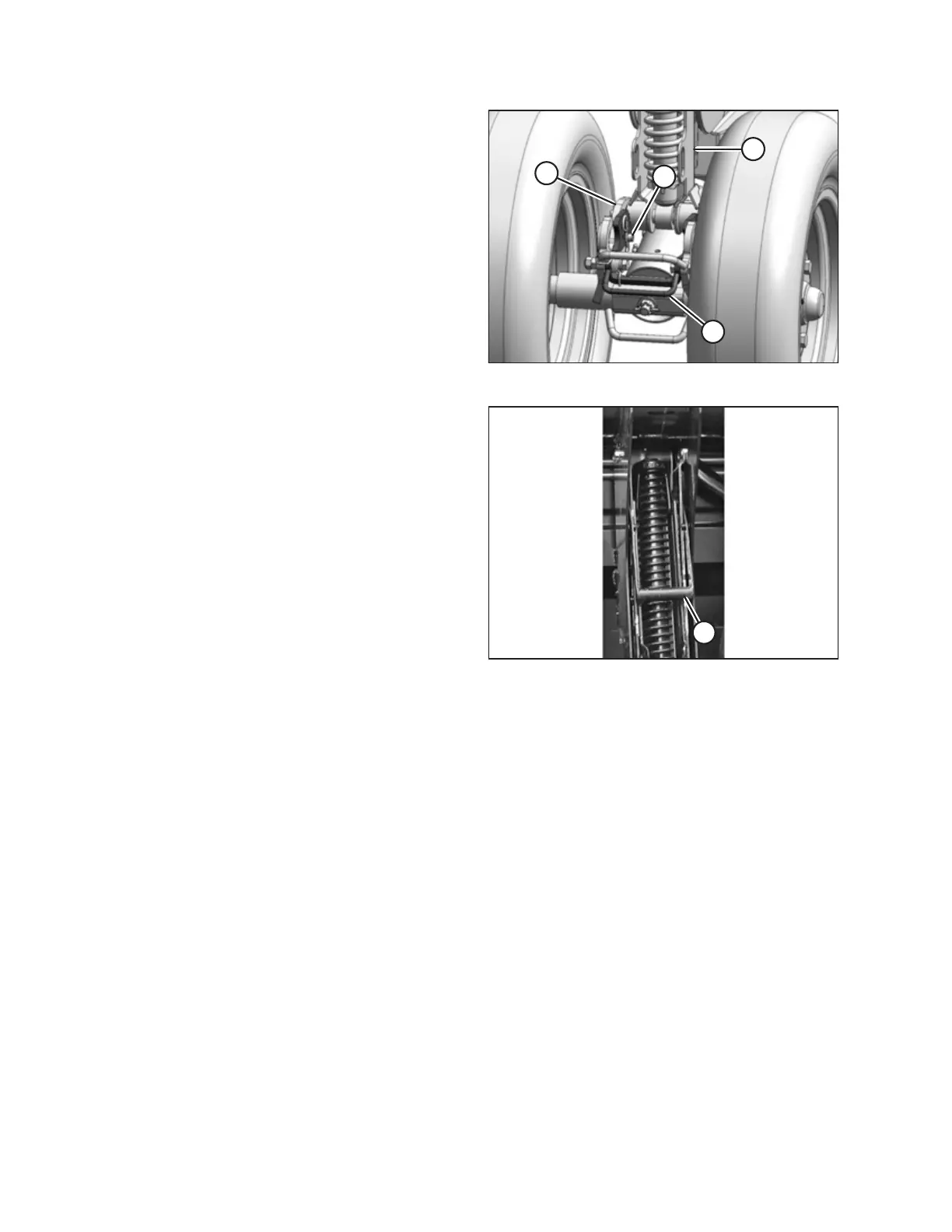

Figure 3.159: Left Front Wheels
5. Remove the hairpin and clevis pin (A).
6. Pull latch handle (B) to release suspension linkage (C), and
pull the suspension linkage away from spindle (D).
7. Lower the wheels slowly.
1005665
B
Figure 3.160: Locking Linkage
8. Lower handle (B) to lock the linkage.
