MacDon FlexDraper FD75 - Page 145

214323 127 Revision B
1004715
A
B

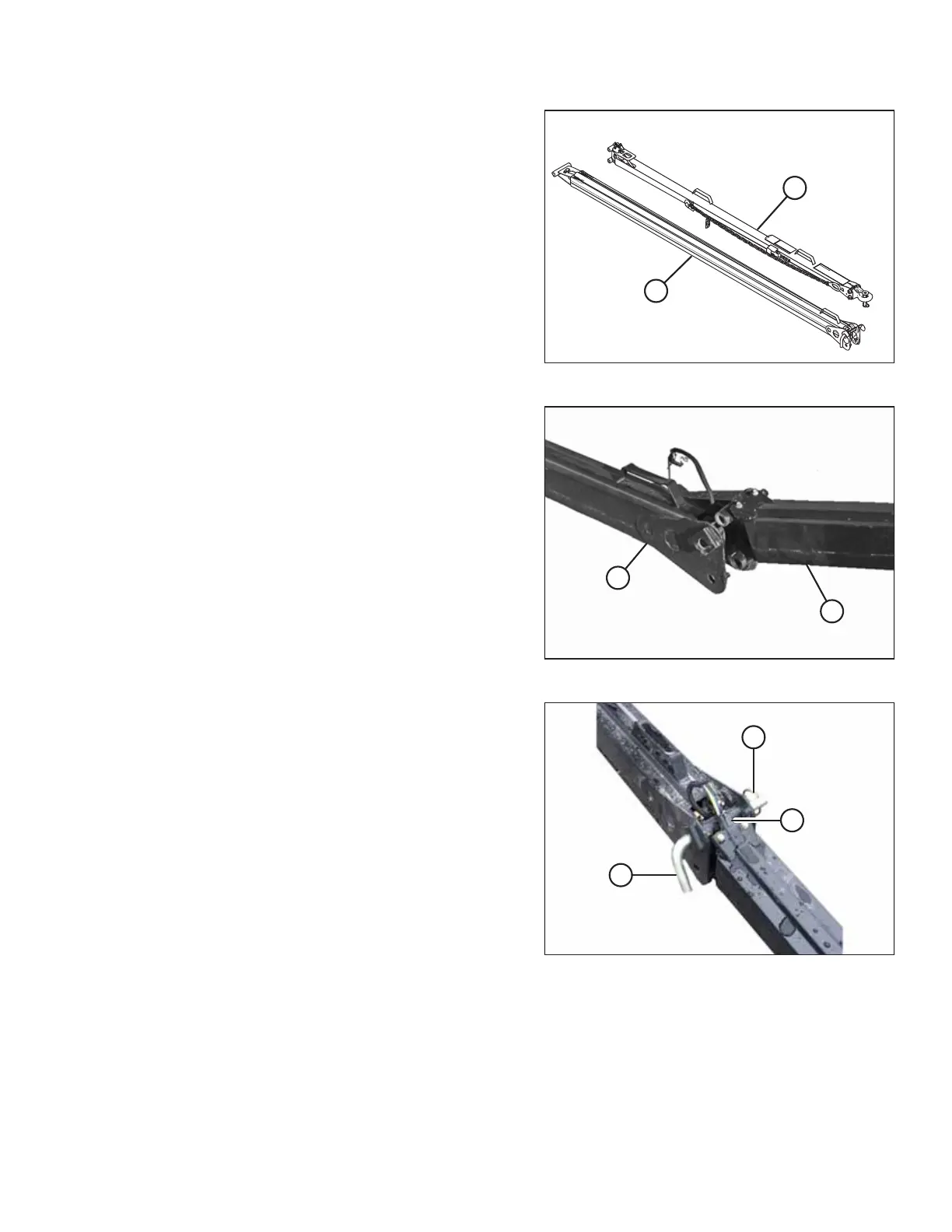

Figure 3.170: Tow-Bar Assembly
8. Connect outer half (B) of the tow-bar to inner half (A).
100071510007151000715
A
B
Figure 3.171: Tow-Bar Assembly
9. Lift outer half (B) and insert it into inner half (A).
1010274
A
B
C
Figure 3.172: Tow-Bar Assembly
10. Secure the two halves together with L-pin (A) and then turn
to lock. Secure the L-pin with ring (B).
11. Connect the electrical harness to connector (C).
OPERATION
