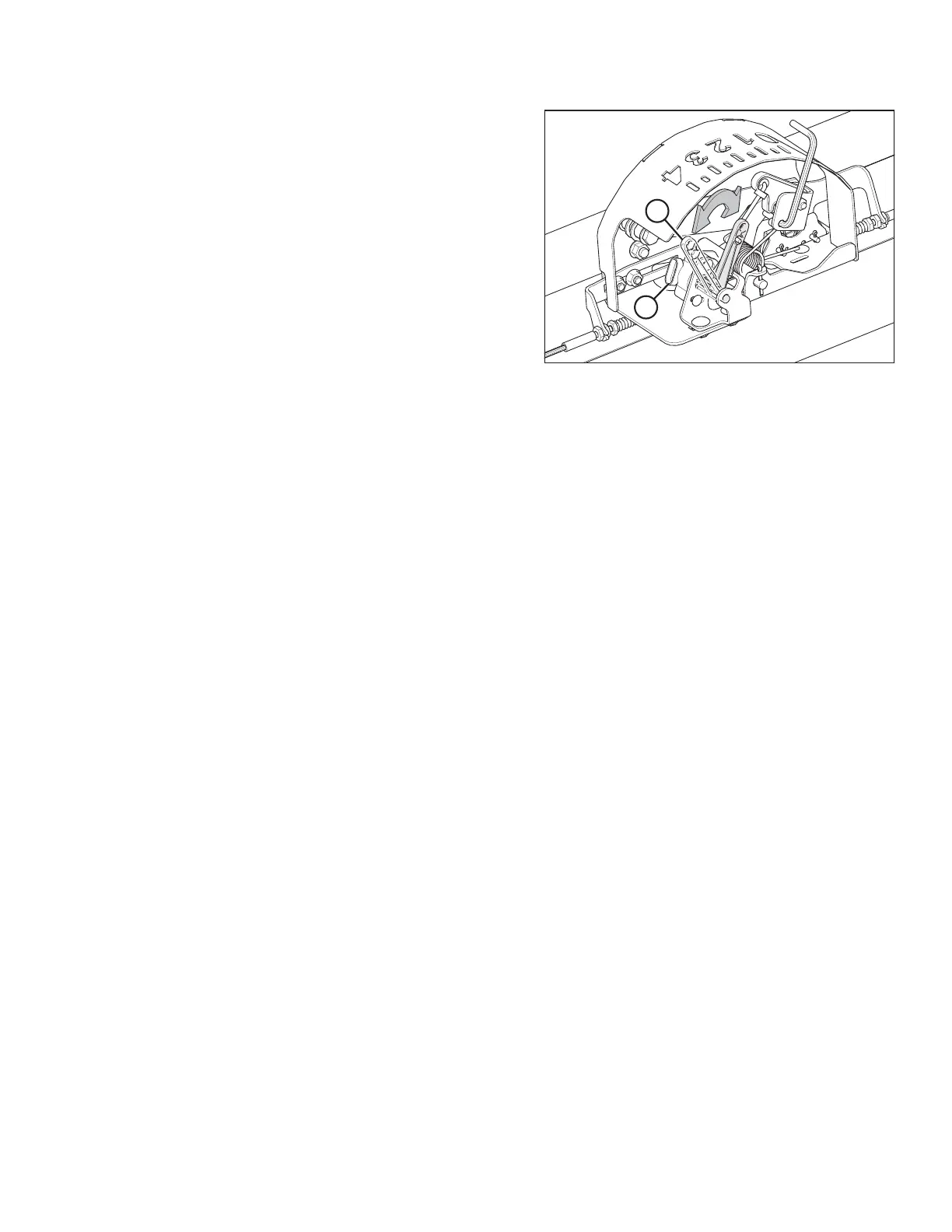

Figure 4.6: AHHC Sensor Range
7. Ensure linkage (A) operates freely (arrow indicates
approximate range).
8. Reconnect the wiring harness to plug (B) on the sensor.
9. Check the voltage range of the new sensor, and adjust it if
necessary. For instructions, refer to the following
procedures:
• 4.4.1 Manually Checking Voltage Range, page 135
• 4.4.2 Adjusting Voltage Limits, page 137
