214323 160 Revision B

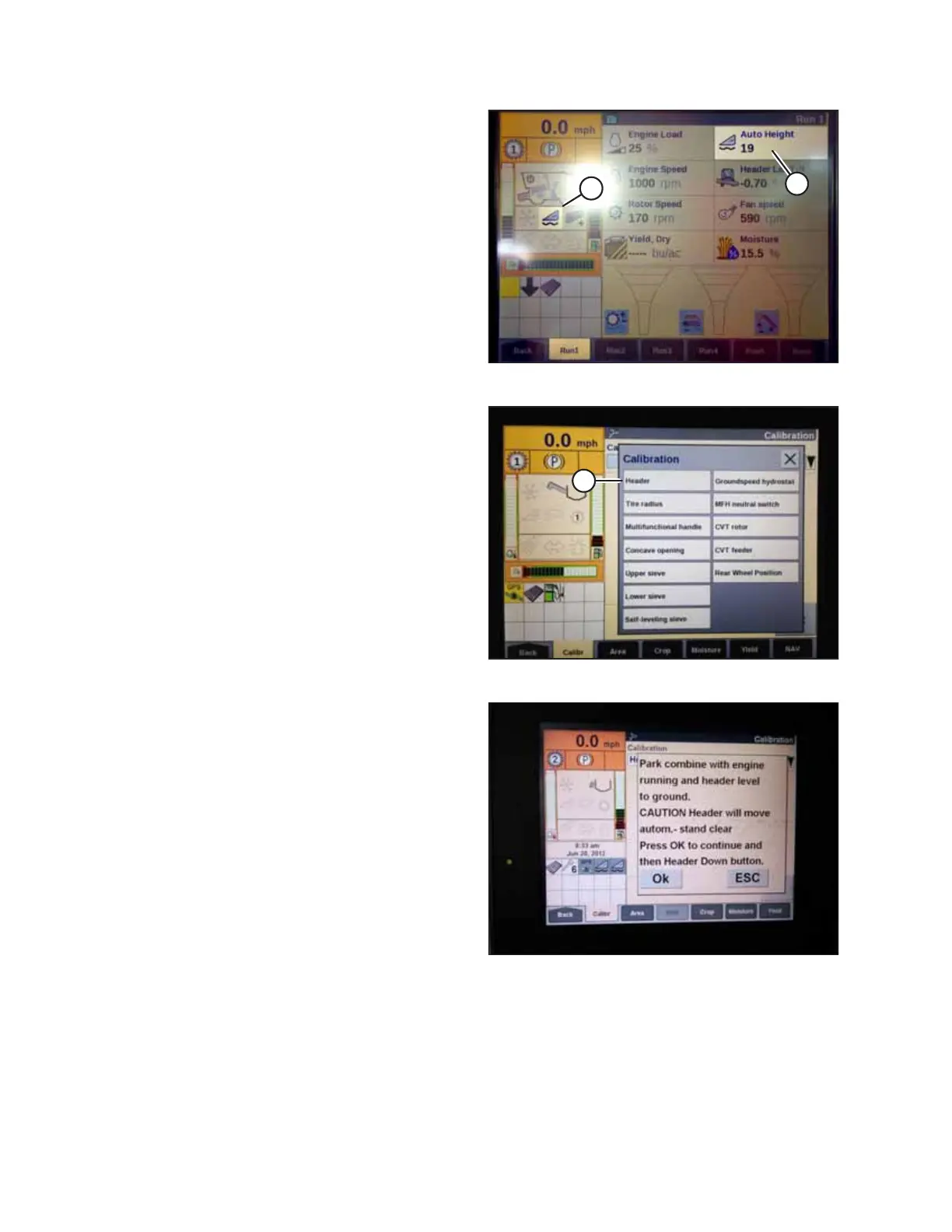

Figure 4.63: Case IH Combine Display
8. Engage the separator and the header and press preset 1 or
preset 2.
9. Ensure that AUTO HEIGHT icon (A) appears on the display
and can be seen at location (B) as shown. When the header
is set for cutting on the ground, this step verifies that the
combine is using the potentiometer on the header correctly
to sense the ground pressure.
NOTE:
AUTO HEIGHT field (B) may appear on any of the RUN tabs
and not necessarily on the RUN 1 tab.
Figure 4.64: Case IH Combine Display
10. Select CALIBRATION on the combine display and press the
right arrow navigation key to enter the information box.
11. Select HEADER (A) and press ENTER. The CALIBRATION
dialog box opens.
NOTE:
You can use the up and down navigation keys to move
between the options.
Figure 4.65: Case IH Combine Display
12. Follow the calibration steps in the order in which they
appear in the dialog box. As you proceed through the
calibration process, the display will automatically update to
show the next step in the procedure.
NOTE:
The calibration procedure will stop if the system sits idle for
more than 3 minutes or if the ESC key is pressed during
any step.
NOTE:
Refer to your combine operator’s manual for an
explanation of any error codes encountered.
AUTO HEADER HEIGHT CONTROL
