214323 191 Revision B

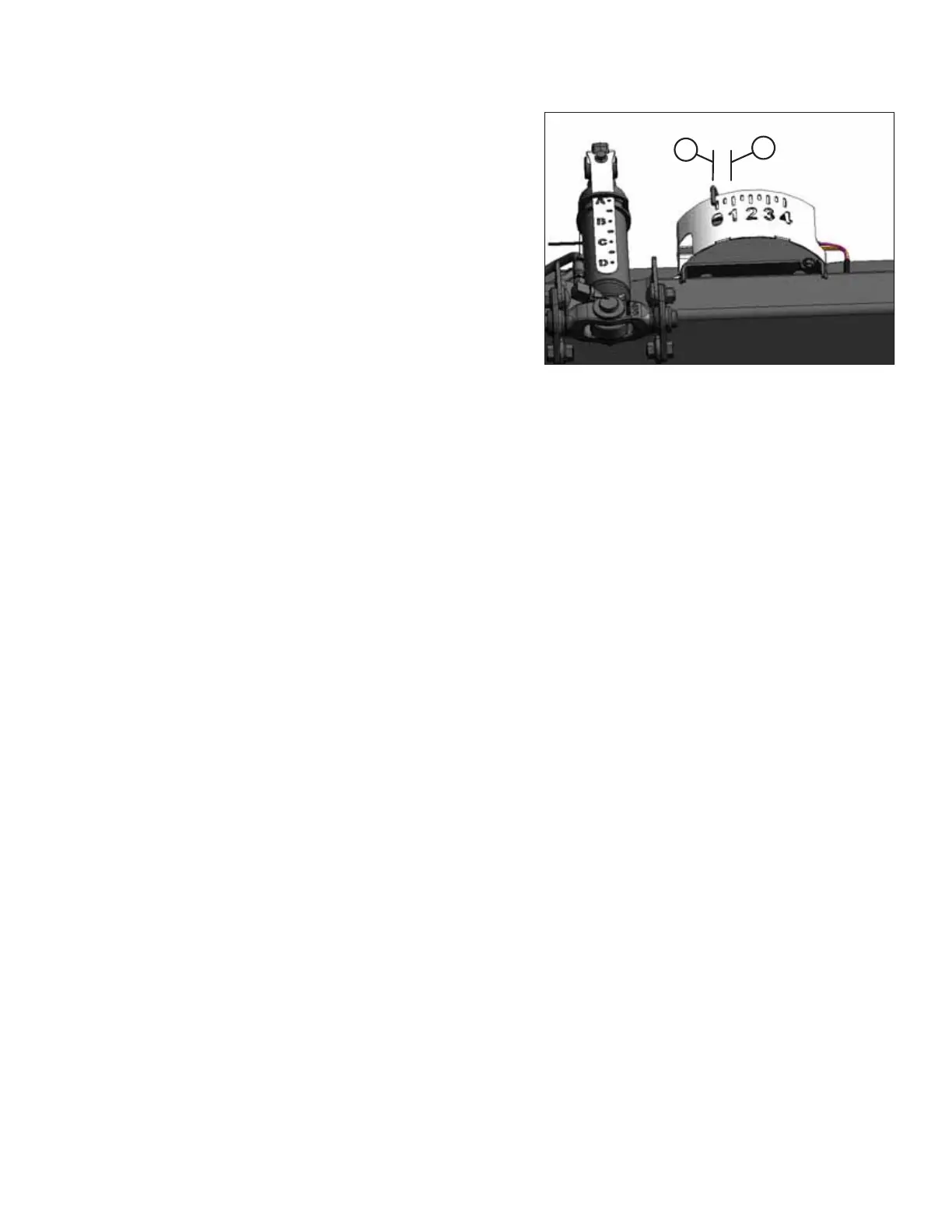

Figure 4.128: Float Indicator Box
NOTE:
The ideal ground pressure—in most cases—is one number
(on float indicator box) above the header suspended off
the ground. For example, if the float indicator pointer is
positioned at 0 (A) with the header suspended off the
ground, then the ideal ground pressure will be achieved
with the pointer positioned at 1 (B). Operating the header
with heavier pressures can wear the cutterbar wearplate
prematurely.
AUTO HEADER HEIGHT CONTROL
